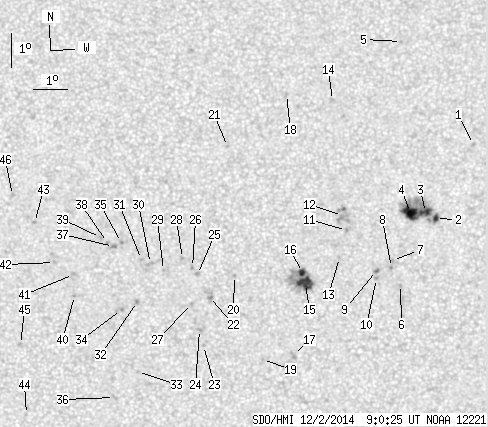

SDO HMI 2014-12-02 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.41 | 174.66 | 18.13 | 86.95 | 4.51 | 84.30 | 2.07 | 291.71 | 0.0941 | -191.0 | -192.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-02 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.86 | 7.63 | 89.42 | 7.19 | 314.11 | 0.1736 | -933.0 | -674.2 | |
| 2.48 | 52.63 | 1.24 | 26.29 | 5.43 | 88.25 | 6.02 | 308.19 | 0.1335 | -1054.7 | -629.5 | |
| 5.90 | -2.00 | 2.95 | -2.00 | 5.61 | 87.95 | 5.73 | 310.65 | 0.1315 | -1219.7 | 999999 | |
| 12.99 | -2.00 | 6.48 | -2.00 | 5.61 | 87.50 | 5.28 | 312.96 | 0.1257 | -1288.1 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 10.71 | 87.31 | 5.08 | 333.36 | 0.1950 | -825.0 | -718.3 | |
| 0.00 | 0.60 | 0.00 | 0.30 | 3.48 | 87.19 | 4.96 | 299.14 | 0.0993 | -982.0 | -818.9 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 4.19 | 86.95 | 4.73 | 306.35 | 0.1026 | -1053.0 | -740.4 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 3.99 | 86.92 | 4.70 | 304.85 | 0.1001 | -1112.0 | -886.4 | |
| 0.00 | 2.31 | 0.00 | 1.15 | 3.90 | 86.48 | 4.25 | 306.81 | 0.0929 | -1181.0 | -1027.2 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 3.66 | 86.48 | 4.25 | 304.71 | 0.0904 | -1040.0 | -791.0 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 5.08 | 85.59 | 3.37 | 322.40 | 0.0964 | -1051.0 | -929.9 | |
| 0.00 | 14.53 | 0.00 | 7.23 | 5.53 | 85.48 | 3.25 | 326.00 | 0.1015 | -860.0 | -765.1 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 4.28 | 85.38 | 3.16 | 318.52 | 0.0833 | -852.0 | -748.3 | |
| 0.00 | 2.39 | 0.00 | 1.20 | 8.95 | 85.21 | 2.98 | 340.24 | 0.1527 | -642.0 | -589.8 | |
| 11.88 | 39.73 | 5.89 | 19.72 | 3.52 | 84.37 | 2.15 | 322.51 | 0.0617 | -1206.5 | -542.5 | |
| 3.16 | -15.00 | 1.57 | -15.00 | 3.84 | 84.28 | 2.06 | 326.63 | 0.0654 | -1130.1 | 999999 | |
| 0.00 | 3.76 | 0.00 | 1.86 | 1.39 | 84.01 | 1.78 | 290.44 | 0.0334 | -861.0 | -742.2 | |
| 0.00 | 1.88 | 0.00 | 0.94 | 9.13 | 83.83 | 1.61 | 349.27 | 0.1495 | -823.0 | -620.8 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 1.27 | 83.09 | 0.87 | 302.25 | 0.0180 | -828.0 | -684.7 | |
| 0.00 | 1.20 | 0.00 | 0.59 | 3.76 | 82.27 | 0.04 | 359.17 | 0.0531 | 928.0 | 717.1 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 7.58 | 82.06 | -0.16 | 1.33 | 0.1200 | -840.0 | -593.7 | |
| 0.00 | 6.24 | 0.00 | 3.09 | 3.14 | 81.53 | -0.70 | 16.10 | 0.0440 | 855.0 | 769.2 | |
| 0.00 | 0.77 | 0.00 | 0.38 | 1.69 | 81.35 | -0.88 | 42.24 | 0.0228 | 989.0 | 810.8 | |
| 0.00 | 2.22 | 0.00 | 1.10 | 2.16 | 81.23 | -0.99 | 34.64 | 0.0306 | 1014.0 | 797.0 | |
| 0.00 | 2.39 | 0.00 | 1.19 | 3.79 | 81.17 | -1.05 | 18.92 | 0.0567 | 834.0 | 591.8 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 4.00 | 81.02 | -1.20 | 20.11 | 0.0610 | 1048.0 | 856.4 | |
| 0.00 | 0.68 | 0.00 | 0.34 | 2.93 | 81.00 | -1.23 | 29.11 | 0.0443 | 1019.0 | 785.0 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 4.26 | 80.73 | -1.50 | 22.89 | 0.0673 | 900.0 | 693.9 | |
| 0.00 | 0.85 | 0.00 | 0.42 | 3.91 | 80.17 | -2.06 | 32.85 | 0.0664 | 874.0 | 641.0 | |
| 0.00 | 3.42 | 0.00 | 1.70 | 4.11 | 79.78 | -2.44 | 35.73 | 0.0732 | 839.0 | 727.8 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 4.23 | 79.51 | -2.71 | 37.63 | 0.0776 | 945.0 | 787.7 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 2.99 | 79.40 | -2.83 | 51.25 | 0.0635 | 1041.0 | 858.6 | |
| 0.00 | 1.20 | 0.00 | 0.59 | 0.92 | 79.40 | -2.83 | 86.00 | 0.0497 | 974.0 | 730.4 | |
| 0.00 | 1.20 | 0.00 | 0.59 | 2.75 | 78.92 | -3.30 | 58.37 | 0.0679 | 1072.0 | 870.7 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 4.74 | 78.92 | -3.31 | 39.40 | 0.0910 | 1108.0 | 927.9 | |
| 0.00 | 2.22 | 0.00 | 1.10 | 0.15 | 78.72 | -3.51 | 99.23 | 0.0623 | 790.0 | 652.7 | |
| 0.00 | 2.99 | 0.00 | 1.49 | 4.62 | 78.68 | -3.54 | 42.21 | 0.0921 | 1323.0 | 930.4 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 4.74 | 78.50 | -3.72 | 42.75 | 0.0958 | 1109.0 | 897.7 | |
| 0.00 | 1.88 | 0.00 | 0.94 | 4.89 | 78.29 | -3.93 | 43.27 | 0.1001 | 927.0 | 760.9 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 3.17 | 77.53 | -4.70 | 62.43 | 0.0927 | 884.0 | 701.6 | |
| 0.00 | 1.79 | 0.00 | 0.89 | 3.79 | 77.50 | -4.73 | 56.96 | 0.0986 | 954.0 | 806.7 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 4.15 | 76.93 | -5.30 | 57.03 | 0.1102 | 1018.0 | 715.6 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 5.33 | 76.33 | -5.90 | 51.86 | 0.1307 | 1079.0 | 842.7 | |
| 0.00 | 1.03 | 0.00 | 0.51 | -0.35 | 76.11 | -6.12 | 99.93 | 0.1087 | 750.0 | 604.2 | |
| 0.00 | 1.88 | 0.00 | 0.94 | 1.72 | 75.93 | -6.30 | 80.96 | 0.1115 | 806.0 | 563.2 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 6.13 | 75.66 | -6.56 | 50.32 | 0.1484 | 642.0 | 519.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
