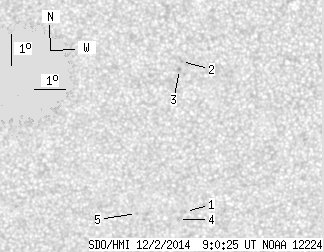

SDO HMI 2014-12-02 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.13 | 0.00 | 2.82 | -22.29 | 93.07 | 10.85 | 204.19 | 0.4297 | -766.2 | -623.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-02 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.71 | -23.73 | 93.61 | 11.39 | 203.60 | 0.4534 | -641.0 | -536.4 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -18.94 | 93.12 | 10.89 | 208.00 | 0.3825 | -763.0 | -697.9 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -19.19 | 93.07 | 10.85 | 207.57 | 0.3857 | -923.0 | -825.9 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -23.99 | 93.40 | 11.18 | 202.98 | 0.4557 | -837.0 | -581.5 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -23.78 | 92.01 | 9.78 | 200.55 | 0.4448 | -667.0 | -524.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
