SDO HMI 2014-12-02 10:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.71 | 0.00 | 9.80 | -5.84 | 98.24 | 16.56 | 246.23 | 0.3106 | 44.1 | 178.1 | |
|
previous
or next observation for the same group /

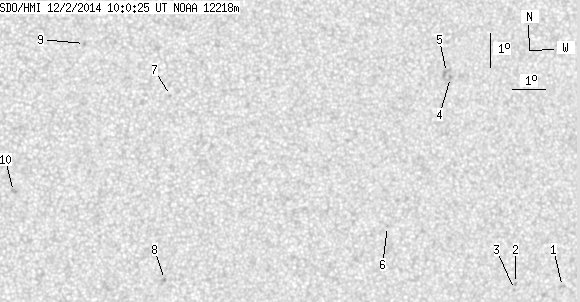

back to the solar disc SDO HMI 2014-12-02 10:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.39 | 0.00 | 1.32 | -9.60 | 105.43 | 23.75 | 245.84 | 0.4371 | 897.0 | 694.9 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -9.50 | 103.89 | 22.21 | 244.66 | 0.4144 | -761.0 | -699.7 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -9.68 | 103.87 | 22.19 | 244.24 | 0.4152 | -811.0 | -561.9 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -3.35 | 101.56 | 19.88 | 258.30 | 0.3482 | 806.0 | 678.8 | |
| 0.00 | 4.53 | 0.00 | 2.39 | -3.20 | 101.43 | 19.75 | 258.65 | 0.3456 | 982.0 | 778.3 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -7.77 | 99.72 | 18.04 | 244.39 | 0.3418 | 817.0 | 660.7 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -3.85 | 92.95 | 11.27 | 247.85 | 0.2115 | -686.0 | -596.6 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -9.33 | 92.89 | 11.21 | 227.74 | 0.2603 | 907.0 | 757.9 | |
| 0.00 | 2.05 | 0.00 | 1.03 | -2.30 | 90.35 | 8.67 | 250.79 | 0.1603 | -873.0 | -581.1 | |
| 0.00 | 2.48 | 0.00 | 1.25 | -6.68 | 88.27 | 6.59 | 221.51 | 0.1728 | -837.0 | -727.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
