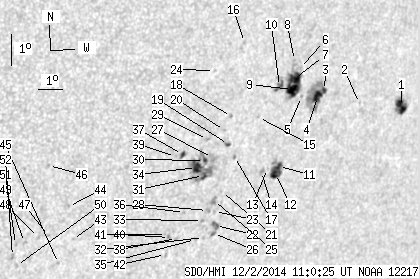

SDO HMI 2014-12-02 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.07 | 219.33 | 49.27 | 155.97 | -16.51 | 124.14 | 43.01 | 245.74 | 0.7191 | 214.2 | 48.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-02 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.06 | 16.57 | 7.15 | 13.07 | -15.49 | 130.26 | 49.12 | 249.33 | 0.7811 | 756.1 | 520.0 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -15.37 | 128.28 | 47.15 | 248.86 | 0.7602 | 411.0 | 322.0 | |
| 1.79 | 35.03 | 1.32 | 25.59 | -14.95 | 126.60 | 45.47 | 248.85 | 0.7409 | -573.3 | -393.3 | |
| 6.75 | -3.00 | 4.94 | -3.00 | -15.14 | 126.35 | 45.22 | 248.52 | 0.7386 | -944.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -15.13 | 125.65 | 44.52 | 248.28 | 0.7309 | 151.0 | 78.5 | |
| 0.00 | 1.62 | 0.00 | 1.16 | -14.27 | 125.34 | 44.21 | 249.32 | 0.7247 | -7.0 | 48.1 | |
| 10.08 | 33.66 | 7.22 | 24.10 | -14.57 | 125.21 | 44.07 | 248.86 | 0.7241 | 759.5 | 380.3 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -14.02 | 125.07 | 43.94 | 249.55 | 0.7208 | -125.0 | -77.9 | |
| 12.64 | -7.00 | 9.07 | -7.00 | -14.91 | 125.21 | 44.07 | 248.41 | 0.7252 | 692.4 | 999999 | |
| 2.82 | 8.12 | 2.00 | 5.76 | -14.81 | 124.63 | 43.50 | 248.33 | 0.7184 | 774.5 | 632.9 | |
| 3.84 | 17.09 | 2.79 | 12.41 | -17.29 | 125.27 | 44.14 | 245.31 | 0.7342 | 664.6 | 465.8 | |
| 6.66 | -11.00 | 4.84 | -11.00 | -17.50 | 125.21 | 44.07 | 245.00 | 0.7343 | 681.9 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -17.34 | 124.81 | 43.68 | 245.05 | 0.7295 | 490.0 | 490.7 | |
| 0.00 | 2.82 | 0.00 | 2.03 | -17.44 | 124.58 | 43.45 | 244.83 | 0.7273 | 828.0 | 657.0 | |
| 0.00 | 0.43 | 0.00 | 0.30 | -15.76 | 123.99 | 42.85 | 246.81 | 0.7145 | 521.0 | 444.2 | |
| 0.00 | 1.37 | 0.00 | 0.94 | -13.45 | 122.86 | 41.73 | 249.53 | 0.6933 | 454.0 | 360.2 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -16.96 | 123.30 | 42.17 | 244.92 | 0.7113 | 306.0 | 364.6 | |
| 0.00 | 1.28 | 0.00 | 0.89 | -15.71 | 122.85 | 41.72 | 246.40 | 0.7014 | 868.0 | 621.9 | |
| 0.77 | 2.39 | 0.54 | 1.67 | -16.58 | 122.95 | 41.82 | 245.27 | 0.7059 | -689.4 | -568.1 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -16.15 | 122.67 | 41.54 | 245.74 | 0.7010 | -372.0 | -247.3 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -18.04 | 123.07 | 41.93 | 243.37 | 0.7132 | 706.0 | 537.6 | |
| 0.00 | 4.36 | 0.00 | 3.09 | -19.11 | 123.14 | 42.00 | 242.01 | 0.7185 | 703.0 | 576.4 | |
| 0.00 | 1.28 | 0.00 | 0.90 | -18.67 | 122.96 | 41.83 | 242.50 | 0.7146 | 603.0 | 501.3 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -14.29 | 121.82 | 40.69 | 247.94 | 0.6841 | 367.0 | 490.7 | |
| 0.00 | 4.27 | 0.00 | 3.00 | -18.32 | 122.81 | 41.68 | 242.89 | 0.7116 | 841.0 | 714.9 | |
| 0.00 | 1.88 | 0.00 | 1.34 | -19.36 | 123.13 | 42.00 | 241.68 | 0.7195 | 623.0 | 509.4 | |
| 0.00 | 5.98 | 0.00 | 4.14 | -16.98 | 122.39 | 41.26 | 244.49 | 0.7013 | -51.0 | -26.1 | |
| 0.00 | 2.56 | 0.00 | 1.80 | -18.63 | 122.66 | 41.52 | 242.40 | 0.7112 | 778.0 | 656.8 | |
| 0.00 | 1.11 | 0.00 | 0.76 | -16.42 | 122.04 | 40.91 | 245.09 | 0.6949 | -587.0 | -440.3 | |
| 1.28 | 43.48 | 0.88 | 29.99 | -17.07 | 122.09 | 40.96 | 244.23 | 0.6982 | -609.5 | -305.3 | |
| 2.39 | -30.00 | 1.66 | -30.00 | -17.54 | 122.17 | 41.04 | 243.64 | 0.7011 | -541.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -19.48 | 122.75 | 41.62 | 241.33 | 0.7159 | 479.0 | 396.5 | |
| 0.00 | 1.11 | 0.00 | 0.78 | -18.95 | 122.54 | 41.41 | 241.94 | 0.7113 | 776.0 | 710.9 | |
| 8.37 | -30.00 | 5.76 | -30.00 | -17.28 | 121.82 | 40.69 | 243.81 | 0.6960 | -814.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.08 | -19.54 | 122.43 | 41.30 | 241.10 | 0.7128 | 547.0 | 522.9 | |
| 0.00 | 0.85 | 0.00 | 0.59 | -18.69 | 121.72 | 40.58 | 241.88 | 0.7011 | 644.0 | 512.8 | |
| 1.62 | 3.25 | 1.10 | 2.21 | -16.87 | 121.14 | 40.01 | 244.05 | 0.6866 | 590.5 | 420.4 | |
| 0.00 | 1.45 | 0.00 | 1.01 | -19.50 | 121.63 | 40.49 | 240.75 | 0.7039 | 656.0 | 482.5 | |
| 0.00 | 0.34 | 0.00 | 0.23 | -16.93 | 120.87 | 39.74 | 243.84 | 0.6838 | 517.0 | 448.8 | |
| 0.00 | 1.62 | 0.00 | 1.12 | -19.47 | 121.33 | 40.20 | 240.64 | 0.7005 | 676.0 | 591.4 | |
| 0.00 | 1.54 | 0.00 | 1.06 | -19.37 | 121.18 | 40.04 | 240.69 | 0.6984 | 482.0 | 552.7 | |
| 0.00 | 1.71 | 0.00 | 1.19 | -20.00 | 121.33 | 40.19 | 239.93 | 0.7031 | 607.0 | 571.2 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -19.49 | 117.45 | 36.32 | 238.42 | 0.6577 | -528.0 | -414.8 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -18.45 | 117.03 | 35.90 | 239.62 | 0.6471 | -578.0 | -473.5 | |
| 0.00 | 1.03 | 0.00 | 0.67 | -20.25 | 117.10 | 35.97 | 237.17 | 0.6582 | -704.0 | -626.1 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -17.16 | 115.98 | 34.84 | 240.81 | 0.6276 | -758.0 | -599.8 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -19.36 | 116.49 | 35.35 | 238.00 | 0.6460 | -708.0 | -565.1 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -19.42 | 116.12 | 34.98 | 237.68 | 0.6422 | -576.0 | -481.8 | |
| 0.00 | 1.28 | 0.00 | 0.82 | -19.57 | 115.62 | 34.49 | 237.14 | 0.6375 | -761.0 | -709.2 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -20.30 | 115.49 | 34.36 | 236.04 | 0.6406 | -525.0 | -407.2 | |
| 0.00 | 1.37 | 0.00 | 0.87 | -19.63 | 115.29 | 34.16 | 236.83 | 0.6341 | -712.0 | -561.9 | |
| 0.00 | 2.14 | 0.00 | 1.37 | -20.01 | 115.27 | 34.14 | 236.28 | 0.6362 | -737.0 | -643.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
