SDO HMI 2014-12-02 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.14 | 54.92 | 33.49 | 209.41 | 2.85 | 163.47 | 82.34 | 272.78 | 0.9915 | -104.5 | 50.2 | |
|
previous
or next observation for the same group /

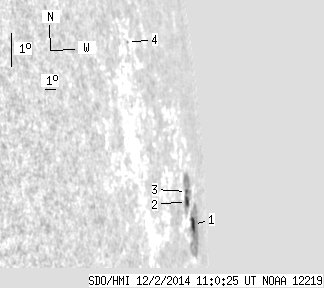

back to the solar disc SDO HMI 2014-12-02 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.61 | 32.63 | 18.09 | 133.81 | 2.53 | 163.97 | 82.84 | 272.46 | 0.9927 | 2.4 | 120.9 | |
| 2.99 | 21.61 | 10.14 | 74.28 | 3.23 | 162.66 | 81.53 | 273.16 | 0.9897 | -217.1 | -83.4 | |
| 1.54 | -2.00 | 5.26 | -2.00 | 3.52 | 162.78 | 81.65 | 273.46 | 0.9900 | -241.8 | 999999 | |
| 0.00 | 0.68 | 0.00 | 1.32 | 8.05 | 156.17 | 75.03 | 278.14 | 0.9675 | -173.0 | -177.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
