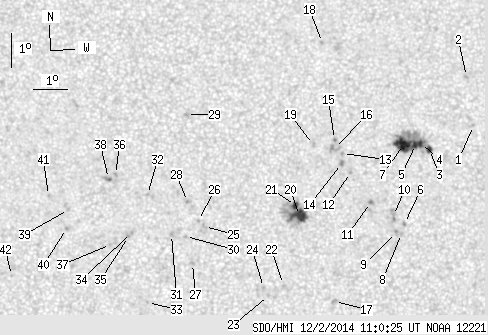

SDO HMI 2014-12-02 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.04 | 153.18 | 19.49 | 76.33 | 4.42 | 85.09 | 3.95 | 306.00 | 0.1039 | -442.8 | -353.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-02 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.47 | 6.19 | 89.62 | 8.49 | 303.05 | 0.1759 | -900.0 | -766.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 7.65 | 89.44 | 8.31 | 310.14 | 0.1882 | -806.0 | -653.1 | |
| 2.39 | 49.55 | 1.20 | 24.80 | 5.48 | 88.29 | 7.16 | 303.83 | 0.1500 | -1019.2 | -575.5 | |
| 2.82 | -3.00 | 1.41 | -3.00 | 5.66 | 88.02 | 6.89 | 305.84 | 0.1480 | -1132.9 | 999999 | |
| 3.59 | -3.00 | 1.80 | -3.00 | 5.63 | 87.87 | 6.74 | 306.27 | 0.1456 | -1189.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 3.29 | 87.52 | 6.39 | 292.05 | 0.1204 | -937.0 | -731.2 | |
| 15.97 | -3.00 | 7.99 | -3.00 | 5.63 | 87.52 | 6.38 | 307.77 | 0.1406 | -1236.4 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 3.00 | 87.43 | 6.30 | 289.98 | 0.1171 | -663.0 | -546.8 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 3.03 | 87.28 | 6.15 | 290.67 | 0.1149 | -997.0 | -884.8 | |
| 0.00 | 6.58 | 0.00 | 3.28 | 3.53 | 87.20 | 6.06 | 294.98 | 0.1169 | -1002.0 | -817.6 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 3.92 | 86.52 | 5.38 | 300.82 | 0.1095 | -1240.0 | -1050.4 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 4.81 | 85.93 | 4.80 | 310.57 | 0.1102 | -1048.0 | -803.8 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 5.37 | 85.69 | 4.56 | 315.69 | 0.1139 | -1018.0 | -795.6 | |
| 0.00 | 2.65 | 0.00 | 1.32 | 5.07 | 85.66 | 4.53 | 314.00 | 0.1099 | -1173.0 | -956.1 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 5.78 | 85.46 | 4.33 | 319.65 | 0.1165 | -1070.0 | -971.7 | |
| 0.00 | 5.72 | 0.00 | 2.85 | 5.52 | 85.46 | 4.33 | 318.12 | 0.1130 | -926.0 | -839.6 | |
| 0.00 | 2.65 | 0.00 | 1.32 | 0.99 | 85.43 | 4.30 | 273.68 | 0.0755 | -857.0 | -694.6 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 8.67 | 85.13 | 4.00 | 333.52 | 0.1553 | -857.0 | -687.2 | |
| 0.00 | 1.79 | 0.00 | 0.89 | 5.64 | 84.83 | 3.70 | 323.17 | 0.1077 | -882.0 | -689.8 | |
| 11.45 | 41.77 | 5.69 | 20.75 | 3.54 | 84.41 | 3.27 | 310.80 | 0.0756 | -1182.0 | -562.8 | |
| 2.82 | -20.00 | 1.40 | -20.00 | 3.83 | 84.29 | 3.16 | 314.70 | 0.0776 | -1216.8 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.21 | 1.50 | 83.92 | 2.79 | 285.63 | 0.0508 | -580.0 | -525.2 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 1.17 | 83.48 | 2.35 | 281.00 | 0.0419 | -885.0 | -630.5 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 1.41 | 83.33 | 2.20 | 287.48 | 0.0404 | -810.0 | -672.7 | |
| 0.00 | 2.31 | 0.00 | 1.14 | 3.22 | 81.59 | 0.46 | 349.62 | 0.0445 | 784.0 | 705.3 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 3.39 | 81.41 | 0.28 | 354.01 | 0.0472 | 883.0 | 671.1 | |
| 0.00 | 1.88 | 0.00 | 0.93 | 2.12 | 81.23 | 0.10 | 355.86 | 0.0247 | 977.0 | 821.0 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 3.96 | 81.09 | -0.04 | 0.78 | 0.0567 | 1008.0 | 837.4 | |
| 0.00 | 1.79 | 0.00 | 0.89 | 6.53 | 81.06 | -0.07 | 0.69 | 0.1018 | -964.0 | -749.4 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 2.92 | 81.03 | -0.10 | 2.71 | 0.0387 | 1041.0 | 796.0 | |
| 0.00 | 1.88 | 0.00 | 0.93 | 2.98 | 80.61 | -0.52 | 12.89 | 0.0407 | 864.0 | 712.1 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 4.16 | 79.90 | -1.23 | 19.58 | 0.0641 | 894.0 | 666.5 | |
| 0.00 | 0.77 | 0.00 | 0.38 | 0.97 | 79.90 | -1.23 | 78.35 | 0.0220 | 905.0 | 710.9 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 3.04 | 79.43 | -1.70 | 36.20 | 0.0505 | 1054.0 | 838.5 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 2.92 | 79.34 | -1.79 | 39.05 | 0.0498 | 1069.0 | 859.1 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 4.76 | 78.95 | -2.18 | 28.26 | 0.0804 | 1043.0 | 870.1 | |
| 0.00 | 0.77 | 0.00 | 0.38 | 2.69 | 78.81 | -2.32 | 49.69 | 0.0534 | 970.0 | 724.1 | |
| 0.00 | 3.25 | 0.00 | 1.61 | 4.64 | 78.75 | -2.39 | 31.24 | 0.0804 | 1065.0 | 991.7 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 3.72 | 77.56 | -3.57 | 49.84 | 0.0817 | 1005.0 | 763.1 | |
| 0.00 | 1.20 | 0.00 | 0.59 | 3.16 | 77.51 | -3.63 | 55.99 | 0.0766 | 849.0 | 723.1 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 4.14 | 76.97 | -4.16 | 50.52 | 0.0943 | 954.0 | 734.0 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 1.77 | 75.88 | -5.26 | 78.62 | 0.0938 | 948.0 | 665.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
