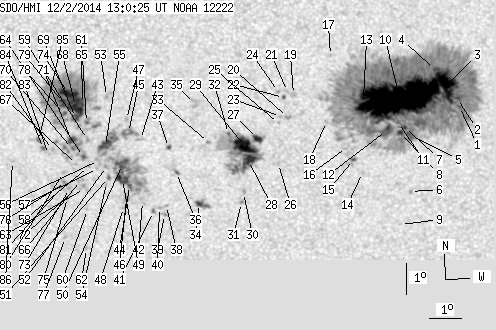

SDO HMI 2014-12-02 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 369.68 | 1690.30 | 196.78 | 900.07 | -19.97 | 84.13 | 4.09 | 190.71 | 0.3685 | 552.8 | 119.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-02 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.28 | 1074.55 | 0.69 | 571.85 | -19.79 | 88.98 | 8.94 | 202.66 | 0.3810 | 545.5 | 403.6 | |
| 1.37 | -1.00 | 0.73 | -1.00 | -19.54 | 88.90 | 8.86 | 202.76 | 0.3768 | 758.6 | 999999 | |
| 30.41 | -1.00 | 16.19 | -1.00 | -19.09 | 88.53 | 8.49 | 202.38 | 0.3679 | 1262.1 | 999999 | |
| 2.22 | -1.00 | 1.18 | -1.00 | -18.62 | 88.12 | 8.09 | 201.94 | 0.3584 | 1241.6 | 999999 | |
| 3.67 | -1.00 | 1.97 | -1.00 | -20.70 | 87.46 | 7.43 | 198.33 | 0.3862 | 59.7 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -22.49 | 87.55 | 7.52 | 197.06 | 0.4138 | -683.0 | -596.5 | |
| 1.96 | -1.00 | 1.05 | -1.00 | -20.45 | 87.26 | 7.22 | 198.08 | 0.3813 | 714.9 | 999999 | |
| 2.56 | -1.00 | 1.37 | -1.00 | -20.60 | 87.14 | 7.10 | 197.66 | 0.3831 | 733.4 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -23.56 | 87.29 | 7.25 | 195.72 | 0.4287 | 665.0 | 458.3 | |
| 188.16 | -1.00 | 100.08 | -1.00 | -19.50 | 87.06 | 7.02 | 198.45 | 0.3657 | 1641.0 | 999999 | |
| 1.11 | -1.00 | 0.59 | -1.00 | -20.29 | 87.06 | 7.02 | 197.75 | 0.3779 | 488.8 | 999999 | |
| 8.46 | -1.00 | 4.52 | -1.00 | -20.54 | 86.69 | 6.65 | 196.67 | 0.3800 | 309.4 | 999999 | |
| 1.96 | -1.00 | 1.04 | -1.00 | -19.53 | 85.92 | 5.89 | 195.62 | 0.3607 | 1438.3 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -21.88 | 85.98 | 5.95 | 194.05 | 0.3976 | 647.0 | 536.9 | |
| 0.94 | 5.12 | 0.50 | 2.76 | -21.46 | 85.68 | 5.64 | 193.63 | 0.3900 | 563.2 | 594.2 | |
| 0.00 | 3.42 | 0.00 | 1.83 | -21.08 | 85.44 | 5.40 | 193.32 | 0.3831 | 348.0 | 93.6 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -18.17 | 84.85 | 4.81 | 193.83 | 0.3348 | 943.0 | 661.2 | |
| 0.00 | 2.05 | 0.00 | 1.09 | -20.25 | 84.78 | 4.74 | 192.24 | 0.3677 | 931.0 | 556.8 | |
| 0.00 | 3.42 | 0.00 | 1.81 | -19.39 | 83.72 | 3.68 | 189.99 | 0.3506 | -48.0 | 36.2 | |
| 0.00 | 2.39 | 0.00 | 1.27 | -20.12 | 83.55 | 3.51 | 189.18 | 0.3618 | -953.0 | -780.0 | |
| 0.00 | 1.79 | 0.00 | 0.95 | -19.30 | 83.53 | 3.49 | 189.54 | 0.3486 | -700.0 | -542.2 | |
| 0.43 | 1.37 | 0.23 | 0.72 | -19.49 | 83.41 | 3.37 | 189.12 | 0.3513 | -797.0 | -729.9 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -20.09 | 83.33 | 3.29 | 188.62 | 0.3608 | -906.0 | -752.6 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -19.30 | 83.25 | 3.21 | 188.78 | 0.3478 | -927.0 | -842.8 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -20.31 | 83.27 | 3.23 | 188.38 | 0.3642 | -693.0 | -563.0 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -21.58 | 83.29 | 3.26 | 187.92 | 0.3847 | 787.0 | 636.6 | |
| 4.70 | 112.49 | 2.50 | 60.09 | -20.78 | 82.61 | 2.57 | 186.54 | 0.3705 | 1057.7 | 459.5 | |
| 11.87 | -27.00 | 6.36 | -27.00 | -21.48 | 82.34 | 2.30 | 185.64 | 0.3813 | 865.8 | 999999 | |
| 21.78 | -27.00 | 11.62 | -27.00 | -21.01 | 82.20 | 2.17 | 185.45 | 0.3734 | 1279.4 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -22.51 | 82.19 | 2.15 | 185.03 | 0.3976 | 865.0 | 702.2 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -22.83 | 82.13 | 2.10 | 184.82 | 0.4026 | 835.0 | 744.5 | |
| 0.43 | -27.00 | 0.23 | -27.00 | -20.62 | 81.69 | 1.66 | 184.25 | 0.3665 | 990.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -20.91 | 81.06 | 1.02 | 182.60 | 0.3705 | 747.0 | 484.7 | |
| 2.31 | 7.69 | 1.25 | 4.16 | -22.86 | 80.79 | 0.75 | 181.72 | 0.4019 | -987.5 | -755.7 | |
| 0.00 | 4.87 | 0.00 | 2.57 | -19.67 | 80.62 | 0.58 | 181.56 | 0.3500 | 633.0 | 636.0 | |
| 0.68 | 2.39 | 0.37 | 1.28 | -21.86 | 80.05 | 0.01 | 180.03 | 0.3856 | 887.6 | 715.8 | |
| 0.94 | 2.48 | 0.50 | 1.32 | -21.07 | 79.80 | -0.24 | 179.39 | 0.3727 | 875.8 | 733.5 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -22.93 | 79.73 | -0.31 | 179.29 | 0.4027 | -645.0 | -566.6 | |
| 0.00 | 2.22 | 0.00 | 1.20 | -23.22 | 79.66 | -0.38 | 179.15 | 0.4074 | -796.0 | -586.2 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -22.99 | 79.50 | -0.54 | 178.77 | 0.4038 | -711.0 | -487.9 | |
| 0.00 | 2.14 | 0.00 | 1.16 | -23.12 | 79.31 | -0.73 | 178.34 | 0.4060 | -872.0 | -724.4 | |
| 0.00 | 3.59 | 0.00 | 1.94 | -22.80 | 78.96 | -1.08 | 177.51 | 0.4010 | -453.0 | -345.5 | |
| 0.00 | 2.90 | 0.00 | 1.55 | -20.81 | 78.91 | -1.13 | 177.14 | 0.3690 | -465.0 | -303.6 | |
| 1.20 | 85.50 | 0.64 | 45.89 | -22.28 | 78.55 | -1.49 | 176.48 | 0.3931 | -871.1 | -483.2 | |
| 0.00 | 11.36 | 0.00 | 6.04 | -20.59 | 78.54 | -1.50 | 176.14 | 0.3657 | -362.0 | -405.1 | |
| 0.00 | 4.36 | 0.00 | 2.35 | -22.70 | 78.45 | -1.59 | 176.31 | 0.3999 | -796.0 | -649.6 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -20.18 | 78.48 | -1.56 | 175.90 | 0.3591 | -780.0 | -644.5 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -22.99 | 78.35 | -1.69 | 176.13 | 0.4046 | -464.0 | -522.9 | |
| 8.11 | -44.00 | 4.36 | -44.00 | -22.09 | 78.33 | -1.71 | 175.92 | 0.3902 | -977.3 | 999999 | |
| 8.54 | -44.00 | 4.58 | -44.00 | -21.61 | 78.33 | -1.70 | 175.83 | 0.3825 | -950.6 | 999999 | |
| 0.34 | 1.71 | 0.18 | 0.92 | -22.02 | 77.88 | -2.16 | 174.84 | 0.3897 | -856.0 | -737.4 | |
| 0.00 | 2.65 | 0.00 | 1.42 | -21.67 | 77.82 | -2.21 | 174.61 | 0.3842 | -932.0 | -723.8 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -19.45 | 77.86 | -2.18 | 174.06 | 0.3481 | -962.0 | -782.1 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -22.18 | 77.81 | -2.22 | 174.73 | 0.3924 | -760.0 | -547.8 | |
| 7.52 | 29.38 | 4.01 | 15.67 | -21.00 | 77.80 | -2.24 | 174.38 | 0.3734 | -1110.0 | -838.3 | |
| 0.00 | 2.82 | 0.00 | 1.51 | -21.48 | 77.57 | -2.47 | 173.95 | 0.3815 | -877.0 | -789.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -21.73 | 77.54 | -2.50 | 173.94 | 0.3857 | -643.0 | -545.4 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -21.67 | 77.25 | -2.79 | 173.23 | 0.3851 | -756.0 | -715.0 | |
| 0.00 | 2.48 | 0.00 | 1.32 | -20.81 | 77.24 | -2.80 | 172.90 | 0.3713 | -882.0 | -733.7 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -23.05 | 77.19 | -2.85 | 173.52 | 0.4073 | -648.0 | -455.4 | |
| 0.68 | 258.62 | 0.36 | 137.01 | -20.27 | 77.21 | -2.82 | 172.65 | 0.3626 | -999.8 | -581.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -24.32 | 77.13 | -2.91 | 173.76 | 0.4275 | -771.0 | -582.8 | |
| 0.00 | 4.53 | 0.00 | 2.44 | -22.38 | 77.11 | -2.93 | 173.13 | 0.3967 | -612.0 | -604.0 | |
| 1.20 | -61.00 | 0.64 | -61.00 | -21.35 | 77.10 | -2.94 | 172.75 | 0.3803 | -997.4 | 999999 | |
| 2.14 | -61.00 | 1.13 | -61.00 | -19.67 | 77.10 | -2.94 | 172.11 | 0.3532 | -1135.0 | 999999 | |
| 0.00 | 3.84 | 0.00 | 2.07 | -22.12 | 76.99 | -3.05 | 172.75 | 0.3928 | -954.0 | -754.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -21.61 | 76.87 | -3.17 | 172.29 | 0.3849 | -873.0 | -708.1 | |
| 19.56 | -61.00 | 10.36 | -61.00 | -19.73 | 76.88 | -3.16 | 171.56 | 0.3547 | -1222.9 | 999999 | |
| 4.44 | -61.00 | 2.36 | -61.00 | -20.11 | 76.87 | -3.17 | 171.70 | 0.3608 | -925.6 | 999999 | |
| 0.77 | -61.00 | 0.41 | -61.00 | -21.10 | 76.75 | -3.28 | 171.82 | 0.3770 | -1041.2 | 999999 | |
| 3.76 | -61.00 | 2.00 | -61.00 | -20.84 | 76.73 | -3.31 | 171.65 | 0.3729 | -1131.8 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -22.50 | 76.69 | -3.35 | 172.20 | 0.3996 | -676.0 | -503.2 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -22.38 | 76.63 | -3.41 | 172.01 | 0.3977 | -785.0 | -625.9 | |
| 14.52 | -61.00 | 7.67 | -61.00 | -19.35 | 76.67 | -3.37 | 170.82 | 0.3491 | -1384.3 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.25 | -22.67 | 76.56 | -3.48 | 171.96 | 0.4025 | -604.0 | -551.3 | |
| 0.00 | 3.25 | 0.00 | 1.75 | -22.18 | 76.50 | -3.53 | 171.65 | 0.3949 | -986.0 | -757.8 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -23.96 | 76.45 | -3.58 | 172.21 | 0.4231 | -850.0 | -624.2 | |
| 1.20 | -61.00 | 0.63 | -61.00 | -19.99 | 76.53 | -3.51 | 170.75 | 0.3597 | -937.5 | 999999 | |
| 7.09 | -61.00 | 3.75 | -61.00 | -19.64 | 76.50 | -3.53 | 170.52 | 0.3541 | -1062.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -21.86 | 76.45 | -3.59 | 171.39 | 0.3899 | -817.0 | -671.5 | |
| 0.00 | 2.56 | 0.00 | 1.38 | -22.34 | 76.37 | -3.67 | 171.41 | 0.3978 | -814.0 | -654.6 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -21.13 | 76.12 | -3.92 | 170.28 | 0.3791 | -998.0 | -790.2 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -21.29 | 75.99 | -4.05 | 170.03 | 0.3820 | -664.0 | -573.5 | |
| 0.77 | 2.22 | 0.41 | 1.19 | -21.10 | 75.83 | -4.20 | 169.57 | 0.3794 | -976.9 | -759.9 | |
| 0.60 | 2.39 | 0.32 | 1.28 | -20.84 | 75.68 | -4.35 | 169.07 | 0.3758 | -974.7 | -758.7 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -21.51 | 74.83 | -5.20 | 167.42 | 0.3892 | -715.0 | -587.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
