SDO HMI 2014-12-02 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.54 | 178.35 | 46.64 | 135.45 | -16.48 | 124.61 | 46.78 | 247.23 | 0.7596 | 204.6 | 9.6 | |
|
previous
or next observation for the same group /

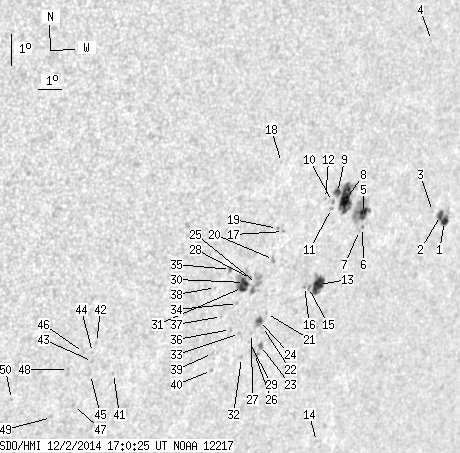

back to the solar disc SDO HMI 2014-12-02 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.59 | 14.34 | 3.06 | 12.22 | -15.47 | 130.60 | 52.77 | 250.36 | 0.8170 | 598.2 | 408.7 | |
| 3.24 | -1.00 | 2.75 | -1.00 | -15.28 | 130.33 | 52.50 | 250.52 | 0.8140 | 804.1 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.64 | -15.15 | 129.88 | 52.05 | 250.56 | 0.8094 | 547.0 | 428.2 | |
| 0.00 | 0.34 | 0.00 | 0.27 | -9.94 | 128.39 | 50.55 | 256.66 | 0.7840 | 173.0 | 210.8 | |
| 6.06 | 27.24 | 4.74 | 21.23 | -15.18 | 126.56 | 48.73 | 249.61 | 0.7761 | -909.1 | -511.1 | |
| 0.00 | 1.11 | 0.00 | 0.87 | -15.61 | 126.65 | 48.81 | 249.10 | 0.7782 | -524.0 | -490.8 | |
| 0.00 | 0.68 | 0.00 | 0.54 | -15.70 | 126.54 | 48.70 | 248.95 | 0.7773 | -131.0 | -97.5 | |
| 21.34 | 37.99 | 16.34 | 29.05 | -14.74 | 125.60 | 47.76 | 249.88 | 0.7649 | 619.2 | 268.4 | |
| 3.16 | -8.00 | 2.40 | -8.00 | -14.52 | 125.17 | 47.34 | 250.03 | 0.7598 | 867.8 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.04 | -14.79 | 125.02 | 47.19 | 249.63 | 0.7589 | 700.0 | 705.3 | |
| 0.00 | 1.37 | 0.00 | 1.04 | -15.01 | 125.04 | 47.20 | 249.36 | 0.7597 | 535.0 | 463.6 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -14.70 | 124.68 | 46.85 | 249.64 | 0.7550 | 667.0 | 636.4 | |
| 11.36 | 16.14 | 8.75 | 12.43 | -17.36 | 125.19 | 47.35 | 246.43 | 0.7682 | 627.5 | 366.2 | |
| 0.00 | 0.77 | 0.00 | 0.64 | -22.33 | 127.11 | 49.28 | 241.08 | 0.8032 | 296.0 | 261.3 | |
| 0.00 | 1.88 | 0.00 | 1.44 | -17.44 | 124.76 | 46.92 | 246.17 | 0.7641 | 770.0 | 669.7 | |
| 0.00 | 1.37 | 0.00 | 1.04 | -17.41 | 124.57 | 46.73 | 246.14 | 0.7620 | 787.0 | 730.7 | |
| 0.00 | 0.85 | 0.00 | 0.63 | -15.69 | 123.10 | 45.27 | 247.82 | 0.7409 | -544.0 | -459.5 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -13.57 | 122.46 | 44.63 | 250.40 | 0.7272 | 574.0 | 545.3 | |
| 0.00 | 0.85 | 0.00 | 0.62 | -15.60 | 122.81 | 44.98 | 247.84 | 0.7374 | 427.0 | 406.5 | |
| 0.00 | 2.48 | 0.00 | 1.82 | -16.56 | 122.91 | 45.08 | 246.63 | 0.7417 | -711.0 | -506.7 | |
| 0.00 | 1.02 | 0.00 | 0.76 | -18.24 | 123.13 | 45.30 | 244.56 | 0.7499 | 506.0 | 425.8 | |
| 0.00 | 0.68 | 0.00 | 0.51 | -18.64 | 123.09 | 45.26 | 244.03 | 0.7510 | 302.0 | 335.0 | |
| 0.68 | 3.42 | 0.51 | 2.57 | -19.24 | 123.21 | 45.38 | 243.32 | 0.7544 | 697.2 | 515.1 | |
| 2.31 | 4.95 | 1.71 | 3.68 | -18.45 | 122.90 | 45.06 | 244.19 | 0.7482 | 747.8 | 641.4 | |
| 0.00 | 12.55 | 0.00 | 9.18 | -17.29 | 122.39 | 44.56 | 245.48 | 0.7387 | 268.0 | -40.8 | |
| 0.00 | 4.18 | 0.00 | 3.14 | -19.49 | 123.03 | 45.20 | 242.93 | 0.7535 | 594.0 | 556.2 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -18.86 | 122.68 | 44.84 | 243.59 | 0.7475 | 634.0 | 548.6 | |
| 0.00 | 1.02 | 0.00 | 0.75 | -17.14 | 122.08 | 44.25 | 245.56 | 0.7348 | -573.0 | -485.8 | |
| 0.00 | 0.85 | 0.00 | 0.64 | -19.11 | 122.68 | 44.84 | 243.27 | 0.7484 | 677.0 | 628.4 | |
| 4.10 | 19.38 | 2.97 | 14.03 | -17.26 | 121.86 | 44.03 | 245.31 | 0.7328 | -824.8 | -572.1 | |
| 4.27 | -30.00 | 3.10 | -30.00 | -17.41 | 121.82 | 43.99 | 245.09 | 0.7330 | -802.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.95 | -19.61 | 122.50 | 44.66 | 242.56 | 0.7485 | 585.0 | 420.1 | |
| 0.00 | 1.20 | 0.00 | 0.88 | -18.85 | 122.15 | 44.31 | 243.37 | 0.7419 | 626.0 | 449.1 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -17.91 | 121.76 | 43.92 | 244.42 | 0.7341 | -580.0 | -473.4 | |
| 0.43 | 1.96 | 0.31 | 1.40 | -16.85 | 121.14 | 43.31 | 245.56 | 0.7234 | 576.8 | 460.1 | |
| 0.00 | 1.45 | 0.00 | 1.06 | -18.72 | 121.71 | 43.88 | 243.36 | 0.7368 | 206.0 | 244.8 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -18.31 | 121.19 | 43.36 | 243.67 | 0.7296 | 452.0 | 409.8 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -17.40 | 120.66 | 42.83 | 244.63 | 0.7203 | 519.0 | 439.7 | |
| 0.00 | 1.45 | 0.00 | 1.05 | -19.47 | 121.18 | 43.35 | 242.16 | 0.7342 | 698.0 | 659.6 | |
| 0.00 | 1.02 | 0.00 | 0.75 | -20.01 | 121.32 | 43.48 | 241.54 | 0.7379 | 633.0 | 570.9 | |
| 0.00 | 0.77 | 0.00 | 0.53 | -20.06 | 117.21 | 39.38 | 239.44 | 0.6944 | -733.0 | -553.2 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -19.08 | 116.24 | 38.41 | 240.23 | 0.6788 | -696.0 | -589.6 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -19.67 | 116.25 | 38.41 | 239.42 | 0.6819 | -491.0 | -405.5 | |
| 0.00 | 0.51 | 0.00 | 0.34 | -19.39 | 116.17 | 38.33 | 239.76 | 0.6795 | -715.0 | -654.3 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -20.08 | 116.28 | 38.45 | 238.89 | 0.6845 | -511.0 | -449.6 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -19.39 | 115.81 | 37.97 | 239.56 | 0.6755 | -643.0 | -584.7 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -21.06 | 115.89 | 38.05 | 237.36 | 0.6854 | -635.0 | -496.1 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -19.92 | 115.36 | 37.52 | 238.58 | 0.6734 | -728.0 | -586.0 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -21.44 | 115.12 | 37.28 | 236.40 | 0.6793 | -561.0 | -477.1 | |
| 0.00 | 0.68 | 0.00 | 0.45 | -20.85 | 113.37 | 35.54 | 236.08 | 0.6569 | -553.0 | -502.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
