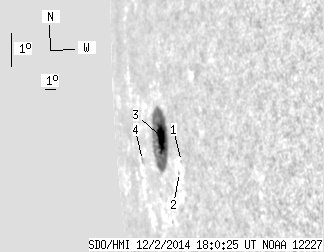

SDO HMI 2014-12-02 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.21 | 75.47 | 27.34 | 172.71 | -3.88 | 0.11 | -77.17 | 94.14 | 0.9763 | 131.1 | -45.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-02 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.49 | -4.54 | 2.47 | -74.82 | 94.89 | 0.9668 | 165.0 | 216.7 | |
| 0.00 | 0.51 | 0.00 | 1.00 | -4.87 | 2.13 | -75.15 | 95.22 | 0.9683 | 157.0 | 126.5 | |
| 12.21 | 73.08 | 27.34 | 166.40 | -3.85 | 0.18 | -77.10 | 94.11 | 0.9761 | 145.9 | -37.9 | |
| 0.00 | 1.62 | 0.00 | 4.82 | -4.58 | 356.94 | -80.34 | 94.76 | 0.9868 | -332.0 | -314.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
