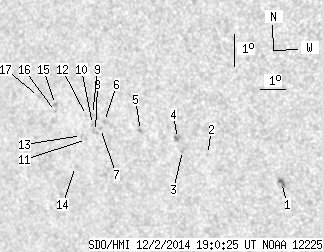

SDO HMI 2014-12-02 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 25.10 | 0.75 | 16.77 | -15.03 | 37.18 | -39.55 | 113.69 | 0.6732 | -266.8 | -87.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-02 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 3.07 | 0.75 | 1.92 | -16.44 | 42.73 | -34.00 | 118.62 | 0.6132 | 951.1 | 840.4 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -15.59 | 40.11 | -36.62 | 115.83 | 0.6406 | 546.0 | 581.0 | |
| 0.00 | 2.22 | 0.00 | 1.45 | -15.47 | 39.17 | -37.56 | 115.17 | 0.6514 | 667.0 | 565.8 | |
| 0.00 | 4.01 | 0.00 | 2.61 | -15.11 | 39.06 | -37.67 | 114.58 | 0.6511 | 865.0 | 686.5 | |
| 0.00 | 1.28 | 0.00 | 0.85 | -14.87 | 37.66 | -39.07 | 113.57 | 0.6669 | 613.0 | 547.5 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -14.61 | 36.28 | -40.44 | 112.58 | 0.6822 | -738.0 | -718.2 | |
| 0.00 | 1.02 | 0.00 | 0.69 | -14.82 | 36.07 | -40.65 | 112.80 | 0.6855 | -820.0 | -726.8 | |
| 0.00 | 2.48 | 0.00 | 1.69 | -14.92 | 35.85 | -40.88 | 112.83 | 0.6885 | -598.0 | -589.7 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -14.39 | 35.85 | -40.88 | 112.10 | 0.6866 | -731.0 | -612.0 | |
| 0.00 | 1.28 | 0.00 | 0.87 | -14.70 | 35.78 | -40.95 | 112.50 | 0.6886 | -799.0 | -629.0 | |
| 0.00 | 1.11 | 0.00 | 0.76 | -15.16 | 35.42 | -41.30 | 113.00 | 0.6944 | -618.0 | -517.6 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -14.43 | 35.60 | -41.13 | 112.05 | 0.6897 | -558.0 | -595.0 | |
| 0.00 | 1.28 | 0.00 | 0.88 | -15.04 | 35.25 | -41.48 | 112.76 | 0.6960 | -542.0 | -470.4 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -16.00 | 34.76 | -41.97 | 113.86 | 0.7052 | -522.0 | -446.5 | |
| 0.00 | 1.71 | 0.00 | 1.18 | -14.10 | 34.40 | -42.33 | 111.12 | 0.7025 | -786.0 | -602.0 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -14.31 | 34.35 | -42.38 | 111.40 | 0.7038 | -572.0 | -487.7 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -13.86 | 33.75 | -42.98 | 110.55 | 0.7092 | -589.0 | -495.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
