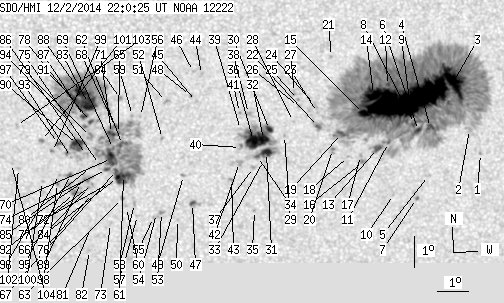

SDO HMI 2014-12-02 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 342.80 | 1692.07 | 184.30 | 909.89 | -20.02 | 84.10 | 9.03 | 202.19 | 0.3910 | 497.0 | 148.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-02 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.47 | -21.33 | 89.54 | 14.47 | 211.87 | 0.4427 | -750.0 | -600.0 | |
| 0.00 | 3.24 | 0.00 | 1.78 | -20.56 | 89.10 | 14.04 | 212.10 | 0.4291 | 187.0 | 168.8 | |
| 28.18 | 1096.28 | 15.24 | 591.95 | -19.04 | 88.45 | 13.39 | 212.98 | 0.4037 | 1263.8 | 433.3 | |
| 3.84 | -3.00 | 2.09 | -3.00 | -20.49 | 87.83 | 12.76 | 209.83 | 0.4178 | 674.5 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.08 | -22.02 | 87.90 | 12.83 | 208.10 | 0.4391 | -137.0 | 42.0 | |
| 3.33 | -3.00 | 1.81 | -3.00 | -20.59 | 87.45 | 12.38 | 208.98 | 0.4161 | 495.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -22.76 | 87.58 | 12.51 | 206.67 | 0.4468 | -798.0 | -693.8 | |
| 2.56 | -3.00 | 1.39 | -3.00 | -20.36 | 87.31 | 12.24 | 208.98 | 0.4119 | 504.1 | 999999 | |
| 154.62 | -3.00 | 83.49 | -3.00 | -19.60 | 87.09 | 12.02 | 209.52 | 0.3998 | 1676.8 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -22.63 | 86.81 | 11.74 | 205.41 | 0.4397 | 656.0 | 562.0 | |
| 0.68 | -3.00 | 0.37 | -3.00 | -20.96 | 86.51 | 11.44 | 206.69 | 0.4143 | 741.8 | 999999 | |
| 2.05 | -3.00 | 1.10 | -3.00 | -19.16 | 86.35 | 11.28 | 208.58 | 0.3879 | 1246.2 | 999999 | |
| 3.07 | -3.00 | 1.67 | -3.00 | -21.15 | 86.17 | 11.10 | 205.79 | 0.4146 | 781.3 | 999999 | |
| 16.39 | -3.00 | 8.80 | -3.00 | -19.44 | 85.92 | 10.85 | 207.31 | 0.3887 | 1663.8 | 999999 | |
| 5.89 | -3.00 | 3.17 | -3.00 | -20.04 | 85.64 | 10.57 | 205.99 | 0.3951 | 1264.1 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.39 | -21.57 | 85.75 | 10.68 | 204.49 | 0.4176 | 341.0 | 387.5 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -21.37 | 85.64 | 10.57 | 204.48 | 0.4141 | 150.0 | 178.9 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -21.40 | 85.25 | 10.19 | 203.66 | 0.4121 | -296.0 | -229.9 | |
| 3.42 | -3.00 | 1.84 | -3.00 | -20.67 | 84.98 | 9.91 | 203.87 | 0.3997 | 413.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -21.18 | 84.72 | 9.66 | 202.79 | 0.4054 | -860.0 | -509.9 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -18.25 | 84.52 | 9.45 | 205.69 | 0.3613 | 768.0 | 660.5 | |
| 1.28 | 6.23 | 0.69 | 3.35 | -20.45 | 84.23 | 9.16 | 202.49 | 0.3917 | -545.3 | -323.2 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -20.00 | 84.17 | 9.10 | 202.84 | 0.3848 | 267.0 | 208.6 | |
| 0.00 | 2.31 | 0.00 | 1.23 | -19.78 | 84.10 | 9.03 | 202.90 | 0.3810 | 297.0 | 268.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.59 | 83.55 | 8.48 | 201.85 | 0.3748 | -678.0 | -603.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -19.81 | 83.56 | 8.49 | 201.65 | 0.3782 | -612.0 | -398.1 | |
| 0.00 | 1.79 | 0.00 | 0.96 | -19.37 | 83.41 | 8.34 | 201.76 | 0.3707 | -813.0 | -702.9 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -20.29 | 83.42 | 8.36 | 200.86 | 0.3845 | -661.0 | -547.2 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -20.73 | 83.16 | 8.09 | 199.84 | 0.3896 | 846.0 | 686.0 | |
| 3.16 | 76.76 | 1.69 | 41.22 | -20.54 | 82.67 | 7.60 | 198.91 | 0.3841 | 997.9 | 517.5 | |
| 6.06 | -30.00 | 3.27 | -30.00 | -21.27 | 82.61 | 7.54 | 198.13 | 0.3949 | 862.5 | 999999 | |
| 8.96 | -30.00 | 4.81 | -30.00 | -20.85 | 82.50 | 7.43 | 198.22 | 0.3880 | 1120.5 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.06 | -21.52 | 82.53 | 7.46 | 197.73 | 0.3984 | 264.0 | 232.3 | |
| 1.20 | -30.00 | 0.64 | -30.00 | -21.40 | 82.33 | 7.26 | 197.40 | 0.3954 | 676.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -23.13 | 82.32 | 7.26 | 196.05 | 0.4218 | 913.0 | 744.4 | |
| 15.88 | -30.00 | 8.52 | -30.00 | -20.89 | 82.18 | 7.11 | 197.47 | 0.3869 | 1242.8 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.06 | -21.75 | 82.22 | 7.15 | 196.87 | 0.4003 | 748.0 | 535.0 | |
| 0.00 | 2.90 | 0.00 | 1.55 | -20.03 | 81.98 | 6.91 | 197.74 | 0.3728 | 487.0 | 301.1 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -20.53 | 81.75 | 6.68 | 196.76 | 0.3795 | 246.0 | 239.5 | |
| 0.00 | 2.31 | 0.00 | 1.24 | -21.11 | 81.78 | 6.71 | 196.36 | 0.3884 | 812.0 | 642.1 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -20.00 | 81.70 | 6.63 | 197.08 | 0.3709 | -316.0 | -358.2 | |
| 0.00 | 2.99 | 0.00 | 1.61 | -21.59 | 81.77 | 6.70 | 195.97 | 0.3957 | 827.0 | 739.7 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -22.13 | 81.53 | 6.46 | 195.06 | 0.4031 | 914.0 | 729.1 | |
| 0.00 | 1.96 | 0.00 | 1.04 | -18.80 | 80.46 | 5.39 | 194.93 | 0.3466 | -804.0 | -496.7 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -19.65 | 80.33 | 5.26 | 193.95 | 0.3594 | 878.0 | 596.6 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -18.70 | 80.20 | 5.13 | 194.33 | 0.3440 | -875.0 | -695.4 | |
| 1.45 | 5.81 | 0.79 | 3.15 | -22.90 | 80.31 | 5.24 | 191.88 | 0.4105 | -948.6 | -707.2 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -19.46 | 80.13 | 5.06 | 193.59 | 0.3557 | 778.0 | 717.9 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -22.00 | 79.99 | 4.92 | 191.66 | 0.3953 | 928.0 | 628.7 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -23.41 | 79.85 | 4.78 | 190.60 | 0.4171 | -621.0 | -553.8 | |
| 0.00 | 2.48 | 0.00 | 1.31 | -19.64 | 79.38 | 4.31 | 191.53 | 0.3560 | -935.0 | -751.5 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -20.81 | 79.29 | 4.22 | 190.63 | 0.3744 | 1016.0 | 752.2 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -23.19 | 79.32 | 4.25 | 189.57 | 0.4120 | -987.0 | -838.0 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -23.22 | 79.16 | 4.09 | 189.20 | 0.4121 | -146.0 | -375.4 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -23.35 | 79.07 | 4.00 | 188.94 | 0.4139 | -970.0 | -639.9 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -20.12 | 78.57 | 3.50 | 189.18 | 0.3612 | -807.0 | -665.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -23.28 | 78.55 | 3.48 | 187.82 | 0.4117 | -413.0 | -399.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -22.89 | 78.45 | 3.38 | 187.73 | 0.4053 | -738.0 | -587.4 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -20.08 | 78.32 | 3.25 | 188.55 | 0.3600 | -770.0 | -604.2 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -23.02 | 78.19 | 3.12 | 187.11 | 0.4068 | -457.0 | -485.2 | |
| 1.28 | 177.93 | 0.69 | 95.16 | -21.99 | 78.07 | 3.00 | 187.19 | 0.3902 | -995.7 | -457.5 | |
| 2.99 | -61.00 | 1.59 | -61.00 | -21.00 | 78.02 | 2.95 | 187.42 | 0.3742 | -719.8 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -22.73 | 78.06 | 2.99 | 186.90 | 0.4019 | -791.0 | -660.6 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -19.55 | 77.93 | 2.86 | 187.76 | 0.3504 | -978.0 | -810.3 | |
| 0.51 | -61.00 | 0.27 | -61.00 | -20.65 | 77.89 | 2.82 | 187.21 | 0.3683 | -813.3 | 999999 | |
| 1.88 | -61.00 | 1.01 | -61.00 | -22.06 | 77.88 | 2.81 | 186.72 | 0.3908 | -1030.2 | 999999 | |
| 0.26 | -61.00 | 0.14 | -61.00 | -21.83 | 77.85 | 2.78 | 186.70 | 0.3872 | -1117.3 | 999999 | |
| 0.94 | -61.00 | 0.50 | -61.00 | -20.43 | 77.79 | 2.72 | 187.04 | 0.3645 | -927.5 | 999999 | |
| 0.43 | -61.00 | 0.23 | -61.00 | -21.13 | 77.74 | 2.67 | 186.67 | 0.3757 | -914.4 | 999999 | |
| 11.36 | -61.00 | 6.08 | -61.00 | -21.45 | 77.68 | 2.61 | 186.43 | 0.3807 | -1078.6 | 999999 | |
| 3.42 | -61.00 | 1.82 | -61.00 | -20.65 | 77.67 | 2.60 | 186.65 | 0.3678 | -1104.8 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -22.22 | 77.66 | 2.59 | 186.15 | 0.3930 | -735.0 | -539.6 | |
| 0.00 | 1.96 | 0.00 | 1.07 | -23.54 | 77.69 | 2.62 | 185.83 | 0.4141 | -663.0 | -473.9 | |
| 1.37 | -61.00 | 0.73 | -61.00 | -21.80 | 77.53 | 2.46 | 185.95 | 0.3861 | -862.2 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -21.64 | 77.30 | 2.23 | 185.45 | 0.3831 | -927.0 | -812.0 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -22.57 | 77.09 | 2.02 | 184.72 | 0.3978 | -750.0 | -599.0 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -22.28 | 77.09 | 2.02 | 184.78 | 0.3931 | -851.0 | -661.9 | |
| 1.11 | 8.79 | 0.59 | 4.67 | -20.27 | 77.00 | 1.93 | 185.05 | 0.3605 | -1059.6 | -832.6 | |
| 0.00 | 3.93 | 0.00 | 2.09 | -20.75 | 77.01 | 1.94 | 184.95 | 0.3683 | -950.0 | -930.0 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -21.73 | 77.02 | 1.95 | 184.74 | 0.3843 | -797.0 | -710.1 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -23.70 | 77.04 | 1.97 | 184.37 | 0.4158 | -499.0 | -463.6 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -24.42 | 77.02 | 1.95 | 184.18 | 0.4271 | -706.0 | -479.6 | |
| 18.70 | 172.47 | 9.89 | 91.00 | -19.70 | 76.93 | 1.86 | 185.02 | 0.3512 | -1212.1 | -558.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -22.38 | 76.96 | 1.89 | 184.46 | 0.3945 | -762.0 | -639.6 | |
| 0.00 | 6.06 | 0.00 | 3.26 | -22.09 | 76.93 | 1.86 | 184.44 | 0.3898 | -976.0 | -826.4 | |
| 0.00 | 2.05 | 0.00 | 1.10 | -21.32 | 76.89 | 1.82 | 184.51 | 0.3774 | -830.0 | -811.9 | |
| 2.56 | -83.00 | 1.36 | -83.00 | -20.11 | 76.81 | 1.74 | 184.59 | 0.3577 | -971.4 | 999999 | |
| 12.38 | -83.00 | 6.53 | -83.00 | -19.35 | 76.71 | 1.64 | 184.51 | 0.3452 | -1433.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -22.21 | 76.70 | 1.64 | 183.89 | 0.3916 | -764.0 | -596.3 | |
| 10.93 | 24.08 | 5.83 | 12.85 | -21.00 | 76.60 | 1.53 | 183.86 | 0.3719 | -1050.2 | -699.9 | |
| 8.28 | -83.00 | 4.37 | -83.00 | -19.58 | 76.49 | 1.42 | 183.86 | 0.3485 | -1091.5 | 999999 | |
| 0.85 | 11.18 | 0.46 | 6.03 | -22.57 | 76.52 | 1.45 | 183.38 | 0.3971 | -724.9 | -665.4 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -21.41 | 76.41 | 1.34 | 183.32 | 0.3784 | -654.0 | -523.6 | |
| 0.00 | 3.16 | 0.00 | 1.68 | -20.33 | 76.40 | 1.33 | 183.48 | 0.3608 | -638.0 | -521.6 | |
| 0.68 | 3.16 | 0.37 | 1.70 | -21.96 | 76.38 | 1.31 | 183.16 | 0.3872 | -949.6 | -788.9 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -21.96 | 76.03 | 0.96 | 182.32 | 0.3869 | -630.0 | -489.6 | |
| 0.85 | 3.67 | 0.46 | 1.96 | -20.97 | 76.00 | 0.93 | 182.34 | 0.3708 | -788.6 | -634.5 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -22.25 | 75.97 | 0.90 | 182.14 | 0.3915 | -759.0 | -681.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -21.22 | 75.81 | 0.74 | 181.84 | 0.3748 | -974.0 | -800.3 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -22.18 | 75.49 | 0.42 | 181.01 | 0.3902 | -701.0 | -550.3 | |
| 0.00 | 2.22 | 0.00 | 1.18 | -20.87 | 75.46 | 0.39 | 180.99 | 0.3690 | -1007.0 | -815.3 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -21.76 | 74.73 | -0.34 | 179.17 | 0.3835 | -704.0 | -554.5 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -20.39 | 74.67 | -0.40 | 178.96 | 0.3612 | -802.0 | -663.4 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -21.60 | 74.51 | -0.56 | 178.62 | 0.3809 | -722.0 | -633.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
