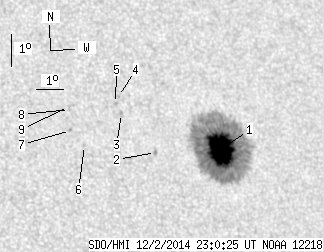

SDO HMI 2014-12-02 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.43 | 312.60 | 33.10 | 197.26 | 16.60 | 109.80 | 35.28 | 296.56 | 0.6211 | -919.9 | -337.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-02 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.43 | 302.78 | 33.10 | 191.31 | 16.58 | 109.92 | 35.40 | 296.45 | 0.6224 | -1310.5 | -371.2 | |
| 0.00 | 2.22 | 0.00 | 1.36 | 16.50 | 107.47 | 32.96 | 297.77 | 0.5917 | 677.0 | 559.7 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 17.71 | 106.47 | 31.95 | 300.32 | 0.5862 | 754.0 | 675.4 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 18.24 | 106.46 | 31.95 | 301.13 | 0.5894 | 618.0 | 525.0 | |
| 0.00 | 1.37 | 0.00 | 0.83 | 18.03 | 106.31 | 31.79 | 300.91 | 0.5862 | 800.0 | 621.4 | |
| 0.00 | 1.28 | 0.00 | 0.77 | 16.74 | 104.94 | 30.42 | 299.85 | 0.5613 | 684.0 | 510.9 | |
| 0.00 | 1.20 | 0.00 | 0.71 | 17.20 | 104.52 | 30.00 | 300.91 | 0.5590 | 807.0 | 658.9 | |
| 0.00 | 0.68 | 0.00 | 0.41 | 17.85 | 104.61 | 30.09 | 301.88 | 0.5642 | 714.0 | 475.4 | |
| 0.00 | 0.68 | 0.00 | 0.41 | 17.94 | 104.59 | 30.07 | 302.05 | 0.5646 | 514.0 | 382.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
