SDO HMI 2014-12-02 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 366.85 | 1706.90 | 197.54 | 919.28 | -20.05 | 84.19 | 9.67 | 203.58 | 0.3951 | 472.9 | 165.9 | |
|
previous
or next observation for the same group /

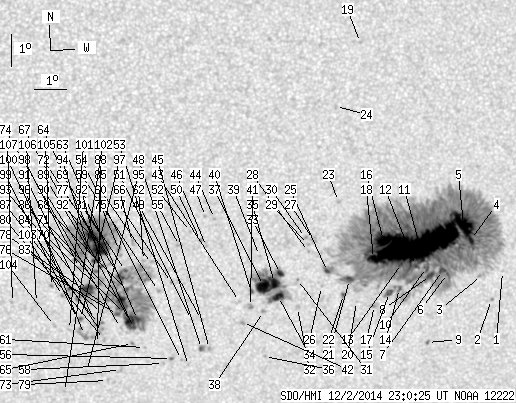

back to the solar disc SDO HMI 2014-12-02 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.52 | -20.48 | 89.82 | 15.30 | 214.44 | 0.4390 | 417.0 | 221.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -21.37 | 89.55 | 15.04 | 212.79 | 0.4479 | -692.0 | -688.8 | |
| 0.00 | 2.99 | 0.00 | 1.64 | -20.61 | 89.15 | 14.63 | 213.11 | 0.4347 | 81.0 | 157.6 | |
| 3.50 | 1127.44 | 1.91 | 609.98 | -19.47 | 88.68 | 14.17 | 213.86 | 0.4160 | 895.9 | 420.1 | |
| 25.36 | -4.00 | 13.74 | -4.00 | -19.00 | 88.42 | 13.90 | 214.04 | 0.4075 | 1275.8 | 999999 | |
| 0.94 | -4.00 | 0.51 | -4.00 | -20.54 | 88.03 | 13.52 | 211.19 | 0.4244 | 398.6 | 999999 | |
| 3.42 | -4.00 | 1.86 | -4.00 | -20.44 | 87.86 | 13.35 | 211.00 | 0.4218 | 670.3 | 999999 | |
| 4.27 | -4.00 | 2.33 | -4.00 | -20.60 | 87.49 | 12.97 | 210.10 | 0.4208 | 441.7 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -22.74 | 87.59 | 13.07 | 207.71 | 0.4504 | -752.0 | -654.4 | |
| 2.82 | -4.00 | 1.53 | -4.00 | -20.35 | 87.34 | 12.82 | 210.14 | 0.4162 | 494.8 | 999999 | |
| 156.94 | -4.00 | 84.91 | -4.00 | -19.62 | 87.05 | 12.54 | 210.54 | 0.4041 | 1640.5 | 999999 | |
| 3.24 | -4.00 | 1.76 | -4.00 | -20.28 | 86.98 | 12.46 | 209.52 | 0.4125 | 557.3 | 999999 | |
| 0.26 | -4.00 | 0.14 | -4.00 | -20.22 | 86.52 | 12.00 | 208.71 | 0.4080 | 995.7 | 999999 | |
| 0.94 | -4.00 | 0.51 | -4.00 | -21.01 | 86.52 | 12.00 | 207.73 | 0.4189 | 717.1 | 999999 | |
| 2.82 | -4.00 | 1.54 | -4.00 | -21.14 | 86.21 | 11.69 | 206.97 | 0.4184 | 782.9 | 999999 | |
| 16.74 | -4.00 | 9.01 | -4.00 | -19.49 | 85.89 | 11.37 | 208.36 | 0.3931 | 1678.6 | 999999 | |
| 0.00 | 3.07 | 0.00 | 1.68 | -21.55 | 85.75 | 11.23 | 205.62 | 0.4210 | 225.0 | 267.8 | |
| 7.00 | -4.00 | 3.78 | -4.00 | -20.05 | 85.61 | 11.09 | 207.06 | 0.3989 | 1174.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -13.36 | 84.83 | 10.31 | 215.71 | 0.2997 | 697.0 | 513.5 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -21.42 | 85.16 | 10.64 | 204.58 | 0.4151 | -232.0 | -361.0 | |
| 3.76 | -4.00 | 2.03 | -4.00 | -20.72 | 84.89 | 10.37 | 204.79 | 0.4033 | 503.9 | 999999 | |
| 0.68 | 2.31 | 0.37 | 1.25 | -21.19 | 84.72 | 10.21 | 203.93 | 0.4090 | -604.6 | -555.0 | |
| 0.00 | 1.79 | 0.00 | 0.95 | -18.26 | 84.38 | 9.86 | 206.64 | 0.3644 | 769.0 | 621.5 | |
| 0.00 | 1.79 | 0.00 | 0.94 | -15.31 | 84.14 | 9.62 | 210.35 | 0.3204 | 674.0 | 540.5 | |
| 1.37 | -4.00 | 0.74 | -4.00 | -20.46 | 84.16 | 9.65 | 203.54 | 0.3948 | -690.0 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -20.94 | 84.00 | 9.48 | 202.69 | 0.4007 | -546.0 | -489.4 | |
| 0.00 | 3.84 | 0.00 | 2.05 | -19.45 | 83.66 | 9.14 | 203.54 | 0.3767 | -387.0 | -262.3 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.83 | 83.52 | 9.00 | 202.81 | 0.3814 | -555.0 | -451.4 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -19.61 | 83.51 | 8.99 | 203.02 | 0.3781 | -713.0 | -513.0 | |
| 0.00 | 1.79 | 0.00 | 0.96 | -19.38 | 83.40 | 8.88 | 203.02 | 0.3741 | -839.0 | -695.2 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -20.71 | 83.22 | 8.70 | 201.22 | 0.3927 | 697.0 | 646.7 | |
| 0.00 | 2.56 | 0.00 | 1.39 | -21.60 | 83.27 | 8.75 | 200.48 | 0.4062 | 622.0 | 535.6 | |
| 3.16 | 80.35 | 1.70 | 43.20 | -20.52 | 82.67 | 8.15 | 200.17 | 0.3867 | 1013.5 | 497.5 | |
| 6.83 | -33.00 | 3.68 | -33.00 | -21.25 | 82.64 | 8.12 | 199.44 | 0.3975 | 790.6 | 999999 | |
| 9.73 | -33.00 | 5.23 | -33.00 | -20.80 | 82.49 | 7.97 | 199.51 | 0.3900 | 1117.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -23.17 | 82.30 | 7.78 | 197.11 | 0.4247 | 842.0 | 621.1 | |
| 15.88 | -33.00 | 8.54 | -33.00 | -20.90 | 82.14 | 7.63 | 198.64 | 0.3896 | 1165.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -21.73 | 82.19 | 7.67 | 198.02 | 0.4024 | 784.0 | 557.1 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -19.95 | 81.97 | 7.45 | 199.10 | 0.3742 | 546.0 | 396.2 | |
| 0.68 | 2.31 | 0.37 | 1.24 | -21.09 | 81.77 | 7.25 | 197.63 | 0.3906 | 696.2 | 524.1 | |
| 0.00 | 2.73 | 0.00 | 1.47 | -21.57 | 81.76 | 7.24 | 197.22 | 0.3979 | 846.0 | 719.5 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -22.08 | 81.53 | 7.01 | 196.31 | 0.4046 | 916.0 | 733.7 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -21.41 | 81.40 | 6.88 | 196.54 | 0.3937 | 745.0 | 495.1 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -18.78 | 80.50 | 5.99 | 196.52 | 0.3488 | -780.0 | -678.9 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -22.91 | 80.51 | 5.99 | 193.51 | 0.4132 | -851.0 | -634.9 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -19.66 | 80.28 | 5.77 | 195.23 | 0.3616 | 772.0 | 594.0 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.72 | 80.22 | 5.70 | 195.83 | 0.3465 | -856.0 | -683.3 | |
| 1.11 | 3.76 | 0.60 | 2.04 | -22.91 | 80.25 | 5.73 | 192.95 | 0.4122 | -972.6 | -743.7 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -21.98 | 80.21 | 5.69 | 193.44 | 0.3976 | 814.0 | 714.0 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.47 | 80.09 | 5.57 | 194.89 | 0.3578 | 771.0 | 696.0 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -21.98 | 79.89 | 5.37 | 192.71 | 0.3964 | 798.0 | 594.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.19 | 79.76 | 5.25 | 194.27 | 0.3520 | -736.0 | -580.5 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -23.46 | 79.85 | 5.33 | 191.78 | 0.4194 | -690.0 | -564.9 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -23.26 | 79.62 | 5.10 | 191.38 | 0.4156 | -644.0 | -551.0 | |
| 0.00 | 2.13 | 0.00 | 1.13 | -19.63 | 79.43 | 4.91 | 193.09 | 0.3577 | -808.0 | -701.9 | |
| 0.34 | 1.71 | 0.19 | 0.93 | -23.23 | 79.29 | 4.77 | 190.69 | 0.4141 | -920.0 | -783.2 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -20.80 | 79.21 | 4.70 | 191.81 | 0.3755 | 916.0 | 680.0 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -23.39 | 79.04 | 4.52 | 190.06 | 0.4159 | -852.0 | -654.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -21.05 | 78.81 | 4.29 | 190.69 | 0.3782 | 724.0 | 605.9 | |
| 0.00 | 0.51 | 0.00 | 0.27 | -20.19 | 78.56 | 4.05 | 190.54 | 0.3638 | -495.0 | -517.2 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -22.87 | 78.41 | 3.89 | 188.90 | 0.4061 | -600.0 | -513.0 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -20.10 | 78.31 | 3.79 | 189.94 | 0.3616 | -767.0 | -585.3 | |
| 2.99 | 179.40 | 1.61 | 95.96 | -21.97 | 78.16 | 3.65 | 188.71 | 0.3912 | -663.0 | -421.6 | |
| 1.28 | -63.00 | 0.69 | -63.00 | -22.23 | 78.04 | 3.52 | 188.32 | 0.3950 | -715.9 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -22.74 | 78.02 | 3.51 | 188.08 | 0.4031 | -773.0 | -696.5 | |
| 0.00 | 2.22 | 0.00 | 1.17 | -19.53 | 77.95 | 3.43 | 189.28 | 0.3514 | -912.0 | -758.5 | |
| 10.59 | -63.00 | 5.69 | -63.00 | -22.04 | 77.94 | 3.42 | 188.16 | 0.3917 | -942.3 | 999999 | |
| 1.45 | -63.00 | 0.78 | -63.00 | -21.01 | 77.79 | 3.27 | 188.21 | 0.3750 | -926.3 | 999999 | |
| 0.77 | -63.00 | 0.41 | -63.00 | -20.41 | 77.75 | 3.23 | 188.35 | 0.3652 | -976.8 | 999999 | |
| 0.26 | -63.00 | 0.14 | -63.00 | -21.78 | 77.74 | 3.23 | 187.79 | 0.3871 | -1035.7 | 999999 | |
| 12.81 | -63.00 | 6.86 | -63.00 | -21.43 | 77.64 | 3.12 | 187.68 | 0.3813 | -1049.1 | 999999 | |
| 3.42 | -63.00 | 1.82 | -63.00 | -20.60 | 77.59 | 3.08 | 187.88 | 0.3679 | -1156.7 | 999999 | |
| 0.00 | 3.24 | 0.00 | 1.77 | -23.58 | 77.66 | 3.14 | 186.96 | 0.4156 | -555.0 | -551.4 | |
| 0.00 | 0.51 | 0.00 | 0.28 | -22.23 | 77.63 | 3.11 | 187.35 | 0.3941 | -653.0 | -501.2 | |
| 0.00 | 4.35 | 0.00 | 2.31 | -19.78 | 77.55 | 3.03 | 188.10 | 0.3545 | -877.0 | -757.1 | |
| 1.37 | -63.00 | 0.73 | -63.00 | -21.81 | 77.52 | 3.00 | 187.25 | 0.3872 | -906.1 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -20.06 | 77.30 | 2.78 | 187.34 | 0.3585 | -788.0 | -585.5 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -21.62 | 77.26 | 2.75 | 186.70 | 0.3836 | -887.0 | -801.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -23.94 | 77.24 | 2.73 | 185.96 | 0.4205 | -722.0 | -514.8 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -22.61 | 77.12 | 2.60 | 186.06 | 0.3993 | -715.0 | -572.4 | |
| 2.99 | 162.49 | 1.58 | 85.75 | -19.37 | 77.01 | 2.49 | 186.82 | 0.3466 | -1234.4 | -544.3 | |
| 1.11 | 6.40 | 0.59 | 3.40 | -20.28 | 76.99 | 2.47 | 186.45 | 0.3615 | -1066.2 | -808.8 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -21.75 | 77.01 | 2.49 | 186.05 | 0.3852 | -759.0 | -669.9 | |
| 0.00 | 2.73 | 0.00 | 1.47 | -22.32 | 76.99 | 2.47 | 185.83 | 0.3944 | -682.0 | -708.3 | |
| 20.24 | -81.00 | 10.70 | -81.00 | -19.71 | 76.92 | 2.40 | 186.46 | 0.3521 | -1158.8 | 999999 | |
| 0.68 | 5.21 | 0.36 | 2.77 | -20.82 | 76.93 | 2.42 | 186.14 | 0.3701 | -1065.4 | -952.5 | |
| 0.00 | 4.35 | 0.00 | 2.34 | -22.10 | 76.92 | 2.40 | 185.73 | 0.3907 | -882.0 | -803.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -22.74 | 76.90 | 2.38 | 185.51 | 0.4009 | -624.0 | -471.9 | |
| 3.42 | -81.00 | 1.81 | -81.00 | -20.09 | 76.80 | 2.28 | 186.01 | 0.3581 | -947.7 | 999999 | |
| 0.68 | -82.00 | 0.36 | -82.00 | -20.44 | 76.80 | 2.28 | 185.92 | 0.3637 | -1004.9 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -21.97 | 76.79 | 2.27 | 185.46 | 0.3884 | -885.0 | -751.8 | |
| 12.21 | -81.00 | 6.44 | -81.00 | -19.34 | 76.69 | 2.18 | 185.98 | 0.3455 | -1401.8 | 999999 | |
| 10.59 | 26.38 | 5.65 | 14.09 | -21.04 | 76.56 | 2.04 | 185.13 | 0.3731 | -1080.2 | -744.8 | |
| 6.32 | -81.00 | 3.34 | -81.00 | -19.62 | 76.54 | 2.02 | 185.48 | 0.3499 | -1084.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -23.65 | 76.56 | 2.04 | 184.53 | 0.4149 | -764.0 | -580.6 | |
| 0.00 | 9.48 | 0.00 | 5.11 | -22.45 | 76.48 | 1.96 | 184.61 | 0.3957 | -612.0 | -679.4 | |
| 0.94 | 2.13 | 0.50 | 1.15 | -21.94 | 76.34 | 1.83 | 184.40 | 0.3873 | -943.0 | -775.9 | |
| 0.00 | 2.31 | 0.00 | 1.22 | -20.31 | 76.30 | 1.78 | 184.65 | 0.3609 | -534.0 | -514.5 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -21.94 | 76.25 | 1.73 | 184.17 | 0.3872 | -643.0 | -412.8 | |
| 0.94 | 2.31 | 0.50 | 1.23 | -20.98 | 75.99 | 1.47 | 183.71 | 0.3714 | -907.9 | -701.9 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -22.29 | 76.00 | 1.48 | 183.51 | 0.3926 | -620.0 | -578.8 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -24.30 | 75.86 | 1.34 | 182.89 | 0.4245 | -695.0 | -606.5 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -21.20 | 75.77 | 1.25 | 183.12 | 0.3748 | -834.0 | -707.6 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -22.16 | 75.52 | 1.00 | 182.39 | 0.3901 | -642.0 | -547.9 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -20.92 | 75.42 | 0.90 | 182.28 | 0.3698 | -940.0 | -841.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -21.42 | 74.94 | 0.43 | 181.05 | 0.3779 | -695.0 | -553.3 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -21.42 | 74.18 | -0.34 | 179.17 | 0.3778 | -748.0 | -594.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
