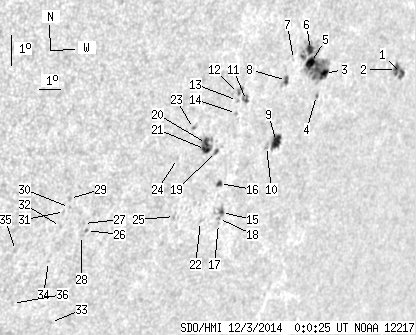

SDO HMI 2014-12-03 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.96 | 152.07 | 36.09 | 124.75 | -16.34 | 124.56 | 50.59 | 248.62 | 0.7977 | 100.0 | -46.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.16 | 11.44 | 2.99 | 10.77 | -15.27 | 130.89 | 56.92 | 251.57 | 0.8542 | 536.6 | 448.1 | |
| 4.01 | -1.00 | 3.76 | -1.00 | -15.14 | 130.56 | 56.59 | 251.65 | 0.8511 | 607.4 | 999999 | |
| 3.93 | 62.42 | 3.35 | 52.43 | -15.22 | 126.75 | 52.78 | 250.69 | 0.8164 | -894.8 | -48.8 | |
| 0.00 | 1.71 | 0.00 | 1.46 | -15.89 | 126.59 | 52.62 | 249.84 | 0.8164 | -101.0 | -146.9 | |
| 6.66 | -3.00 | 5.57 | -3.00 | -14.87 | 125.92 | 51.95 | 250.90 | 0.8077 | 671.8 | 999999 | |
| 4.27 | -3.00 | 3.55 | -3.00 | -14.47 | 125.79 | 51.82 | 251.35 | 0.8055 | 676.7 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -14.77 | 125.05 | 51.08 | 250.80 | 0.7989 | 671.0 | 682.0 | |
| 1.96 | 5.64 | 1.61 | 4.61 | -15.41 | 124.92 | 50.95 | 249.98 | 0.7991 | 675.6 | 485.3 | |
| 7.69 | 11.53 | 6.39 | 9.59 | -17.30 | 125.11 | 51.15 | 247.74 | 0.8056 | 618.8 | 393.2 | |
| 0.00 | 2.48 | 0.00 | 2.04 | -17.45 | 124.68 | 50.71 | 247.43 | 0.8018 | 304.0 | 461.6 | |
| 0.60 | 4.78 | 0.47 | 3.79 | -16.01 | 123.19 | 49.23 | 248.75 | 0.7834 | -579.3 | -444.6 | |
| 0.43 | 3.84 | 0.34 | 3.02 | -15.79 | 122.75 | 48.78 | 248.89 | 0.7782 | -573.8 | -513.9 | |
| 0.00 | 1.20 | 0.00 | 0.94 | -16.01 | 122.77 | 48.80 | 248.63 | 0.7790 | -565.0 | -584.6 | |
| 0.00 | 1.20 | 0.00 | 0.94 | -16.41 | 122.86 | 48.89 | 248.15 | 0.7810 | -479.0 | -399.8 | |
| 1.28 | 5.38 | 1.04 | 4.36 | -19.50 | 123.30 | 49.33 | 244.51 | 0.7944 | 681.8 | 500.7 | |
| 1.71 | 3.24 | 1.37 | 2.59 | -18.59 | 122.84 | 48.87 | 245.46 | 0.7871 | 578.0 | 453.1 | |
| 0.00 | 0.68 | 0.00 | 0.56 | -19.85 | 123.30 | 49.33 | 244.09 | 0.7955 | 393.0 | 397.4 | |
| 0.00 | 1.45 | 0.00 | 1.18 | -19.69 | 123.23 | 49.27 | 244.26 | 0.7944 | 406.0 | 396.6 | |
| 0.68 | 1.96 | 0.54 | 1.54 | -17.58 | 122.32 | 48.36 | 246.52 | 0.7790 | -324.4 | -276.4 | |
| 3.42 | 15.11 | 2.65 | 11.75 | -17.33 | 121.77 | 47.80 | 246.65 | 0.7726 | -799.7 | -571.3 | |
| 3.16 | -20.00 | 2.46 | -20.00 | -17.51 | 121.79 | 47.82 | 246.43 | 0.7734 | -690.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.75 | -19.78 | 122.41 | 48.44 | 243.86 | 0.7866 | 430.0 | 449.1 | |
| 0.00 | 1.11 | 0.00 | 0.85 | -16.85 | 121.01 | 47.05 | 246.99 | 0.7634 | 518.0 | 435.8 | |
| 0.00 | 0.94 | 0.00 | 0.72 | -17.78 | 120.59 | 46.63 | 245.67 | 0.7620 | 168.0 | 246.0 | |
| 0.00 | 0.51 | 0.00 | 0.40 | -19.60 | 121.12 | 47.15 | 243.59 | 0.7734 | 684.0 | 650.3 | |
| 0.00 | 1.45 | 0.00 | 1.06 | -20.01 | 117.32 | 43.35 | 241.51 | 0.7363 | -514.0 | -439.2 | |
| 0.00 | 1.02 | 0.00 | 0.74 | -19.78 | 117.11 | 43.15 | 241.71 | 0.7332 | -504.0 | -457.3 | |
| 0.00 | 1.79 | 0.00 | 1.31 | -20.16 | 117.16 | 43.19 | 241.24 | 0.7352 | -162.0 | -279.8 | |
| 0.00 | 1.71 | 0.00 | 1.22 | -18.99 | 116.26 | 42.29 | 242.34 | 0.7207 | -357.0 | -406.4 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -19.27 | 116.34 | 42.38 | 242.01 | 0.7229 | -419.0 | -421.1 | |
| 0.00 | 0.68 | 0.00 | 0.49 | -19.40 | 116.17 | 42.21 | 241.77 | 0.7216 | -654.0 | -499.0 | |
| 0.00 | 1.20 | 0.00 | 0.85 | -19.87 | 116.16 | 42.19 | 241.15 | 0.7235 | -92.0 | -237.7 | |
| 0.00 | 0.94 | 0.00 | 0.69 | -22.94 | 116.83 | 42.86 | 237.60 | 0.7443 | -488.0 | -376.5 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -20.98 | 116.02 | 42.05 | 239.66 | 0.7270 | -482.0 | -376.1 | |
| 0.00 | 2.13 | 0.00 | 1.50 | -20.61 | 114.50 | 40.54 | 239.36 | 0.7094 | -170.0 | -254.0 | |
| 0.00 | 1.45 | 0.00 | 1.04 | -22.31 | 114.95 | 40.98 | 237.43 | 0.7224 | -539.0 | -426.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
