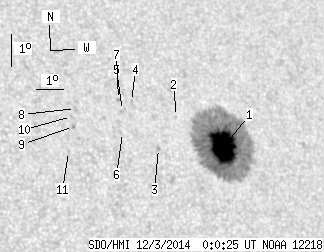

SDO HMI 2014-12-03 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.65 | 321.01 | 34.75 | 203.91 | 16.60 | 109.80 | 35.83 | 296.26 | 0.6279 | -870.1 | -320.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.65 | 309.38 | 34.75 | 196.81 | 16.57 | 109.94 | 35.97 | 296.13 | 0.6294 | -1274.7 | -357.1 | |
| 0.00 | 0.43 | 0.00 | 0.27 | 17.51 | 108.36 | 34.39 | 298.43 | 0.6149 | -578.0 | -478.2 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 16.53 | 107.48 | 33.52 | 297.47 | 0.5989 | 617.0 | 535.4 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 17.98 | 106.78 | 32.81 | 300.15 | 0.5984 | 510.0 | 364.9 | |
| 0.00 | 2.39 | 0.00 | 1.47 | 17.71 | 106.39 | 32.42 | 299.99 | 0.5920 | 734.0 | 640.7 | |
| 0.00 | 0.34 | 0.00 | 0.21 | 17.03 | 106.25 | 32.29 | 299.03 | 0.5864 | 575.0 | 539.0 | |
| 0.00 | 1.37 | 0.00 | 0.84 | 18.05 | 106.31 | 32.35 | 300.57 | 0.5931 | 748.0 | 615.2 | |
| 0.00 | 1.88 | 0.00 | 1.13 | 17.78 | 104.69 | 30.72 | 301.30 | 0.5716 | 695.0 | 568.4 | |
| 0.00 | 1.20 | 0.00 | 0.72 | 17.22 | 104.51 | 30.55 | 300.55 | 0.5659 | 846.0 | 751.6 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 17.53 | 104.50 | 30.53 | 301.06 | 0.5677 | 678.0 | 544.0 | |
| 0.00 | 0.85 | 0.00 | 0.51 | 16.46 | 104.20 | 30.23 | 299.54 | 0.5572 | 533.0 | 425.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
