SDO HMI 2014-12-03 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 353.33 | 1731.40 | 190.99 | 935.82 | -20.02 | 84.22 | 10.81 | 206.00 | 0.4020 | 529.5 | 150.9 | |
|
previous
or next observation for the same group /

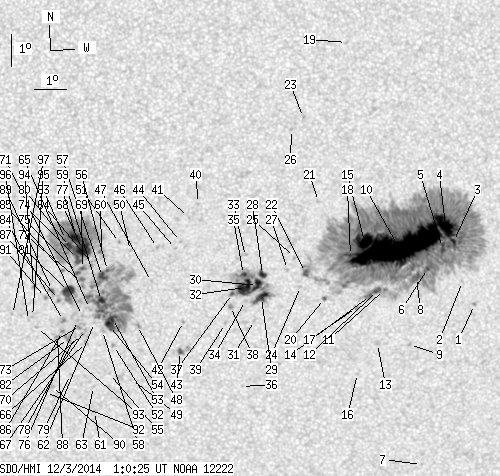

back to the solar disc SDO HMI 2014-12-03 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.62 | -21.49 | 89.62 | 16.21 | 214.59 | 0.4594 | -768.0 | -622.8 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -20.76 | 89.15 | 15.73 | 214.80 | 0.4461 | 403.0 | 234.9 | |
| 2.56 | 1159.13 | 1.40 | 629.92 | -19.49 | 88.72 | 15.31 | 215.88 | 0.4265 | 851.0 | 404.3 | |
| 27.93 | -3.00 | 15.21 | -3.00 | -18.99 | 88.42 | 15.00 | 216.09 | 0.4173 | 1267.0 | 999999 | |
| 3.76 | -3.00 | 2.06 | -3.00 | -19.68 | 88.38 | 14.97 | 215.01 | 0.4257 | 661.9 | 999999 | |
| 1.45 | -3.00 | 0.80 | -3.00 | -20.34 | 87.96 | 14.54 | 213.33 | 0.4303 | 646.9 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -26.70 | 88.49 | 15.07 | 206.83 | 0.5167 | -677.0 | -510.4 | |
| 5.38 | -3.00 | 2.95 | -3.00 | -20.63 | 87.63 | 14.21 | 212.36 | 0.4311 | 337.9 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -22.77 | 87.61 | 14.20 | 209.65 | 0.4590 | -655.0 | -459.1 | |
| 168.07 | -3.00 | 91.33 | -3.00 | -19.64 | 86.96 | 13.54 | 212.46 | 0.4126 | 1570.9 | 999999 | |
| 0.34 | -3.00 | 0.19 | -3.00 | -21.00 | 86.62 | 13.21 | 210.04 | 0.4278 | 826.0 | 999999 | |
| 3.16 | -3.00 | 1.73 | -3.00 | -21.03 | 86.40 | 12.98 | 209.58 | 0.4265 | 823.2 | 999999 | |
| 0.00 | 2.90 | 0.00 | 1.61 | -22.73 | 86.55 | 13.14 | 207.86 | 0.4505 | 532.0 | 405.0 | |
| 1.11 | -3.00 | 0.61 | -3.00 | -21.19 | 86.18 | 12.77 | 208.99 | 0.4270 | 737.5 | 999999 | |
| 19.73 | -3.00 | 10.66 | -3.00 | -19.48 | 85.85 | 12.43 | 210.54 | 0.4011 | 1654.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -23.70 | 85.99 | 12.57 | 205.81 | 0.4597 | 554.0 | 456.1 | |
| 0.00 | 2.56 | 0.00 | 1.40 | -21.57 | 85.76 | 12.34 | 207.74 | 0.4290 | 253.0 | 344.2 | |
| 1.62 | -3.00 | 0.88 | -3.00 | -19.92 | 85.43 | 12.02 | 209.13 | 0.4038 | 897.6 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -13.32 | 84.90 | 11.49 | 218.76 | 0.3109 | 783.0 | 585.4 | |
| 0.60 | 1.79 | 0.33 | 0.98 | -21.28 | 84.70 | 11.28 | 206.02 | 0.4173 | -548.4 | -434.8 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.22 | 84.29 | 10.88 | 209.00 | 0.3713 | 796.0 | 686.4 | |
| 2.31 | -3.00 | 1.25 | -3.00 | -20.45 | 84.03 | 10.61 | 205.61 | 0.4009 | -745.1 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -15.61 | 83.68 | 10.26 | 211.50 | 0.3298 | 750.0 | 593.4 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -20.90 | 83.90 | 10.48 | 204.84 | 0.4063 | -610.0 | -480.4 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -19.98 | 83.64 | 10.23 | 205.35 | 0.3914 | -219.0 | -174.9 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -15.98 | 83.32 | 9.90 | 210.02 | 0.3320 | 785.0 | 570.9 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -20.36 | 83.44 | 10.03 | 204.49 | 0.3955 | -671.0 | -551.9 | |
| 3.59 | 84.97 | 1.93 | 45.79 | -20.51 | 82.65 | 9.24 | 202.61 | 0.3927 | 879.3 | 486.7 | |
| 8.54 | -28.00 | 4.62 | -28.00 | -21.24 | 82.67 | 9.25 | 201.89 | 0.4035 | 748.3 | 999999 | |
| 7.09 | -28.00 | 3.82 | -28.00 | -20.86 | 82.51 | 9.10 | 201.95 | 0.3970 | 1050.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -21.98 | 82.49 | 9.07 | 200.81 | 0.4133 | 488.0 | 378.1 | |
| 15.97 | -28.00 | 8.61 | -28.00 | -20.92 | 82.13 | 8.72 | 201.06 | 0.3957 | 1046.8 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -19.94 | 82.08 | 8.66 | 201.93 | 0.3807 | 376.0 | 496.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -21.34 | 82.16 | 8.74 | 200.71 | 0.4020 | 278.0 | 288.8 | |
| 2.05 | -28.00 | 1.10 | -28.00 | -20.51 | 82.05 | 8.63 | 201.27 | 0.3890 | 1164.2 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -24.11 | 82.20 | 8.79 | 198.42 | 0.4432 | 406.0 | 354.9 | |
| 0.94 | -28.00 | 0.51 | -28.00 | -21.11 | 81.73 | 8.31 | 199.99 | 0.3962 | 636.7 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.25 | -21.53 | 81.69 | 8.27 | 199.52 | 0.4022 | 833.0 | 760.8 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -22.07 | 81.56 | 8.14 | 198.77 | 0.4097 | 964.0 | 771.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -18.27 | 80.52 | 7.10 | 199.90 | 0.3464 | -604.0 | -497.5 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -18.71 | 80.22 | 6.80 | 198.70 | 0.3515 | -824.0 | -662.8 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -22.00 | 80.20 | 6.79 | 195.88 | 0.4022 | 844.0 | 708.4 | |
| 1.54 | 5.55 | 0.84 | 3.02 | -22.97 | 80.15 | 6.74 | 195.09 | 0.4167 | -890.2 | -613.0 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -19.46 | 80.00 | 6.58 | 197.45 | 0.3620 | 733.0 | 600.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -19.68 | 79.85 | 6.43 | 196.89 | 0.3647 | 771.0 | 618.4 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -19.65 | 79.28 | 5.86 | 195.50 | 0.3616 | -878.0 | -673.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -20.72 | 79.13 | 5.71 | 194.33 | 0.3778 | 850.0 | 583.0 | |
| 0.00 | 2.39 | 0.00 | 1.29 | -22.13 | 78.73 | 5.32 | 192.50 | 0.3983 | 544.0 | 462.5 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -23.87 | 78.61 | 5.19 | 191.27 | 0.4250 | -489.0 | -421.8 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -19.74 | 78.43 | 5.01 | 193.28 | 0.3596 | -774.0 | -482.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.49 | 78.08 | 4.66 | 192.54 | 0.3543 | -849.0 | -634.0 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -22.77 | 77.98 | 4.57 | 190.47 | 0.4060 | -857.0 | -705.2 | |
| 4.53 | 185.32 | 2.44 | 99.24 | -21.90 | 77.93 | 4.51 | 190.77 | 0.3921 | -869.3 | -454.6 | |
| 6.75 | -53.00 | 3.63 | -53.00 | -22.12 | 77.84 | 4.42 | 190.45 | 0.3954 | -938.7 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -23.67 | 77.89 | 4.47 | 189.83 | 0.4199 | -618.0 | -486.4 | |
| 0.77 | -53.00 | 0.41 | -53.00 | -20.37 | 77.72 | 4.31 | 191.10 | 0.3672 | -902.9 | 999999 | |
| 4.95 | -53.00 | 2.64 | -53.00 | -20.56 | 77.57 | 4.15 | 190.61 | 0.3698 | -1103.1 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.11 | -22.28 | 77.62 | 4.20 | 189.87 | 0.3973 | -544.0 | -340.2 | |
| 2.99 | -53.00 | 1.60 | -53.00 | -21.32 | 77.56 | 4.14 | 190.19 | 0.3819 | -1218.1 | 999999 | |
| 0.00 | 4.44 | 0.00 | 2.35 | -19.80 | 77.52 | 4.10 | 190.90 | 0.3575 | -871.0 | -760.0 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -24.91 | 77.44 | 4.02 | 188.39 | 0.4381 | -691.0 | -613.4 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -22.03 | 77.35 | 3.94 | 189.38 | 0.3925 | -595.0 | -461.0 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -24.09 | 77.38 | 3.96 | 188.57 | 0.4252 | -588.0 | -434.7 | |
| 0.00 | 3.93 | 0.00 | 2.09 | -20.15 | 77.24 | 3.83 | 190.01 | 0.3622 | -718.0 | -715.4 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -21.58 | 77.18 | 3.77 | 189.17 | 0.3849 | -876.0 | -733.2 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -22.67 | 77.11 | 3.70 | 188.55 | 0.4021 | -666.0 | -565.5 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -22.25 | 77.07 | 3.66 | 188.62 | 0.3954 | -746.0 | -696.9 | |
| 17.17 | 164.14 | 9.08 | 86.69 | -19.71 | 76.92 | 3.50 | 189.39 | 0.3542 | -1191.1 | -539.6 | |
| 0.94 | 5.89 | 0.50 | 3.13 | -20.31 | 76.93 | 3.52 | 189.13 | 0.3639 | -1069.5 | -838.2 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -22.41 | 76.98 | 3.56 | 188.35 | 0.3977 | -745.0 | -630.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -21.80 | 76.97 | 3.55 | 188.56 | 0.3880 | -733.0 | -652.1 | |
| 0.00 | 5.64 | 0.00 | 3.00 | -20.75 | 76.91 | 3.49 | 188.87 | 0.3710 | -692.0 | -927.7 | |
| 0.00 | 3.84 | 0.00 | 2.07 | -22.12 | 76.91 | 3.49 | 188.30 | 0.3929 | -750.0 | -793.6 | |
| 4.44 | -68.00 | 2.35 | -68.00 | -19.99 | 76.77 | 3.35 | 188.86 | 0.3584 | -965.6 | 999999 | |
| 1.02 | -69.00 | 0.54 | -69.00 | -20.43 | 76.78 | 3.36 | 188.68 | 0.3656 | -959.5 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -21.96 | 76.81 | 3.39 | 188.12 | 0.3901 | -912.0 | -779.9 | |
| 14.86 | -68.00 | 7.84 | -68.00 | -19.33 | 76.72 | 3.31 | 189.05 | 0.3476 | -1368.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -22.47 | 76.76 | 3.34 | 187.81 | 0.3982 | -712.0 | -563.8 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -23.70 | 76.62 | 3.21 | 187.08 | 0.4174 | -758.0 | -567.8 | |
| 5.64 | -68.00 | 2.98 | -68.00 | -19.61 | 76.51 | 3.09 | 188.35 | 0.3516 | -1081.2 | 999999 | |
| 9.74 | 21.61 | 5.20 | 11.54 | -21.04 | 76.50 | 3.09 | 187.75 | 0.3746 | -1098.6 | -773.8 | |
| 0.00 | 4.36 | 0.00 | 2.35 | -22.54 | 76.53 | 3.12 | 187.27 | 0.3988 | -769.0 | -717.7 | |
| 1.02 | -68.00 | 0.54 | -68.00 | -19.39 | 76.38 | 2.96 | 188.10 | 0.3477 | -1047.8 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -21.96 | 76.36 | 2.95 | 187.07 | 0.3892 | -1112.0 | -970.0 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -20.37 | 76.30 | 2.89 | 187.49 | 0.3634 | -801.0 | -644.3 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -22.31 | 76.34 | 2.92 | 186.89 | 0.3948 | -949.0 | -876.9 | |
| 0.00 | 2.31 | 0.00 | 1.23 | -21.29 | 76.19 | 2.78 | 186.88 | 0.3781 | -782.0 | -654.5 | |
| 0.00 | 2.05 | 0.00 | 1.11 | -22.47 | 76.18 | 2.76 | 186.47 | 0.3970 | -672.0 | -541.6 | |
| 0.77 | 3.25 | 0.41 | 1.73 | -21.00 | 76.00 | 2.58 | 186.50 | 0.3731 | -896.8 | -687.9 | |
| 0.00 | 3.07 | 0.00 | 1.68 | -24.09 | 76.02 | 2.60 | 185.66 | 0.4225 | -791.0 | -624.6 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -21.22 | 75.78 | 2.36 | 185.88 | 0.3763 | -865.0 | -732.8 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -24.29 | 75.83 | 2.41 | 185.20 | 0.4253 | -668.0 | -529.5 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -22.18 | 75.50 | 2.09 | 184.97 | 0.3913 | -749.0 | -605.3 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -20.87 | 75.39 | 1.98 | 185.02 | 0.3700 | -898.0 | -836.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -21.83 | 75.37 | 1.96 | 184.74 | 0.3854 | -549.0 | -529.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -21.96 | 75.25 | 1.83 | 184.41 | 0.3873 | -643.0 | -527.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -21.77 | 74.74 | 1.32 | 183.21 | 0.3837 | -578.0 | -460.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
