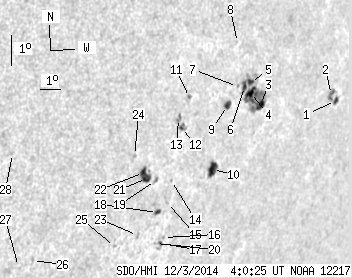

SDO HMI 2014-12-03 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.91 | 121.38 | 38.47 | 105.64 | -16.06 | 125.13 | 53.36 | 249.79 | 0.8233 | 138.2 | 51.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.71 | 8.29 | 1.73 | 8.32 | -15.22 | 131.04 | 59.27 | 252.10 | 0.8736 | 436.6 | 474.7 | |
| 2.48 | -1.00 | 2.48 | -1.00 | -15.03 | 130.71 | 58.94 | 252.25 | 0.8707 | 667.1 | 999999 | |
| 5.64 | 55.09 | 5.08 | 48.92 | -15.30 | 126.80 | 55.03 | 251.15 | 0.8374 | -853.2 | 14.4 | |
| 5.55 | -3.00 | 4.91 | -3.00 | -14.92 | 126.12 | 54.35 | 251.44 | 0.8305 | 618.3 | 999999 | |
| 2.56 | -3.00 | 2.26 | -3.00 | -14.61 | 126.01 | 54.24 | 251.78 | 0.8288 | 621.1 | 999999 | |
| 3.08 | -3.00 | 2.69 | -3.00 | -14.73 | 125.74 | 53.97 | 251.58 | 0.8265 | 706.5 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.89 | -14.73 | 125.37 | 53.60 | 251.50 | 0.8231 | 428.0 | 553.5 | |
| 0.00 | 0.43 | 0.00 | 0.36 | -13.38 | 124.92 | 53.15 | 253.01 | 0.8162 | 299.0 | 336.0 | |
| 3.33 | 4.78 | 2.88 | 4.13 | -15.31 | 125.07 | 53.29 | 250.73 | 0.8214 | 539.9 | 442.5 | |
| 7.86 | 10.34 | 6.86 | 9.02 | -17.29 | 125.07 | 53.29 | 248.38 | 0.8256 | 575.5 | 341.4 | |
| 0.00 | 1.62 | 0.00 | 1.34 | -15.04 | 123.06 | 51.29 | 250.55 | 0.8014 | -354.0 | -310.1 | |
| 1.03 | 4.01 | 0.85 | 3.32 | -15.96 | 122.98 | 51.21 | 249.40 | 0.8028 | -629.7 | -475.7 | |
| 0.00 | 3.59 | 0.00 | 2.95 | -15.68 | 122.74 | 50.96 | 249.68 | 0.7998 | -678.0 | -463.3 | |
| 0.00 | 0.94 | 0.00 | 0.79 | -17.61 | 123.11 | 51.33 | 247.45 | 0.8081 | 273.0 | 306.1 | |
| 0.00 | 1.03 | 0.00 | 0.86 | -18.29 | 123.19 | 51.41 | 246.65 | 0.8106 | 101.0 | 156.2 | |
| 0.00 | 1.11 | 0.00 | 0.95 | -19.39 | 123.46 | 51.69 | 245.42 | 0.8161 | 452.0 | 383.0 | |
| 0.68 | 3.84 | 0.58 | 3.28 | -19.58 | 123.39 | 51.62 | 245.18 | 0.8159 | 727.4 | 502.7 | |
| 1.71 | 2.73 | 1.43 | 2.29 | -18.60 | 122.81 | 51.04 | 246.17 | 0.8079 | 496.5 | 391.7 | |
| 0.00 | 1.96 | 0.00 | 1.62 | -17.60 | 122.31 | 50.54 | 247.22 | 0.8004 | -147.0 | -167.4 | |
| 0.00 | 1.11 | 0.00 | 0.94 | -19.58 | 123.13 | 51.36 | 245.10 | 0.8136 | 616.0 | 495.6 | |
| 4.27 | 12.47 | 3.47 | 10.12 | -17.53 | 121.85 | 50.07 | 247.16 | 0.7957 | -664.2 | -483.7 | |
| 4.01 | -21.00 | 3.25 | -21.00 | -17.34 | 121.63 | 49.86 | 247.33 | 0.7931 | -681.6 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.56 | -19.32 | 122.12 | 50.35 | 245.09 | 0.8034 | 542.0 | 470.0 | |
| 0.00 | 1.45 | 0.00 | 1.16 | -16.81 | 121.01 | 49.23 | 247.79 | 0.7854 | 569.0 | 462.6 | |
| 0.00 | 1.20 | 0.00 | 0.97 | -19.65 | 121.14 | 49.37 | 244.36 | 0.7950 | 682.0 | 632.8 | |
| 0.00 | 1.37 | 0.00 | 1.04 | -20.06 | 117.46 | 45.69 | 242.48 | 0.7602 | -471.0 | -384.7 | |
| 0.00 | 0.34 | 0.00 | 0.26 | -20.24 | 116.90 | 45.13 | 242.02 | 0.7553 | -280.0 | -262.5 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -16.69 | 115.47 | 43.70 | 245.99 | 0.7269 | -639.0 | -549.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
