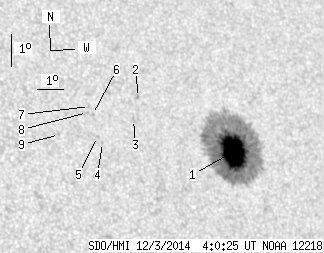

SDO HMI 2014-12-03 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.74 | 312.55 | 33.19 | 204.27 | 16.59 | 109.75 | 37.98 | 295.18 | 0.6539 | -931.2 | -317.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.74 | 303.58 | 33.19 | 198.71 | 16.56 | 109.88 | 38.11 | 295.07 | 0.6554 | -1315.1 | -346.6 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 18.25 | 106.61 | 34.84 | 299.32 | 0.6245 | 661.0 | 553.1 | |
| 0.00 | 1.96 | 0.00 | 1.23 | 17.57 | 106.27 | 34.49 | 298.51 | 0.6167 | 628.0 | 484.8 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 16.87 | 104.96 | 33.19 | 298.25 | 0.5969 | 643.0 | 570.1 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 17.06 | 104.81 | 33.04 | 298.63 | 0.5961 | 630.0 | 550.5 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 17.74 | 104.77 | 33.00 | 299.70 | 0.5994 | 714.0 | 628.6 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 17.99 | 104.71 | 32.94 | 300.12 | 0.6001 | 515.0 | 453.7 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 17.80 | 104.60 | 32.83 | 299.91 | 0.5977 | 703.0 | 634.4 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 17.13 | 103.43 | 31.66 | 299.65 | 0.5794 | 797.0 | 643.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
