SDO HMI 2014-12-03 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.87 | 185.38 | 36.57 | 120.11 | -19.21 | 107.30 | 35.53 | 238.34 | 0.6465 | 50.5 | -97.4 | |
|
previous
or next observation for the same group /

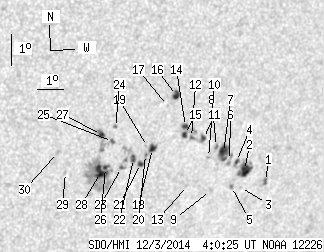

back to the solar disc SDO HMI 2014-12-03 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 2.82 | 0.83 | 1.95 | -20.00 | 111.80 | 40.03 | 239.93 | 0.7007 | 592.5 | 457.5 | |
| 10.25 | 17.17 | 6.98 | 11.69 | -19.65 | 110.83 | 39.06 | 239.88 | 0.6885 | 735.9 | 505.4 | |
| 0.00 | 0.85 | 0.00 | 0.58 | -20.18 | 110.83 | 39.06 | 239.17 | 0.6911 | 429.0 | 418.8 | |
| 1.20 | 3.67 | 0.81 | 2.48 | -19.36 | 110.43 | 38.66 | 240.05 | 0.6825 | 689.6 | 684.2 | |
| 0.00 | 1.88 | 0.00 | 1.28 | -20.15 | 110.45 | 38.68 | 239.00 | 0.6869 | 754.0 | 671.6 | |
| 0.00 | 3.93 | 0.00 | 2.64 | -19.33 | 110.14 | 38.37 | 239.93 | 0.6791 | 642.0 | 569.8 | |
| 9.57 | 13.84 | 6.40 | 9.26 | -19.07 | 109.83 | 38.06 | 240.11 | 0.6744 | 862.9 | 670.8 | |
| 0.00 | 2.05 | 0.00 | 1.36 | -18.88 | 109.50 | 37.73 | 240.18 | 0.6697 | 741.0 | 711.1 | |
| 0.00 | 1.37 | 0.00 | 0.92 | -20.27 | 109.64 | 37.87 | 238.38 | 0.6786 | 103.0 | 167.1 | |
| 0.00 | 1.03 | 0.00 | 0.68 | -19.22 | 109.27 | 37.50 | 239.58 | 0.6689 | -242.0 | -158.8 | |
| 1.96 | 23.58 | 1.29 | 15.41 | -18.63 | 108.92 | 37.15 | 240.20 | 0.6618 | 650.2 | 271.8 | |
| 0.77 | -11.00 | 0.50 | -11.00 | -18.59 | 108.44 | 36.67 | 239.98 | 0.6561 | -531.2 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -20.10 | 108.68 | 36.91 | 238.04 | 0.6671 | 639.0 | 534.7 | |
| 2.05 | -11.00 | 1.33 | -11.00 | -18.24 | 108.12 | 36.35 | 240.27 | 0.6506 | 840.3 | 999999 | |
| 2.31 | -11.00 | 1.50 | -11.00 | -18.49 | 108.15 | 36.37 | 239.93 | 0.6522 | -292.9 | 999999 | |
| 3.59 | 5.64 | 2.30 | 3.62 | -17.27 | 107.55 | 35.78 | 241.32 | 0.6387 | 806.0 | 641.8 | |
| 0.00 | 0.68 | 0.00 | 0.44 | -17.58 | 107.28 | 35.51 | 240.71 | 0.6371 | -199.0 | -223.4 | |
| 3.67 | 8.46 | 2.37 | 5.45 | -18.92 | 107.02 | 35.24 | 238.63 | 0.6416 | -599.6 | -469.2 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -18.86 | 106.81 | 35.04 | 238.59 | 0.6389 | -553.0 | -384.0 | |
| 0.34 | -18.00 | 0.22 | -18.00 | -19.11 | 106.79 | 35.02 | 238.23 | 0.6402 | -714.2 | 999999 | |
| 1.71 | 3.08 | 1.10 | 1.98 | -19.39 | 106.67 | 34.90 | 237.75 | 0.6404 | -710.5 | -533.0 | |
| 2.22 | 15.20 | 1.42 | 9.71 | -19.23 | 106.37 | 34.59 | 237.77 | 0.6360 | -794.6 | -656.2 | |
| 0.68 | -22.00 | 0.44 | -22.00 | -19.51 | 105.98 | 34.20 | 237.12 | 0.6333 | -765.4 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.81 | -18.25 | 105.46 | 33.69 | 238.57 | 0.6196 | -847.0 | -690.2 | |
| 0.77 | 13.67 | 0.49 | 8.59 | -18.69 | 105.44 | 33.67 | 237.93 | 0.6221 | -740.2 | -122.8 | |
| 1.79 | 60.13 | 1.14 | 38.07 | -19.51 | 105.37 | 33.60 | 236.71 | 0.6263 | -867.2 | -390.5 | |
| 2.22 | -25.00 | 1.39 | -25.00 | -18.47 | 104.98 | 33.21 | 237.93 | 0.6153 | 738.2 | 999999 | |
| 9.57 | -26.00 | 6.06 | -26.00 | -19.66 | 105.22 | 33.44 | 236.38 | 0.6256 | -980.7 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -19.65 | 103.91 | 32.13 | 235.44 | 0.6105 | -730.0 | -501.5 | |
| 0.00 | 1.88 | 0.00 | 1.16 | -19.02 | 103.47 | 31.70 | 236.03 | 0.6013 | -635.0 | -512.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
