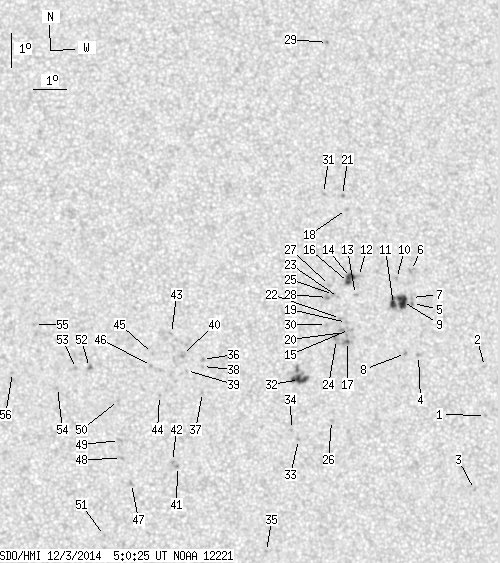

SDO HMI 2014-12-03 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.06 | 122.08 | 11.88 | 62.47 | 4.73 | 84.72 | 13.49 | 287.01 | 0.2460 | -183.3 | -275.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.45 | 2.47 | 90.19 | 18.96 | 275.78 | 0.3277 | -711.0 | -574.3 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 3.92 | 90.19 | 18.96 | 280.17 | 0.3308 | -922.0 | -645.1 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 0.29 | 89.82 | 18.60 | 269.05 | 0.3204 | -752.0 | -652.2 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 4.26 | 88.14 | 16.91 | 282.42 | 0.2984 | -798.0 | -590.2 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 5.80 | 88.00 | 16.77 | 287.53 | 0.3024 | -846.0 | -677.2 | |
| 0.00 | 2.99 | 0.00 | 1.56 | 6.78 | 88.00 | 16.77 | 290.60 | 0.3075 | -899.0 | -692.7 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 5.98 | 87.97 | 16.74 | 288.12 | 0.3028 | -764.0 | -630.1 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 4.32 | 87.74 | 16.51 | 282.90 | 0.2920 | -908.0 | -660.9 | |
| 7.86 | 18.62 | 4.08 | 9.65 | 5.86 | 87.69 | 16.46 | 288.03 | 0.2978 | -1084.8 | -814.6 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 6.54 | 87.52 | 16.30 | 290.38 | 0.2988 | -833.0 | -630.8 | |
| 2.82 | -9.00 | 1.46 | -9.00 | 5.77 | 87.41 | 16.18 | 288.02 | 0.2929 | -1189.9 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 6.61 | 86.35 | 15.13 | 291.98 | 0.2808 | 401.0 | 204.7 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 6.07 | 86.24 | 15.02 | 290.31 | 0.2760 | -908.0 | -687.3 | |
| 3.76 | 7.35 | 1.94 | 3.78 | 6.58 | 86.10 | 14.88 | 292.21 | 0.2768 | 1066.8 | 770.1 | |
| 0.00 | 3.08 | 0.00 | 1.58 | 5.04 | 86.03 | 14.80 | 286.90 | 0.2672 | -791.0 | -715.1 | |
| 1.45 | -14.00 | 0.75 | -14.00 | 6.43 | 86.04 | 14.81 | 291.79 | 0.2748 | 1020.6 | 999999 | |
| 0.51 | 4.19 | 0.26 | 2.15 | 4.68 | 85.96 | 14.73 | 285.67 | 0.2645 | -1096.2 | -903.4 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 8.60 | 86.06 | 14.83 | 298.81 | 0.2901 | -799.0 | -692.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 5.24 | 85.94 | 14.72 | 287.74 | 0.2668 | -769.0 | -617.0 | |
| 0.00 | 3.33 | 0.00 | 1.71 | 4.95 | 85.84 | 14.62 | 286.77 | 0.2638 | -712.0 | -860.4 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 9.02 | 85.95 | 14.72 | 300.26 | 0.2919 | -938.0 | -851.6 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 5.36 | 85.76 | 14.54 | 288.37 | 0.2645 | -864.0 | -644.2 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 5.99 | 85.72 | 14.49 | 290.66 | 0.2672 | -792.0 | -688.5 | |
| 0.00 | 4.78 | 0.00 | 2.45 | 4.74 | 85.62 | 14.40 | 286.24 | 0.2593 | -956.0 | -827.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 6.08 | 85.57 | 14.34 | 291.17 | 0.2653 | -856.0 | -775.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 2.35 | 85.43 | 14.20 | 277.07 | 0.2482 | -807.0 | -677.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 6.34 | 85.45 | 14.23 | 292.27 | 0.2651 | -902.0 | -722.5 | |
| 0.00 | 2.56 | 0.00 | 1.31 | 5.99 | 85.38 | 14.15 | 291.10 | 0.2619 | -1035.0 | -827.0 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 13.63 | 85.73 | 14.50 | 312.80 | 0.3332 | 839.0 | 693.5 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 5.19 | 85.33 | 14.10 | 288.23 | 0.2566 | -853.0 | -765.6 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 9.08 | 85.36 | 14.14 | 301.44 | 0.2840 | -763.0 | -556.9 | |
| 6.66 | 15.21 | 3.39 | 7.75 | 3.56 | 84.47 | 13.25 | 282.71 | 0.2355 | -1097.6 | -928.2 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 1.79 | 84.42 | 13.19 | 275.17 | 0.2301 | -903.0 | -739.1 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 2.08 | 84.21 | 12.98 | 276.55 | 0.2271 | -725.0 | -586.7 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -1.52 | 83.44 | 12.22 | 260.05 | 0.2158 | -822.0 | -583.6 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 4.16 | 81.55 | 10.32 | 289.12 | 0.1900 | 921.0 | 730.1 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 3.19 | 81.53 | 10.31 | 284.11 | 0.1851 | 795.0 | 611.8 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 3.96 | 81.54 | 10.32 | 288.08 | 0.1888 | 861.0 | 636.7 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 3.84 | 81.06 | 9.83 | 288.27 | 0.1803 | 730.0 | 585.7 | |
| 0.00 | 4.10 | 0.00 | 2.06 | 4.31 | 80.95 | 9.72 | 290.97 | 0.1811 | 953.0 | 772.7 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 1.00 | 80.77 | 9.54 | 272.34 | 0.1666 | 903.0 | 744.3 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 1.15 | 80.62 | 9.39 | 273.28 | 0.1642 | 795.0 | 740.4 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 4.94 | 80.63 | 9.40 | 294.85 | 0.1801 | 744.0 | 545.8 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 3.10 | 80.24 | 9.02 | 285.50 | 0.1631 | 844.0 | 687.0 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 4.34 | 80.05 | 8.82 | 293.05 | 0.1669 | 816.0 | 668.1 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 3.99 | 80.01 | 8.79 | 291.12 | 0.1641 | 840.0 | 715.0 | |
| 0.00 | 2.14 | 0.00 | 1.07 | 0.50 | 79.39 | 8.16 | 269.21 | 0.1427 | 780.0 | 641.0 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 1.24 | 79.09 | 7.87 | 274.57 | 0.1379 | 931.0 | 690.6 | |
| 0.00 | 1.88 | 0.00 | 0.94 | 1.77 | 79.04 | 7.81 | 278.47 | 0.1380 | 1003.0 | 838.3 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 2.96 | 79.01 | 7.79 | 286.79 | 0.1420 | 878.0 | 635.5 | |
| 0.00 | 0.68 | 0.00 | 0.34 | -1.03 | 78.58 | 7.36 | 257.34 | 0.1318 | 870.0 | 716.2 | |
| 0.00 | 2.22 | 0.00 | 1.11 | 3.94 | 78.16 | 6.93 | 295.67 | 0.1342 | 1021.0 | 798.3 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 3.91 | 77.77 | 6.54 | 296.77 | 0.1280 | 853.0 | 653.2 | |
| 0.00 | 0.77 | 0.00 | 0.38 | 3.35 | 77.20 | 5.97 | 294.61 | 0.1148 | 846.0 | 602.2 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 5.21 | 76.53 | 5.30 | 311.02 | 0.1226 | 963.0 | 776.1 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 3.79 | 75.86 | 4.64 | 304.44 | 0.0983 | 947.0 | 678.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
