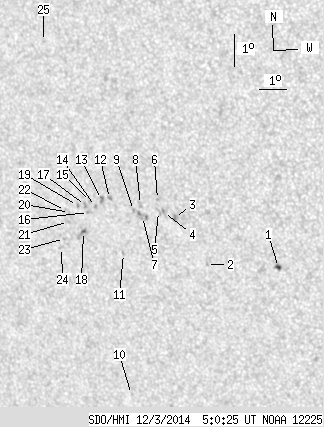

SDO HMI 2014-12-03 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.39 | 48.94 | 1.45 | 30.36 | -14.99 | 37.33 | -33.89 | 116.44 | 0.6038 | -71.0 | -43.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 3.08 | 0.96 | 1.81 | -16.42 | 42.68 | -28.54 | 122.47 | 0.5455 | 901.4 | 703.1 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -16.34 | 40.13 | -31.09 | 120.35 | 0.5765 | 716.0 | 596.6 | |
| 0.00 | 2.56 | 0.00 | 1.55 | -14.89 | 39.23 | -31.99 | 117.44 | 0.5792 | 860.0 | 775.2 | |
| 0.00 | 2.22 | 0.00 | 1.35 | -14.74 | 38.86 | -32.37 | 116.96 | 0.5831 | 841.0 | 571.6 | |
| 0.00 | 1.96 | 0.00 | 1.20 | -14.71 | 38.68 | -32.54 | 116.80 | 0.5851 | 681.0 | 518.6 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -14.34 | 38.71 | -32.52 | 116.23 | 0.5828 | 848.0 | 686.5 | |
| 0.00 | 6.32 | 0.00 | 3.88 | -14.87 | 38.07 | -33.15 | 116.66 | 0.5937 | 562.0 | 486.5 | |
| 0.00 | 2.65 | 0.00 | 1.62 | -14.50 | 38.06 | -33.16 | 116.08 | 0.5919 | 294.0 | 392.9 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -14.69 | 37.77 | -33.45 | 116.19 | 0.5965 | 425.0 | 246.2 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -20.42 | 36.45 | -34.77 | 123.76 | 0.6452 | 516.0 | 349.1 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -16.01 | 37.16 | -34.07 | 117.85 | 0.6113 | 507.0 | 463.9 | |
| 0.00 | 1.96 | 0.00 | 1.22 | -14.32 | 36.95 | -34.27 | 115.14 | 0.6050 | -895.0 | -690.5 | |
| 0.00 | 2.90 | 0.00 | 1.81 | -14.36 | 36.65 | -34.57 | 115.02 | 0.6090 | -780.0 | -714.5 | |
| 0.00 | 1.37 | 0.00 | 0.86 | -14.57 | 36.39 | -34.84 | 115.20 | 0.6133 | -851.0 | -747.6 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -14.42 | 36.23 | -35.00 | 114.88 | 0.6146 | -576.0 | -559.6 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -14.76 | 36.09 | -35.13 | 115.32 | 0.6179 | -843.0 | -679.3 | |
| 0.00 | 2.39 | 0.00 | 1.50 | -14.54 | 36.02 | -35.21 | 114.95 | 0.6178 | -729.0 | -618.6 | |
| 0.77 | 4.61 | 0.49 | 2.92 | -15.34 | 35.79 | -35.43 | 116.03 | 0.6245 | -907.4 | -722.8 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -14.54 | 35.72 | -35.51 | 114.79 | 0.6216 | -650.0 | -476.5 | |
| 0.00 | 0.68 | 0.00 | 0.43 | -14.76 | 35.38 | -35.85 | 114.93 | 0.6268 | -666.0 | -650.9 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -15.04 | 35.29 | -35.94 | 115.30 | 0.6293 | -613.0 | -527.7 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -14.70 | 35.24 | -35.99 | 114.77 | 0.6283 | -555.0 | -433.9 | |
| 0.00 | 1.28 | 0.00 | 0.82 | -15.56 | 35.03 | -36.20 | 115.94 | 0.6350 | -544.0 | -454.4 | |
| 0.00 | 1.62 | 0.00 | 1.04 | -15.84 | 34.85 | -36.37 | 116.25 | 0.6384 | -478.0 | -448.2 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -9.58 | 35.23 | -36.00 | 106.80 | 0.6077 | 609.0 | 456.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
