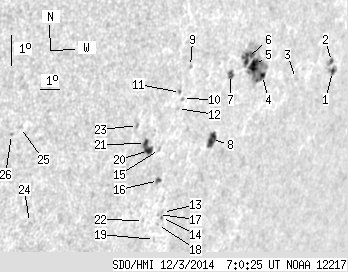

SDO HMI 2014-12-03 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.61 | 113.12 | 35.30 | 103.19 | -15.87 | 125.44 | 55.30 | 250.49 | 0.8404 | 189.8 | 6.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.88 | 5.47 | 2.00 | 5.82 | -15.22 | 131.14 | 61.01 | 252.42 | 0.8873 | 384.1 | 349.1 | |
| 1.37 | 3.42 | 1.44 | 3.60 | -14.91 | 130.93 | 60.79 | 252.73 | 0.8853 | 609.1 | 547.1 | |
| 0.00 | 1.62 | 0.00 | 1.62 | -15.41 | 128.95 | 58.82 | 251.81 | 0.8702 | 232.0 | 183.4 | |
| 2.05 | 56.38 | 1.94 | 52.30 | -15.30 | 126.99 | 56.85 | 251.55 | 0.8534 | -696.9 | -82.3 | |
| 7.94 | -4.00 | 7.37 | -4.00 | -14.98 | 126.41 | 56.27 | 251.80 | 0.8479 | 365.4 | 999999 | |
| 7.26 | -4.00 | 6.65 | -4.00 | -14.73 | 125.93 | 55.79 | 251.99 | 0.8432 | 690.0 | 999999 | |
| 2.39 | 4.44 | 2.16 | 4.01 | -15.25 | 125.20 | 55.07 | 251.23 | 0.8376 | 657.0 | 523.4 | |
| 7.18 | 10.17 | 6.51 | 9.22 | -17.25 | 125.01 | 54.88 | 248.84 | 0.8398 | 554.1 | 303.7 | |
| 0.00 | 1.37 | 0.00 | 1.17 | -14.98 | 123.01 | 52.87 | 251.04 | 0.8166 | -324.0 | -344.4 | |
| 0.00 | 1.20 | 0.00 | 1.03 | -15.96 | 122.96 | 52.82 | 249.85 | 0.8182 | -501.0 | -465.3 | |
| 0.00 | 1.45 | 0.00 | 1.24 | -15.78 | 122.79 | 52.65 | 250.03 | 0.8162 | -592.0 | -470.0 | |
| 0.00 | 1.54 | 0.00 | 1.31 | -16.27 | 122.82 | 52.68 | 249.44 | 0.8176 | -54.0 | -90.7 | |
| 0.00 | 1.37 | 0.00 | 1.21 | -19.52 | 123.44 | 53.30 | 245.77 | 0.8309 | 414.0 | 287.2 | |
| 0.00 | 1.03 | 0.00 | 0.91 | -19.68 | 123.46 | 53.32 | 245.59 | 0.8315 | 452.0 | 469.1 | |
| 0.00 | 1.62 | 0.00 | 1.38 | -17.54 | 122.40 | 52.27 | 247.82 | 0.8166 | -178.0 | -178.5 | |
| 1.45 | 3.16 | 1.26 | 2.73 | -18.51 | 122.76 | 52.63 | 246.77 | 0.8223 | 595.1 | 442.8 | |
| 0.00 | 0.85 | 0.00 | 0.75 | -19.58 | 123.25 | 53.12 | 245.65 | 0.8294 | 610.0 | 498.9 | |
| 0.00 | 0.77 | 0.00 | 0.68 | -19.90 | 123.35 | 53.22 | 245.31 | 0.8311 | 552.0 | 489.4 | |
| 0.00 | 0.60 | 0.00 | 0.53 | -20.37 | 123.43 | 53.29 | 244.78 | 0.8330 | 428.0 | 314.3 | |
| 4.53 | 10.25 | 3.82 | 8.62 | -17.56 | 121.86 | 51.72 | 247.63 | 0.8116 | -598.0 | -481.7 | |
| 2.56 | -20.00 | 2.15 | -20.00 | -17.34 | 121.62 | 51.48 | 247.83 | 0.8087 | -764.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.96 | -19.76 | 122.56 | 52.42 | 245.23 | 0.8236 | 437.0 | 333.4 | |
| 0.00 | 1.88 | 0.00 | 1.55 | -16.78 | 121.01 | 50.87 | 248.33 | 0.8014 | 455.0 | 375.0 | |
| 0.00 | 0.68 | 0.00 | 0.53 | -19.77 | 117.00 | 46.86 | 243.32 | 0.7708 | -244.0 | -272.1 | |
| 0.00 | 1.54 | 0.00 | 1.14 | -16.79 | 115.57 | 45.43 | 246.55 | 0.7458 | -653.0 | -556.7 | |
| 0.00 | 1.20 | 0.00 | 0.88 | -17.00 | 115.23 | 45.10 | 246.15 | 0.7430 | -721.0 | -565.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
