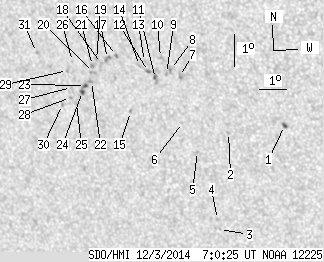

SDO HMI 2014-12-03 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.34 | 45.46 | 2.04 | 27.85 | -15.24 | 37.40 | -32.74 | 117.56 | 0.5907 | -39.2 | -70.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.03 | 2.39 | 0.60 | 1.40 | -16.39 | 42.68 | -27.45 | 123.36 | 0.5317 | 911.4 | 691.4 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -16.62 | 40.68 | -29.46 | 122.03 | 0.5580 | 128.0 | 281.3 | |
| 0.00 | 0.51 | 0.00 | 0.31 | -19.65 | 39.78 | -30.36 | 125.92 | 0.5901 | 625.0 | 490.0 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -19.33 | 39.77 | -30.37 | 125.46 | 0.5879 | 702.0 | 582.9 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -17.21 | 39.46 | -30.67 | 122.01 | 0.5769 | 707.0 | 544.7 | |
| 0.00 | 0.68 | 0.00 | 0.41 | -16.31 | 39.09 | -31.05 | 120.33 | 0.5757 | 464.0 | 410.8 | |
| 0.00 | 1.96 | 0.00 | 1.18 | -14.90 | 39.22 | -30.92 | 118.17 | 0.5654 | 862.0 | 758.5 | |
| 0.00 | 2.05 | 0.00 | 1.23 | -14.68 | 38.93 | -31.20 | 117.62 | 0.5678 | 671.0 | 646.0 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -14.81 | 38.77 | -31.37 | 117.71 | 0.5706 | 805.0 | 711.0 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -14.32 | 38.63 | -31.50 | 116.83 | 0.5696 | 816.0 | 649.2 | |
| 0.00 | 3.84 | 0.00 | 2.33 | -14.96 | 38.35 | -31.79 | 117.67 | 0.5769 | 650.0 | 602.1 | |
| 0.43 | 1.71 | 0.26 | 1.04 | -14.75 | 38.13 | -32.00 | 117.19 | 0.5784 | 754.6 | 567.1 | |
| 0.00 | 0.60 | 0.00 | 0.36 | -14.44 | 38.04 | -32.10 | 116.64 | 0.5779 | 654.0 | 542.7 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -14.57 | 37.84 | -32.30 | 116.71 | 0.5812 | 473.0 | 371.4 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -15.98 | 37.26 | -32.88 | 118.55 | 0.5964 | 660.0 | 552.7 | |
| 0.00 | 1.28 | 0.00 | 0.78 | -14.26 | 37.05 | -33.08 | 115.74 | 0.5896 | -771.0 | -721.5 | |
| 0.00 | 3.08 | 0.00 | 1.89 | -14.36 | 36.71 | -33.43 | 115.67 | 0.5944 | -806.0 | -729.8 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -14.51 | 36.46 | -33.68 | 115.77 | 0.5984 | -944.0 | -725.1 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -14.39 | 36.30 | -33.84 | 115.48 | 0.5998 | -829.0 | -652.4 | |
| 0.00 | 2.39 | 0.00 | 1.48 | -14.79 | 36.11 | -34.02 | 116.00 | 0.6041 | -814.0 | -656.6 | |
| 0.00 | 1.71 | 0.00 | 1.06 | -14.58 | 36.12 | -34.02 | 115.66 | 0.6030 | -817.0 | -740.5 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -15.07 | 35.99 | -34.15 | 116.35 | 0.6071 | -852.0 | -803.4 | |
| 0.94 | 4.70 | 0.59 | 2.94 | -15.19 | 35.74 | -34.39 | 116.39 | 0.6108 | -875.2 | -749.3 | |
| 0.94 | -23.00 | 0.59 | -23.00 | -15.38 | 35.60 | -34.54 | 116.59 | 0.6136 | -829.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -15.75 | 35.30 | -34.84 | 116.97 | 0.6192 | -662.0 | -567.8 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -14.46 | 35.40 | -34.74 | 115.07 | 0.6115 | -582.0 | -472.4 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -15.26 | 35.21 | -34.93 | 116.18 | 0.6178 | -568.0 | -500.8 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -15.56 | 35.11 | -35.02 | 116.59 | 0.6205 | -585.0 | -493.9 | |
| 0.00 | 1.37 | 0.00 | 0.86 | -14.74 | 35.16 | -34.98 | 115.36 | 0.6158 | -498.0 | -438.9 | |
| 0.00 | 0.94 | 0.00 | 0.60 | -15.78 | 34.77 | -35.37 | 116.71 | 0.6259 | -484.0 | -456.8 | |
| 0.00 | 0.68 | 0.00 | 0.43 | -14.19 | 34.10 | -36.04 | 113.96 | 0.6265 | -675.0 | -594.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
