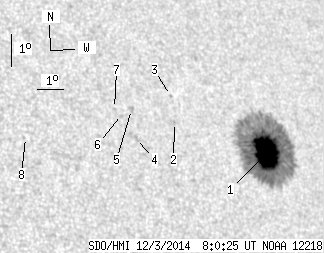

SDO HMI 2014-12-03 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.11 | 308.03 | 35.14 | 207.44 | 16.59 | 109.70 | 40.11 | 294.23 | 0.6795 | -994.1 | -287.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.11 | 297.86 | 35.14 | 200.98 | 16.56 | 109.85 | 40.26 | 294.11 | 0.6811 | -1304.0 | -318.0 | |
| 0.00 | 1.28 | 0.00 | 0.83 | 17.51 | 106.44 | 36.85 | 297.11 | 0.6448 | 620.0 | 475.1 | |
| 0.00 | 1.20 | 0.00 | 0.78 | 18.34 | 106.49 | 36.90 | 298.29 | 0.6495 | 574.0 | 513.1 | |
| 0.00 | 2.65 | 0.00 | 1.67 | 17.02 | 104.87 | 35.28 | 297.26 | 0.6235 | 623.0 | 554.3 | |
| 0.00 | 3.16 | 0.00 | 2.01 | 17.92 | 104.88 | 35.29 | 298.58 | 0.6283 | 500.0 | 467.7 | |
| 0.00 | 0.68 | 0.00 | 0.43 | 17.77 | 104.47 | 34.88 | 298.60 | 0.6225 | 534.0 | 554.6 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 17.95 | 104.24 | 34.65 | 299.01 | 0.6208 | 520.0 | 474.2 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 17.08 | 100.77 | 31.18 | 299.94 | 0.5733 | 562.0 | 569.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
