SDO HMI 2014-12-03 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.07 | 0.00 | 2.46 | 12.68 | 18.36 | -50.68 | 74.11 | 0.7874 | -471.5 | -435.8 | |
|
previous
or next observation for the same group /

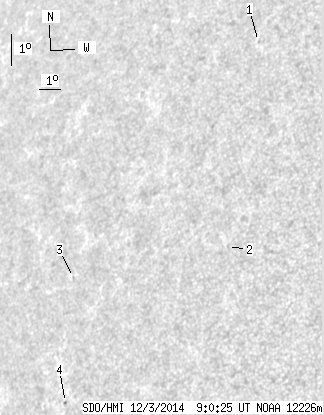

back to the solar disc SDO HMI 2014-12-03 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.51 | 0.00 | 0.39 | 19.93 | 22.29 | -46.75 | 63.98 | 0.7643 | -452.0 | -397.3 | |
| 0.00 | 0.60 | 0.00 | 0.44 | 13.61 | 22.90 | -46.14 | 71.95 | 0.7394 | -450.0 | -405.3 | |
| 0.00 | 0.94 | 0.00 | 0.79 | 12.63 | 15.91 | -53.13 | 74.77 | 0.8113 | -417.0 | -360.7 | |
| 0.00 | 1.02 | 0.00 | 0.84 | 8.87 | 16.45 | -52.59 | 79.33 | 0.8009 | -567.0 | -540.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
