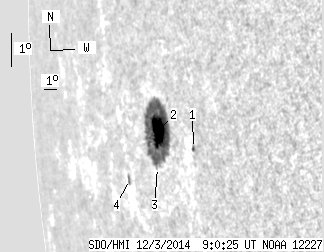

SDO HMI 2014-12-03 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.01 | 122.73 | 28.99 | 170.96 | -3.89 | 0.11 | -68.94 | 94.39 | 0.9353 | 398.7 | 49.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 1.88 | 0.63 | 2.32 | -4.34 | 2.82 | -66.23 | 95.00 | 0.9177 | 447.8 | 378.1 | |
| 20.50 | 116.76 | 28.36 | 162.27 | -3.83 | 0.16 | -68.89 | 94.33 | 0.9350 | 437.8 | 54.1 | |
| 0.00 | 1.02 | 0.00 | 1.44 | -4.93 | 359.85 | -69.20 | 95.50 | 0.9372 | -102.0 | -65.3 | |
| 0.00 | 3.07 | 0.00 | 4.93 | -5.31 | 357.22 | -71.83 | 95.78 | 0.9523 | -238.0 | -158.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
