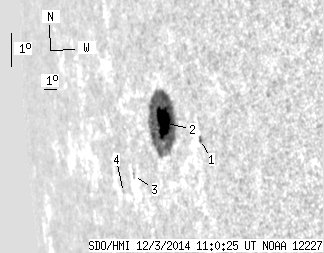

SDO HMI 2014-12-03 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.33 | 128.61 | 26.79 | 170.67 | -3.90 | 0.10 | -67.86 | 94.45 | 0.9284 | 387.9 | 53.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.22 | 0.00 | 2.63 | -4.33 | 2.84 | -65.12 | 95.04 | 0.9099 | 570.0 | 453.1 | |
| 20.33 | 123.66 | 26.79 | 163.84 | -3.85 | 0.14 | -67.82 | 94.40 | 0.9282 | 423.9 | 51.9 | |
| 0.00 | 1.88 | 0.00 | 2.83 | -5.46 | 357.23 | -70.72 | 95.98 | 0.9462 | -312.0 | -193.6 | |
| 0.00 | 0.85 | 0.00 | 1.37 | -5.97 | 356.14 | -71.82 | 96.48 | 0.9524 | -57.0 | -92.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
