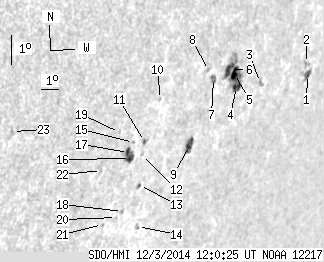

SDO HMI 2014-12-03 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.72 | 95.03 | 33.45 | 94.37 | -15.97 | 125.88 | 58.48 | 251.05 | 0.8674 | 130.1 | 124.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.07 | 8.03 | 3.62 | 9.43 | -15.11 | 131.41 | 64.00 | 253.02 | 0.9091 | 398.9 | 269.2 | |
| 0.00 | 3.42 | 0.00 | 3.98 | -14.77 | 131.15 | 63.74 | 253.35 | 0.9069 | 564.0 | 453.2 | |
| 0.00 | 2.65 | 0.00 | 2.82 | -15.32 | 128.37 | 60.97 | 252.31 | 0.8871 | -482.0 | -356.1 | |
| 4.78 | 40.39 | 4.87 | 40.66 | -15.43 | 126.93 | 59.52 | 251.93 | 0.8759 | -630.6 | 49.1 | |
| 5.98 | -4.00 | 6.02 | -4.00 | -15.03 | 126.62 | 59.22 | 252.33 | 0.8728 | 239.5 | 999999 | |
| 6.23 | -4.00 | 6.21 | -4.00 | -14.90 | 126.27 | 58.86 | 252.41 | 0.8697 | 664.8 | 999999 | |
| 0.00 | 4.10 | 0.00 | 4.00 | -15.17 | 125.44 | 58.03 | 251.95 | 0.8633 | 677.0 | 536.5 | |
| 0.00 | 1.54 | 0.00 | 1.48 | -14.92 | 125.04 | 57.64 | 252.16 | 0.8595 | 617.0 | 506.9 | |
| 6.06 | 9.14 | 5.90 | 8.89 | -17.23 | 125.00 | 57.59 | 249.50 | 0.8629 | 499.7 | 289.4 | |
| 0.00 | 0.85 | 0.00 | 0.78 | -15.79 | 122.72 | 55.31 | 250.66 | 0.8407 | -373.0 | -326.0 | |
| 0.68 | 2.13 | 0.62 | 1.94 | -17.08 | 122.40 | 54.99 | 249.08 | 0.8404 | -436.1 | -357.2 | |
| 0.00 | 0.94 | 0.00 | 0.86 | -17.48 | 122.47 | 55.07 | 248.62 | 0.8418 | -121.0 | -95.5 | |
| 0.43 | 1.79 | 0.39 | 1.66 | -18.45 | 122.76 | 55.36 | 247.57 | 0.8464 | 380.4 | 346.6 | |
| 0.00 | 2.13 | 0.00 | 2.02 | -19.75 | 123.31 | 55.90 | 246.23 | 0.8537 | 520.0 | 437.4 | |
| 0.00 | 0.85 | 0.00 | 0.76 | -17.11 | 121.82 | 54.41 | 248.91 | 0.8353 | -361.0 | -354.0 | |
| 3.84 | 10.08 | 3.45 | 9.03 | -17.60 | 121.88 | 54.47 | 248.34 | 0.8368 | -544.8 | -438.0 | |
| 2.65 | -16.00 | 2.37 | -16.00 | -17.41 | 121.69 | 54.28 | 248.51 | 0.8347 | -704.4 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.56 | -19.26 | 122.23 | 54.82 | 246.50 | 0.8435 | 595.0 | 533.0 | |
| 0.00 | 0.94 | 0.00 | 0.82 | -16.79 | 120.95 | 53.54 | 249.06 | 0.8266 | 302.0 | 286.7 | |
| 0.00 | 0.85 | 0.00 | 0.78 | -19.45 | 121.99 | 54.58 | 246.22 | 0.8419 | 427.0 | 383.5 | |
| 0.00 | 1.02 | 0.00 | 0.92 | -19.66 | 121.34 | 53.93 | 245.80 | 0.8367 | 488.0 | 529.2 | |
| 0.00 | 0.51 | 0.00 | 0.45 | -17.96 | 120.50 | 53.09 | 247.55 | 0.8252 | 467.0 | 471.7 | |
| 0.00 | 1.96 | 0.00 | 1.53 | -16.70 | 115.65 | 48.24 | 247.64 | 0.7749 | -618.0 | -407.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
