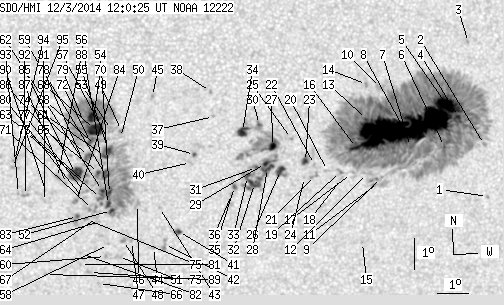

SDO HMI 2014-12-03 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 319.44 | 1669.08 | 177.16 | 925.51 | -19.98 | 84.12 | 16.71 | 216.97 | 0.4488 | 491.5 | 158.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.69 | -21.85 | 90.04 | 22.63 | 223.16 | 0.5243 | -757.0 | -726.0 | |
| 0.00 | 1.88 | 0.00 | 1.08 | -20.19 | 89.67 | 22.27 | 225.13 | 0.5039 | -187.0 | -143.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -16.99 | 88.71 | 21.30 | 229.06 | 0.4619 | -718.0 | -527.5 | |
| 1.71 | 1058.18 | 0.97 | 593.53 | -19.30 | 88.67 | 21.26 | 225.22 | 0.4841 | 856.6 | 397.9 | |
| 24.68 | -4.00 | 13.88 | -4.00 | -18.96 | 88.25 | 20.85 | 225.23 | 0.4761 | 1288.1 | 999999 | |
| 0.85 | -4.00 | 0.48 | -4.00 | -20.25 | 88.33 | 20.92 | 223.33 | 0.4902 | 706.7 | 999999 | |
| 1.54 | -4.00 | 0.87 | -4.00 | -20.24 | 87.18 | 19.78 | 221.80 | 0.4782 | 78.6 | 999999 | |
| 182.48 | -4.00 | 102.21 | -4.00 | -19.64 | 86.87 | 19.46 | 222.27 | 0.4685 | 1506.1 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -21.22 | 86.34 | 18.93 | 219.19 | 0.4807 | 694.0 | 449.1 | |
| 0.00 | 5.89 | 0.00 | 3.26 | -18.38 | 85.96 | 18.56 | 222.94 | 0.4452 | 342.0 | 293.6 | |
| 0.00 | 9.99 | 0.00 | 5.64 | -21.38 | 86.26 | 18.85 | 218.85 | 0.4817 | 47.0 | 312.8 | |
| 0.00 | 4.18 | 0.00 | 2.35 | -21.09 | 85.85 | 18.45 | 218.67 | 0.4745 | 147.0 | 100.2 | |
| 0.26 | -4.00 | 0.14 | -4.00 | -19.38 | 85.61 | 18.21 | 220.83 | 0.4527 | 1602.3 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.99 | -18.28 | 85.49 | 18.09 | 222.38 | 0.4391 | 740.0 | 584.8 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -23.30 | 85.99 | 18.58 | 215.88 | 0.5013 | 812.0 | 669.6 | |
| 4.44 | -4.00 | 2.47 | -4.00 | -20.26 | 85.39 | 17.98 | 219.17 | 0.4604 | 1037.2 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -21.09 | 85.32 | 17.91 | 217.88 | 0.4693 | 422.0 | 539.7 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -21.25 | 85.01 | 17.60 | 217.19 | 0.4682 | 180.0 | 214.1 | |
| 0.00 | 2.56 | 0.00 | 1.43 | -21.02 | 84.95 | 17.54 | 217.41 | 0.4650 | 888.0 | 693.4 | |
| 0.00 | 2.05 | 0.00 | 1.14 | -20.99 | 84.51 | 17.10 | 216.78 | 0.4606 | 169.0 | 122.7 | |
| 0.00 | 3.84 | 0.00 | 2.14 | -21.15 | 84.10 | 16.69 | 215.91 | 0.4586 | -447.0 | -521.9 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -20.80 | 84.06 | 16.65 | 216.34 | 0.4540 | -474.0 | -303.1 | |
| 2.73 | 5.29 | 1.51 | 2.93 | -20.70 | 83.75 | 16.35 | 215.98 | 0.4500 | -932.5 | -667.8 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -21.21 | 83.78 | 16.37 | 215.31 | 0.4565 | -816.0 | -640.9 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -19.97 | 83.22 | 15.81 | 216.13 | 0.4361 | -550.0 | -449.3 | |
| 4.61 | 9.65 | 2.55 | 5.34 | -20.98 | 82.96 | 15.55 | 214.28 | 0.4464 | 839.9 | 389.1 | |
| 4.27 | 66.26 | 2.34 | 36.26 | -20.22 | 82.62 | 15.21 | 214.75 | 0.4338 | 1081.9 | 257.1 | |
| 4.95 | 55.93 | 2.73 | 30.84 | -20.92 | 82.53 | 15.12 | 213.63 | 0.4418 | 1044.2 | 615.1 | |
| 2.05 | -28.00 | 1.13 | -28.00 | -20.76 | 82.44 | 15.04 | 213.71 | 0.4390 | 1022.0 | 999999 | |
| 0.85 | -27.00 | 0.47 | -27.00 | -19.52 | 82.13 | 14.72 | 214.89 | 0.4206 | -758.3 | 999999 | |
| 0.77 | -28.00 | 0.42 | -28.00 | -20.88 | 82.16 | 14.76 | 213.05 | 0.4382 | 1147.4 | 999999 | |
| 6.32 | -28.00 | 3.49 | -28.00 | -21.39 | 82.15 | 14.74 | 212.36 | 0.4446 | 773.4 | 999999 | |
| 1.96 | -28.00 | 1.08 | -28.00 | -21.17 | 81.90 | 14.49 | 212.21 | 0.4396 | 884.1 | 999999 | |
| 6.40 | -27.00 | 3.49 | -27.00 | -19.74 | 81.60 | 14.19 | 213.62 | 0.4186 | -922.7 | 999999 | |
| 0.85 | 2.82 | 0.47 | 1.55 | -21.49 | 81.50 | 14.10 | 211.11 | 0.4405 | 955.2 | 749.4 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -21.74 | 81.43 | 14.02 | 210.66 | 0.4432 | 919.0 | 704.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -19.27 | 80.62 | 13.22 | 212.45 | 0.4039 | -837.0 | -638.2 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -18.48 | 80.46 | 13.06 | 213.28 | 0.3922 | -796.0 | -688.0 | |
| 0.68 | 1.71 | 0.37 | 0.93 | -20.46 | 80.11 | 12.70 | 209.85 | 0.4157 | -702.0 | -551.7 | |
| 0.00 | 2.39 | 0.00 | 1.30 | -20.72 | 80.00 | 12.59 | 209.32 | 0.4182 | 805.0 | 606.6 | |
| 1.96 | 3.59 | 1.09 | 1.98 | -22.92 | 79.80 | 12.40 | 206.38 | 0.4469 | -867.6 | -642.8 | |
| 0.00 | 4.78 | 0.00 | 2.65 | -23.34 | 79.38 | 11.97 | 205.17 | 0.4498 | -542.0 | -593.6 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -22.15 | 79.11 | 11.71 | 205.94 | 0.4314 | 856.0 | 696.0 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -23.44 | 79.03 | 11.62 | 204.43 | 0.4488 | -794.0 | -607.5 | |
| 0.00 | 2.05 | 0.00 | 1.10 | -18.63 | 78.63 | 11.22 | 209.26 | 0.3788 | -971.0 | -761.8 | |
| 0.00 | 4.27 | 0.00 | 2.33 | -22.05 | 78.39 | 10.98 | 204.65 | 0.4251 | 691.0 | 489.6 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -23.24 | 78.29 | 10.88 | 203.25 | 0.4414 | -760.0 | -560.1 | |
| 0.00 | 2.22 | 0.00 | 1.22 | -23.21 | 78.02 | 10.62 | 202.78 | 0.4393 | -851.0 | -728.7 | |
| 0.00 | 2.90 | 0.00 | 1.56 | -19.70 | 77.71 | 10.30 | 205.91 | 0.3869 | -951.0 | -720.4 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -19.92 | 77.69 | 10.28 | 205.61 | 0.3900 | -525.0 | -438.4 | |
| 0.00 | 3.67 | 0.00 | 2.03 | -23.72 | 77.90 | 10.49 | 202.06 | 0.4459 | -454.0 | -415.6 | |
| 1.96 | 169.50 | 1.07 | 91.93 | -22.24 | 77.56 | 10.15 | 202.82 | 0.4225 | -759.6 | -325.8 | |
| 0.00 | 5.47 | 0.00 | 2.93 | -19.66 | 77.39 | 9.98 | 205.25 | 0.3842 | -644.0 | -585.1 | |
| 3.16 | -52.00 | 1.72 | -52.00 | -21.69 | 77.46 | 10.05 | 203.16 | 0.4140 | -891.2 | 999999 | |
| 5.04 | -52.00 | 2.71 | -52.00 | -20.33 | 77.33 | 9.93 | 204.37 | 0.3934 | -1071.7 | 999999 | |
| 2.39 | -52.00 | 1.30 | -52.00 | -22.05 | 77.45 | 10.04 | 202.79 | 0.4191 | -982.6 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -19.98 | 77.31 | 9.90 | 204.72 | 0.3883 | -807.0 | -704.0 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -23.33 | 77.54 | 10.14 | 201.74 | 0.4382 | -725.0 | -603.7 | |
| 4.27 | -52.00 | 2.31 | -52.00 | -21.09 | 77.29 | 9.88 | 203.44 | 0.4042 | -972.8 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -23.72 | 77.47 | 10.07 | 201.25 | 0.4434 | -673.0 | -602.0 | |
| 2.48 | -52.00 | 1.33 | -52.00 | -20.48 | 77.21 | 9.81 | 203.94 | 0.3949 | -1133.8 | 999999 | |
| 1.54 | -52.00 | 0.83 | -52.00 | -21.60 | 77.22 | 9.82 | 202.78 | 0.4112 | -1203.0 | 999999 | |
| 1.11 | -52.00 | 0.60 | -52.00 | -21.85 | 77.18 | 9.77 | 202.43 | 0.4146 | -1036.2 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -22.59 | 77.20 | 9.79 | 201.75 | 0.4254 | -582.0 | -485.4 | |
| 1.28 | -52.00 | 0.69 | -52.00 | -21.02 | 77.06 | 9.65 | 203.03 | 0.4018 | -1112.9 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -24.60 | 77.31 | 9.91 | 200.19 | 0.4552 | -765.0 | -621.4 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -22.46 | 77.12 | 9.71 | 201.72 | 0.4231 | -646.0 | -537.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -20.17 | 76.91 | 9.50 | 203.62 | 0.3883 | -985.0 | -900.5 | |
| 15.29 | 144.14 | 8.18 | 76.96 | -19.66 | 76.85 | 9.44 | 204.05 | 0.3805 | -1193.1 | -613.2 | |
| 8.62 | -69.00 | 4.60 | -69.00 | -19.28 | 76.79 | 9.38 | 204.37 | 0.3747 | -1384.4 | 999999 | |
| 0.00 | 5.55 | 0.00 | 3.02 | -22.20 | 76.94 | 9.53 | 201.60 | 0.4183 | -417.0 | -734.7 | |
| 2.65 | -69.00 | 1.42 | -69.00 | -20.04 | 76.74 | 9.33 | 203.39 | 0.3854 | -1004.5 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.09 | -24.24 | 76.99 | 9.58 | 199.88 | 0.4483 | -711.0 | -565.7 | |
| 2.48 | 5.81 | 1.33 | 3.12 | -20.51 | 76.70 | 9.30 | 202.80 | 0.3921 | -1088.3 | -893.5 | |
| 0.00 | 1.79 | 0.00 | 0.98 | -22.52 | 76.77 | 9.36 | 200.95 | 0.4220 | -865.0 | -735.0 | |
| 0.00 | 1.96 | 0.00 | 1.06 | -21.34 | 76.66 | 9.25 | 201.86 | 0.4040 | -882.0 | -791.7 | |
| 0.00 | 3.07 | 0.00 | 1.67 | -21.63 | 76.65 | 9.24 | 201.55 | 0.4081 | -867.0 | -806.7 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -20.77 | 76.59 | 9.19 | 202.29 | 0.3952 | -746.0 | -666.1 | |
| 0.68 | -69.00 | 0.36 | -69.00 | -19.41 | 76.48 | 9.07 | 203.52 | 0.3744 | -1000.1 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -21.85 | 76.63 | 9.22 | 201.29 | 0.4113 | -905.0 | -704.0 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -23.98 | 76.67 | 9.27 | 199.49 | 0.4428 | -758.0 | -622.9 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -23.62 | 76.65 | 9.24 | 199.74 | 0.4374 | -763.0 | -588.6 | |
| 0.60 | 4.87 | 0.33 | 2.65 | -22.43 | 76.47 | 9.06 | 200.43 | 0.4189 | -968.1 | -735.6 | |
| 0.00 | 4.53 | 0.00 | 2.46 | -21.91 | 76.41 | 9.00 | 200.77 | 0.4110 | -1008.0 | -794.7 | |
| 11.53 | 18.62 | 6.22 | 10.04 | -21.05 | 76.32 | 8.91 | 201.42 | 0.3977 | -1038.8 | -841.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -20.48 | 76.13 | 8.72 | 201.57 | 0.3881 | -794.0 | -675.3 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -21.37 | 76.05 | 8.64 | 200.53 | 0.4009 | -760.0 | -665.1 | |
| 0.00 | 2.73 | 0.00 | 1.47 | -21.18 | 75.75 | 8.34 | 200.05 | 0.3964 | -1037.0 | -851.0 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -24.30 | 75.55 | 8.14 | 197.05 | 0.4420 | -646.0 | -535.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -21.59 | 75.39 | 7.98 | 198.89 | 0.4006 | -728.0 | -515.2 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -21.94 | 75.38 | 7.97 | 198.56 | 0.4059 | -757.0 | -565.2 | |
| 0.00 | 2.39 | 0.00 | 1.29 | -21.75 | 74.76 | 7.35 | 197.36 | 0.3999 | -710.0 | -684.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -21.68 | 74.53 | 7.12 | 196.91 | 0.3978 | -584.0 | -497.6 | |
| 0.00 | 1.79 | 0.00 | 0.96 | -20.63 | 74.35 | 6.94 | 197.36 | 0.3809 | -790.0 | -805.0 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -20.86 | 74.30 | 6.89 | 197.05 | 0.3840 | -805.0 | -637.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
