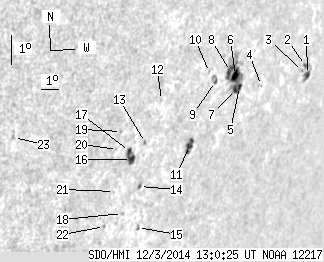

SDO HMI 2014-12-03 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.87 | 91.69 | 33.37 | 92.69 | -15.92 | 125.99 | 59.14 | 251.25 | 0.8727 | 114.7 | 112.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.56 | 9.48 | 3.08 | 11.37 | -15.09 | 131.49 | 64.63 | 253.13 | 0.9134 | 390.6 | 313.8 | |
| 0.85 | -1.00 | 1.02 | -1.00 | -14.81 | 131.19 | 64.33 | 253.40 | 0.9111 | 572.1 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.91 | -14.99 | 131.07 | 64.22 | 253.18 | 0.9105 | 572.0 | 524.4 | |
| 0.00 | 1.20 | 0.00 | 1.30 | -15.39 | 128.50 | 61.64 | 252.34 | 0.8923 | -405.0 | -394.7 | |
| 2.31 | 43.80 | 2.40 | 44.89 | -15.41 | 127.11 | 60.25 | 252.09 | 0.8816 | -671.4 | 37.0 | |
| 6.32 | -5.00 | 6.48 | -5.00 | -15.07 | 126.70 | 59.84 | 252.40 | 0.8779 | 228.9 | 999999 | |
| 2.99 | -5.00 | 3.09 | -5.00 | -15.50 | 126.90 | 60.04 | 251.95 | 0.8801 | -622.1 | 999999 | |
| 5.64 | -5.00 | 5.72 | -5.00 | -14.94 | 126.33 | 59.48 | 252.48 | 0.8748 | 693.6 | 999999 | |
| 0.68 | 4.61 | 0.68 | 4.57 | -15.24 | 125.57 | 58.71 | 252.00 | 0.8690 | 491.1 | 495.3 | |
| 0.00 | 1.02 | 0.00 | 1.00 | -14.96 | 125.09 | 58.23 | 252.23 | 0.8646 | 547.0 | 489.8 | |
| 5.29 | 8.62 | 5.23 | 8.52 | -17.21 | 124.96 | 58.11 | 249.64 | 0.8671 | 489.3 | 292.0 | |
| 0.00 | 0.85 | 0.00 | 0.79 | -15.79 | 122.72 | 55.86 | 250.78 | 0.8456 | -448.0 | -299.8 | |
| 0.00 | 1.20 | 0.00 | 1.10 | -17.09 | 122.40 | 55.54 | 249.20 | 0.8452 | -552.0 | -399.7 | |
| 0.00 | 1.79 | 0.00 | 1.68 | -18.46 | 122.72 | 55.86 | 247.69 | 0.8507 | 268.0 | 285.3 | |
| 0.00 | 2.13 | 0.00 | 2.05 | -19.75 | 123.27 | 56.41 | 246.35 | 0.8580 | 579.0 | 473.1 | |
| 4.35 | 10.25 | 3.97 | 9.31 | -17.61 | 121.87 | 55.01 | 248.47 | 0.8416 | -567.6 | -465.6 | |
| 1.88 | -16.00 | 1.70 | -16.00 | -17.36 | 121.65 | 54.79 | 248.70 | 0.8392 | -704.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.35 | -19.30 | 122.19 | 55.33 | 246.59 | 0.8480 | 583.0 | 542.9 | |
| 0.00 | 1.11 | 0.00 | 0.98 | -16.73 | 120.95 | 54.09 | 249.27 | 0.8316 | 338.0 | 257.9 | |
| 0.00 | 0.34 | 0.00 | 0.30 | -17.29 | 120.98 | 54.12 | 248.62 | 0.8330 | 293.0 | 251.8 | |
| 0.00 | 0.60 | 0.00 | 0.54 | -18.60 | 121.41 | 54.55 | 247.19 | 0.8397 | 334.0 | 348.0 | |
| 0.00 | 0.68 | 0.00 | 0.62 | -19.70 | 121.41 | 54.55 | 245.92 | 0.8421 | 644.0 | 564.9 | |
| 0.00 | 1.79 | 0.00 | 1.41 | -16.87 | 115.62 | 48.76 | 247.60 | 0.7807 | -580.0 | -467.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
