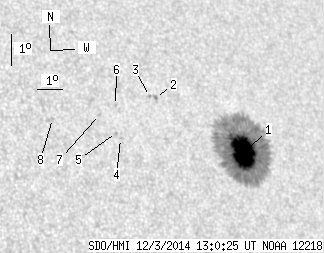

SDO HMI 2014-12-03 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.38 | 293.03 | 35.41 | 205.74 | 16.58 | 109.68 | 42.82 | 293.13 | 0.7106 | -920.5 | -267.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.38 | 284.92 | 35.41 | 200.39 | 16.55 | 109.80 | 42.94 | 293.03 | 0.7119 | -1227.3 | -292.4 | |
| 0.00 | 2.05 | 0.00 | 1.38 | 18.27 | 106.63 | 39.77 | 296.74 | 0.6826 | 492.0 | 429.9 | |
| 0.00 | 1.11 | 0.00 | 0.75 | 18.30 | 106.40 | 39.54 | 296.89 | 0.6801 | 721.0 | 591.7 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 17.01 | 104.91 | 38.05 | 295.80 | 0.6569 | 637.0 | 457.4 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 17.20 | 104.80 | 37.94 | 296.12 | 0.6564 | 741.0 | 623.5 | |
| 0.00 | 0.85 | 0.00 | 0.56 | 18.03 | 104.97 | 38.11 | 297.22 | 0.6623 | 493.0 | 496.6 | |
| 0.00 | 1.28 | 0.00 | 0.84 | 17.76 | 104.27 | 37.41 | 297.19 | 0.6528 | 713.0 | 517.9 | |
| 0.00 | 1.11 | 0.00 | 0.71 | 17.65 | 102.42 | 35.56 | 298.04 | 0.6302 | 624.0 | 528.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
