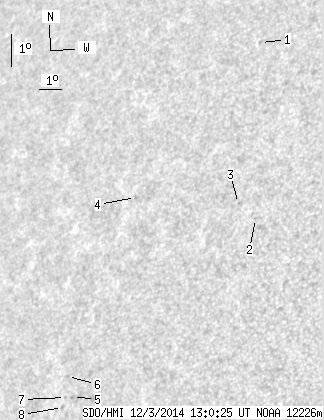

SDO HMI 2014-12-03 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.30 | 0.00 | 7.11 | 12.19 | 18.54 | -48.32 | 74.22 | 0.7620 | -531.9 | -439.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.82 | 20.06 | 22.42 | -44.44 | 62.93 | 0.7409 | -490.0 | -446.2 | |
| 0.00 | 0.68 | 0.00 | 0.48 | 14.62 | 23.83 | -43.03 | 69.63 | 0.7067 | -537.0 | -499.9 | |
| 0.00 | 0.68 | 0.00 | 0.48 | 15.07 | 23.00 | -43.86 | 69.29 | 0.7176 | -502.0 | -375.0 | |
| 0.00 | 1.45 | 0.00 | 1.12 | 15.23 | 18.38 | -48.48 | 70.48 | 0.7688 | -466.0 | -307.8 | |
| 0.00 | 1.71 | 0.00 | 1.33 | 9.20 | 16.96 | -49.90 | 78.51 | 0.7728 | -514.0 | -403.9 | |
| 0.00 | 1.20 | 0.00 | 0.94 | 9.80 | 16.60 | -50.25 | 77.80 | 0.7775 | -677.0 | -560.3 | |
| 0.00 | 1.02 | 0.00 | 0.80 | 9.17 | 16.64 | -50.22 | 78.60 | 0.7763 | -508.0 | -486.5 | |
| 0.00 | 1.45 | 0.00 | 1.14 | 8.87 | 16.55 | -50.31 | 79.00 | 0.7768 | -561.0 | -472.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
