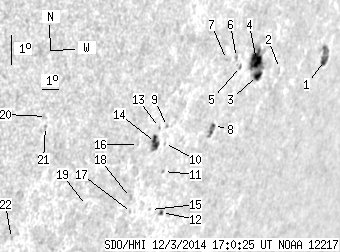

SDO HMI 2014-12-03 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.64 | 80.89 | 33.85 | 88.02 | -16.02 | 126.12 | 61.46 | 251.54 | 0.8906 | 82.5 | 106.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.18 | 11.52 | 5.52 | 15.19 | -15.11 | 131.65 | 67.00 | 253.43 | 0.9288 | 392.1 | 325.3 | |
| 0.00 | 0.68 | 0.00 | 0.80 | -15.32 | 128.43 | 63.78 | 252.76 | 0.9077 | -376.0 | -293.1 | |
| 4.61 | 36.53 | 5.15 | 40.36 | -15.52 | 127.04 | 62.38 | 252.32 | 0.8979 | -544.6 | 21.9 | |
| 14.60 | -3.00 | 16.07 | -3.00 | -15.06 | 126.73 | 62.07 | 252.79 | 0.8951 | 437.3 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.73 | -15.23 | 125.78 | 61.12 | 252.44 | 0.8881 | 442.0 | 445.3 | |
| 0.00 | 1.37 | 0.00 | 1.44 | -14.95 | 125.39 | 60.73 | 252.69 | 0.8848 | 579.0 | 539.2 | |
| 0.00 | 0.51 | 0.00 | 0.53 | -15.01 | 124.79 | 60.13 | 252.52 | 0.8801 | 292.0 | 258.5 | |
| 0.85 | 6.06 | 0.90 | 6.38 | -17.04 | 125.00 | 60.35 | 250.28 | 0.8846 | 440.7 | 423.6 | |
| 0.00 | 1.19 | 0.00 | 1.16 | -17.05 | 122.22 | 57.57 | 249.71 | 0.8624 | -503.0 | -349.6 | |
| 0.00 | 1.28 | 0.00 | 1.25 | -17.57 | 122.31 | 57.65 | 249.13 | 0.8640 | -127.0 | -101.3 | |
| 0.00 | 1.02 | 0.00 | 1.02 | -18.45 | 122.71 | 58.05 | 248.22 | 0.8688 | 431.0 | 297.4 | |
| 0.85 | 2.05 | 0.87 | 2.09 | -19.74 | 123.32 | 58.66 | 246.91 | 0.8759 | 454.1 | 362.6 | |
| 0.00 | 0.85 | 0.00 | 0.82 | -17.07 | 121.77 | 57.12 | 249.59 | 0.8587 | -361.0 | -350.1 | |
| 5.55 | 9.47 | 5.34 | 9.11 | -17.54 | 121.77 | 57.11 | 249.05 | 0.8595 | -640.7 | -467.3 | |
| 0.00 | 0.43 | 0.00 | 0.43 | -19.64 | 122.59 | 57.94 | 246.86 | 0.8701 | 530.0 | 473.6 | |
| 0.00 | 0.43 | 0.00 | 0.40 | -17.59 | 120.83 | 56.17 | 248.78 | 0.8516 | 267.0 | 178.0 | |
| 0.00 | 0.60 | 0.00 | 0.58 | -19.73 | 121.53 | 56.87 | 246.50 | 0.8616 | 491.0 | 530.0 | |
| 0.00 | 1.96 | 0.00 | 1.88 | -19.25 | 121.21 | 56.56 | 246.97 | 0.8581 | 454.0 | 411.6 | |
| 0.00 | 1.02 | 0.00 | 0.93 | -19.48 | 118.88 | 54.23 | 246.10 | 0.8388 | -363.0 | -278.1 | |
| 0.00 | 0.68 | 0.00 | 0.56 | -16.67 | 115.62 | 50.97 | 248.51 | 0.8020 | -490.0 | -401.4 | |
| 0.00 | 0.85 | 0.00 | 0.71 | -16.98 | 115.69 | 51.03 | 248.16 | 0.8034 | -357.0 | -354.3 | |
| 0.00 | 0.77 | 0.00 | 0.65 | -20.49 | 115.46 | 50.81 | 243.88 | 0.8108 | -553.0 | -512.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
