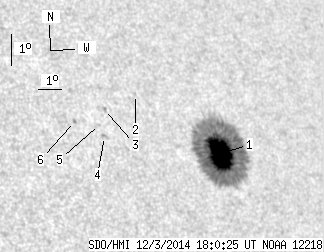

SDO HMI 2014-12-03 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.82 | 269.61 | 30.78 | 198.20 | 16.61 | 109.61 | 45.51 | 292.21 | 0.7408 | -951.3 | -297.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.82 | 262.53 | 30.78 | 193.35 | 16.58 | 109.73 | 45.63 | 292.13 | 0.7420 | -1198.4 | -322.2 | |
| 0.00 | 0.77 | 0.00 | 0.54 | 18.43 | 106.62 | 42.52 | 295.74 | 0.7142 | 284.0 | 259.2 | |
| 0.00 | 1.96 | 0.00 | 1.35 | 17.97 | 105.19 | 41.09 | 295.74 | 0.6963 | 617.0 | 539.8 | |
| 0.00 | 2.13 | 0.00 | 1.46 | 17.14 | 104.96 | 40.85 | 294.69 | 0.6904 | 701.0 | 618.6 | |
| 0.00 | 0.85 | 0.00 | 0.58 | 17.51 | 104.85 | 40.75 | 295.25 | 0.6907 | 557.0 | 479.3 | |
| 0.00 | 1.37 | 0.00 | 0.92 | 17.61 | 103.86 | 39.76 | 295.84 | 0.6797 | 688.0 | 623.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
