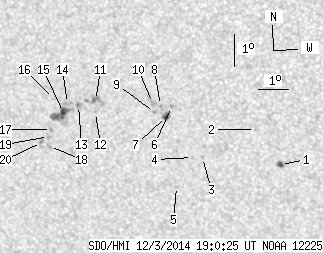

SDO HMI 2014-12-03 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.19 | 60.59 | 4.68 | 34.87 | -14.98 | 37.00 | -26.55 | 121.87 | 0.5100 | -18.5 | -332.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 3.58 | 0.90 | 1.99 | -16.37 | 42.67 | -20.87 | 130.37 | 0.4507 | 1115.7 | 782.2 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -15.29 | 41.97 | -21.58 | 127.54 | 0.4493 | 640.0 | 551.2 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -16.16 | 40.11 | -23.44 | 126.91 | 0.4799 | 855.0 | 620.8 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -16.16 | 39.77 | -23.78 | 126.54 | 0.4841 | 608.0 | 540.0 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -17.06 | 39.11 | -24.44 | 127.36 | 0.4997 | 685.0 | 587.1 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -14.59 | 39.26 | -24.29 | 123.22 | 0.4778 | 963.0 | 789.6 | |
| 2.30 | 4.10 | 1.30 | 2.31 | -14.90 | 39.05 | -24.49 | 123.57 | 0.4829 | 862.6 | 669.8 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -14.56 | 38.89 | -24.66 | 122.80 | 0.4823 | 831.0 | 702.6 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -14.78 | 38.67 | -24.88 | 122.96 | 0.4869 | 692.0 | 532.1 | |
| 0.00 | 3.93 | 0.00 | 2.22 | -14.47 | 38.64 | -24.91 | 122.38 | 0.4850 | 723.0 | 624.9 | |
| 0.00 | 9.56 | 0.00 | 5.50 | -14.42 | 36.71 | -26.84 | 120.50 | 0.5096 | -932.0 | -758.3 | |
| 0.00 | 0.51 | 0.00 | 0.30 | -14.79 | 36.66 | -26.89 | 121.10 | 0.5128 | 481.0 | 378.7 | |
| 0.00 | 2.39 | 0.00 | 1.38 | -14.57 | 36.10 | -27.45 | 120.25 | 0.5185 | -896.0 | -754.6 | |
| 0.00 | 3.67 | 0.00 | 2.13 | -14.52 | 35.73 | -27.82 | 119.84 | 0.5229 | -691.0 | -713.0 | |
| 4.27 | 15.70 | 2.48 | 9.15 | -14.79 | 35.55 | -27.99 | 120.17 | 0.5270 | -1040.7 | -776.5 | |
| 0.00 | 1.19 | 0.00 | 0.70 | -14.36 | 35.27 | -28.28 | 119.20 | 0.5279 | -771.0 | -505.6 | |
| 0.00 | 1.37 | 0.00 | 0.80 | -15.32 | 35.06 | -28.49 | 120.64 | 0.5369 | -805.0 | -739.1 | |
| 0.00 | 1.79 | 0.00 | 1.05 | -15.84 | 34.91 | -28.64 | 121.39 | 0.5423 | -717.0 | -637.1 | |
| 0.00 | 2.56 | 0.00 | 1.50 | -15.53 | 34.92 | -28.63 | 120.89 | 0.5401 | -830.0 | -711.9 | |
| 0.00 | 2.82 | 0.00 | 1.66 | -15.72 | 34.65 | -28.90 | 120.97 | 0.5448 | -781.0 | -619.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
