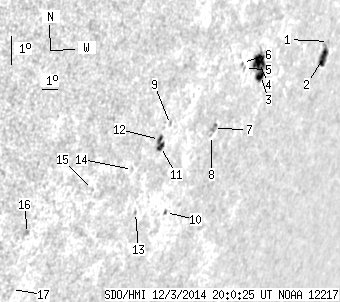

SDO HMI 2014-12-03 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.07 | 63.17 | 37.74 | 74.47 | -16.01 | 126.83 | 63.83 | 251.93 | 0.9075 | 119.7 | 104.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 1.34 | -14.55 | 131.83 | 68.84 | 254.24 | 0.9394 | 235.0 | 219.7 | |
| 8.11 | 13.40 | 11.55 | 19.08 | -15.04 | 131.74 | 68.75 | 253.71 | 0.9392 | 365.2 | 199.3 | |
| 5.97 | 25.86 | 7.08 | 30.40 | -15.55 | 127.17 | 64.17 | 252.58 | 0.9107 | -408.6 | 80.8 | |
| 11.95 | -3.00 | 14.00 | -3.00 | -15.14 | 126.87 | 63.87 | 252.97 | 0.9082 | 349.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.26 | -15.32 | 125.93 | 62.93 | 252.64 | 0.9017 | 397.0 | 372.8 | |
| 0.00 | 0.77 | 0.00 | 0.86 | -15.13 | 125.69 | 62.70 | 252.81 | 0.8998 | 437.0 | 443.1 | |
| 0.00 | 4.27 | 0.00 | 4.73 | -17.16 | 124.88 | 61.88 | 250.44 | 0.8962 | 563.0 | 381.2 | |
| 0.00 | 0.51 | 0.00 | 0.57 | -17.38 | 124.87 | 61.88 | 250.20 | 0.8965 | 308.0 | 304.8 | |
| 0.00 | 1.54 | 0.00 | 1.56 | -17.01 | 122.07 | 59.08 | 250.08 | 0.8746 | -271.0 | -192.0 | |
| 0.43 | 1.45 | 0.46 | 1.55 | -19.77 | 123.34 | 60.35 | 247.26 | 0.8887 | 500.8 | 423.0 | |
| 2.90 | 8.28 | 2.93 | 8.35 | -17.69 | 121.82 | 58.83 | 249.26 | 0.8737 | -524.4 | -480.0 | |
| 1.71 | -11.00 | 1.72 | -11.00 | -17.47 | 121.65 | 58.65 | 249.47 | 0.8719 | -679.7 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.38 | -19.75 | 121.47 | 58.47 | 246.87 | 0.8744 | 552.0 | 420.7 | |
| 0.00 | 1.11 | 0.00 | 1.08 | -18.39 | 120.53 | 57.54 | 248.18 | 0.8645 | 398.0 | 286.2 | |
| 0.00 | 0.94 | 0.00 | 0.88 | -19.00 | 118.56 | 55.57 | 247.02 | 0.8492 | -243.0 | -272.9 | |
| 0.00 | 1.02 | 0.00 | 0.90 | -20.35 | 115.73 | 52.73 | 244.66 | 0.8278 | -613.0 | -571.9 | |
| 0.00 | 0.60 | 0.00 | 0.53 | -22.14 | 115.80 | 52.81 | 242.61 | 0.8332 | -53.0 | -106.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
