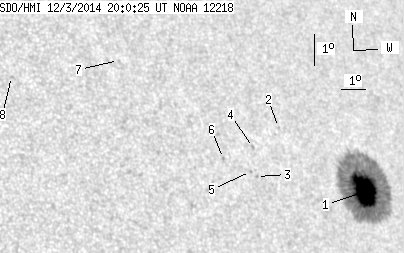

SDO HMI 2014-12-03 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.98 | 267.63 | 33.76 | 200.54 | 16.58 | 109.58 | 46.58 | 291.85 | 0.7523 | -848.3 | -285.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.98 | 260.99 | 33.76 | 196.00 | 16.54 | 109.73 | 46.73 | 291.73 | 0.7538 | -1140.9 | -307.5 | |
| 0.00 | 0.77 | 0.00 | 0.55 | 18.54 | 106.54 | 43.54 | 295.48 | 0.7258 | 436.0 | 356.1 | |
| 0.00 | 1.02 | 0.00 | 0.71 | 17.03 | 105.15 | 42.15 | 294.02 | 0.7048 | 511.0 | 491.4 | |
| 0.00 | 1.19 | 0.00 | 0.84 | 17.93 | 105.28 | 42.28 | 295.17 | 0.7097 | 663.0 | 535.0 | |
| 0.00 | 0.85 | 0.00 | 0.59 | 17.19 | 104.94 | 41.94 | 294.31 | 0.7031 | 617.0 | 589.5 | |
| 0.00 | 0.94 | 0.00 | 0.64 | 17.60 | 103.94 | 40.94 | 295.30 | 0.6932 | 762.0 | 688.4 | |
| 0.00 | 0.85 | 0.00 | 0.57 | 20.68 | 100.56 | 37.57 | 301.22 | 0.6694 | 435.0 | 386.8 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 20.20 | 96.28 | 33.29 | 303.24 | 0.6181 | 515.0 | 359.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
