SDO HMI 2014-12-03 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.82 | 266.11 | 31.71 | 201.36 | 16.59 | 109.52 | 47.08 | 291.69 | 0.7576 | -809.9 | -284.8 | |
|
previous
or next observation for the same group /

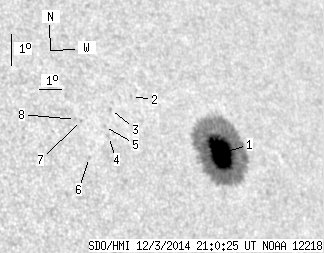

back to the solar disc SDO HMI 2014-12-03 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.82 | 256.90 | 31.71 | 194.90 | 16.56 | 109.68 | 47.24 | 291.60 | 0.7592 | -1118.9 | -315.5 | |
| 0.00 | 1.19 | 0.00 | 0.86 | 18.35 | 106.31 | 43.86 | 295.10 | 0.7287 | 477.0 | 349.1 | |
| 0.00 | 1.71 | 0.00 | 1.21 | 17.95 | 105.28 | 42.84 | 294.98 | 0.7160 | 710.0 | 553.7 | |
| 0.00 | 2.13 | 0.00 | 1.49 | 17.12 | 104.95 | 42.51 | 293.99 | 0.7092 | 699.0 | 493.8 | |
| 0.00 | 1.11 | 0.00 | 0.78 | 17.43 | 104.87 | 42.43 | 294.44 | 0.7094 | 291.0 | 370.1 | |
| 0.00 | 1.28 | 0.00 | 0.88 | 16.47 | 103.98 | 41.54 | 293.51 | 0.6958 | 624.0 | 538.4 | |
| 0.00 | 0.85 | 0.00 | 0.59 | 17.62 | 103.97 | 41.52 | 295.08 | 0.6999 | 676.0 | 615.3 | |
| 0.00 | 0.94 | 0.00 | 0.65 | 17.65 | 103.73 | 41.28 | 295.23 | 0.6974 | 654.0 | 531.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
