SDO HMI 2014-12-03 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.43 | 0.00 | 2.81 | -23.57 | 93.09 | 30.65 | 228.91 | 0.6231 | -273.8 | -271.7 | |
|
previous
or next observation for the same group /

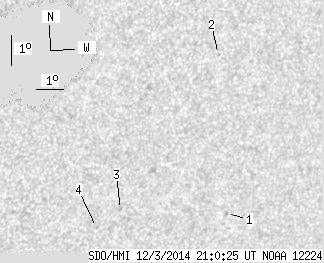

back to the solar disc SDO HMI 2014-12-03 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.67 | -24.69 | 95.81 | 33.37 | 229.62 | 0.6584 | 646.0 | 587.0 | |
| 0.00 | 1.02 | 0.00 | 0.64 | -19.58 | 94.18 | 31.74 | 235.32 | 0.6050 | -548.0 | -548.9 | |
| 0.00 | 1.37 | 0.00 | 0.86 | -24.53 | 91.73 | 29.28 | 226.46 | 0.6161 | -688.0 | -587.0 | |
| 0.00 | 1.02 | 0.00 | 0.64 | -25.11 | 90.98 | 28.54 | 225.03 | 0.6137 | -505.0 | -475.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
