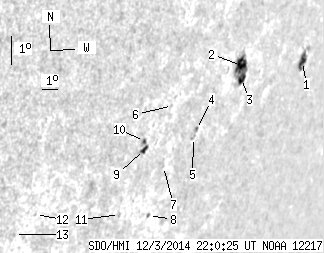

SDO HMI 2014-12-03 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.76 | 55.15 | 36.51 | 68.70 | -15.91 | 127.23 | 65.34 | 252.29 | 0.9176 | 121.5 | 95.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.66 | 12.72 | 10.02 | 19.18 | -15.09 | 131.82 | 69.93 | 253.80 | 0.9458 | 380.6 | 173.6 | |
| 12.80 | 26.89 | 15.66 | 32.99 | -15.16 | 126.93 | 65.04 | 253.13 | 0.9161 | 335.8 | 111.6 | |
| 5.80 | -2.00 | 7.18 | -2.00 | -15.56 | 127.17 | 65.28 | 252.72 | 0.9181 | -321.1 | 999999 | |
| 0.00 | 1.79 | 0.00 | 2.06 | -17.11 | 124.90 | 63.01 | 250.69 | 0.9042 | 408.0 | 293.7 | |
| 0.00 | 1.71 | 0.00 | 1.96 | -17.36 | 124.85 | 62.96 | 250.41 | 0.9041 | 351.0 | 305.0 | |
| 0.00 | 0.51 | 0.00 | 0.55 | -16.35 | 122.87 | 60.98 | 251.18 | 0.8884 | -517.0 | -422.3 | |
| 0.00 | 0.94 | 0.00 | 1.03 | -18.25 | 123.37 | 61.48 | 249.17 | 0.8947 | 341.0 | 358.4 | |
| 0.00 | 1.54 | 0.00 | 1.70 | -19.79 | 123.36 | 61.47 | 247.48 | 0.8969 | 508.0 | 360.6 | |
| 2.56 | 6.49 | 2.67 | 6.76 | -17.70 | 121.84 | 59.95 | 249.48 | 0.8824 | -479.7 | -456.9 | |
| 0.94 | -9.00 | 0.98 | -9.00 | -17.45 | 121.70 | 59.81 | 249.73 | 0.8810 | -653.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.16 | -19.73 | 121.46 | 59.57 | 247.14 | 0.8828 | 439.0 | 347.2 | |
| 0.00 | 0.68 | 0.00 | 0.62 | -19.68 | 116.54 | 54.65 | 245.99 | 0.8429 | -333.0 | -309.6 | |
| 0.00 | 0.77 | 0.00 | 0.69 | -20.31 | 115.72 | 53.83 | 245.04 | 0.8372 | -635.0 | -544.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
