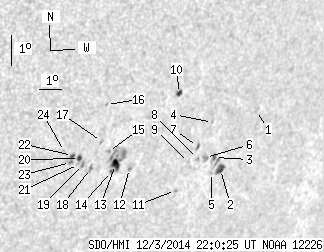

SDO HMI 2014-12-03 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.45 | 74.59 | 11.81 | 56.79 | -19.52 | 107.93 | 46.04 | 243.30 | 0.7610 | -101.5 | -58.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-03 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.65 | 0.00 | 2.18 | -18.11 | 112.42 | 50.53 | 246.66 | 0.8014 | 24.0 | 87.7 | |
| 4.10 | 6.40 | 3.34 | 5.22 | -19.95 | 111.42 | 49.53 | 244.11 | 0.7971 | 520.9 | 330.6 | |
| 1.02 | 5.80 | 0.83 | 4.69 | -19.57 | 110.97 | 49.08 | 244.42 | 0.7916 | 608.8 | 466.8 | |
| 0.00 | 0.60 | 0.00 | 0.47 | -18.47 | 110.44 | 48.55 | 245.58 | 0.7830 | -256.0 | -235.4 | |
| 0.00 | 1.02 | 0.00 | 0.83 | -20.04 | 111.02 | 49.13 | 243.86 | 0.7936 | 496.0 | 385.4 | |
| 0.00 | 4.35 | 0.00 | 3.48 | -19.56 | 110.53 | 48.64 | 244.27 | 0.7874 | 813.0 | 644.9 | |
| 0.00 | 2.39 | 0.00 | 1.89 | -19.21 | 110.02 | 48.13 | 244.52 | 0.7812 | 429.0 | 447.6 | |
| 0.00 | 1.02 | 0.00 | 0.81 | -19.59 | 110.17 | 48.27 | 244.11 | 0.7839 | 488.0 | 494.7 | |
| 0.00 | 1.37 | 0.00 | 1.08 | -19.71 | 109.79 | 47.90 | 243.82 | 0.7806 | 601.0 | 433.1 | |
| 1.96 | 3.24 | 1.49 | 2.47 | -17.54 | 108.58 | 46.69 | 246.08 | 0.7613 | 650.3 | 517.7 | |
| 0.00 | 1.11 | 0.00 | 0.88 | -20.60 | 109.54 | 47.64 | 242.65 | 0.7811 | 583.0 | 556.9 | |
| 0.00 | 1.54 | 0.00 | 1.16 | -19.88 | 107.14 | 45.25 | 242.59 | 0.7547 | -439.0 | -398.8 | |
| 5.21 | 25.69 | 3.87 | 19.06 | -19.75 | 106.47 | 44.58 | 242.47 | 0.7473 | -682.8 | -311.7 | |
| 0.60 | -13.00 | 0.44 | -13.00 | -19.97 | 106.37 | 44.48 | 242.15 | 0.7472 | -562.1 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.00 | -19.33 | 106.02 | 44.13 | 242.81 | 0.7410 | -732.0 | -642.3 | |
| 0.00 | 1.02 | 0.00 | 0.74 | -17.86 | 105.46 | 43.57 | 244.47 | 0.7293 | 438.0 | 444.6 | |
| 0.00 | 1.37 | 0.00 | 0.99 | -19.02 | 105.61 | 43.72 | 243.04 | 0.7355 | -678.0 | -625.9 | |
| 0.00 | 2.73 | 0.00 | 1.99 | -19.86 | 105.42 | 43.53 | 241.87 | 0.7369 | -652.0 | -474.2 | |
| 0.00 | 1.96 | 0.00 | 1.42 | -19.74 | 105.03 | 43.14 | 241.86 | 0.7322 | -557.0 | -526.7 | |
| 1.54 | 2.73 | 1.11 | 1.97 | -19.54 | 104.83 | 42.94 | 242.01 | 0.7294 | -691.0 | -513.7 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -19.73 | 104.85 | 42.96 | 241.78 | 0.7304 | -518.0 | -410.3 | |
| 1.02 | 2.30 | 0.73 | 1.65 | -19.45 | 104.50 | 42.61 | 241.99 | 0.7255 | -806.3 | -717.4 | |
| 0.00 | 1.62 | 0.00 | 1.16 | -19.67 | 104.49 | 42.60 | 241.70 | 0.7263 | -838.0 | -739.5 | |
| 0.00 | 1.37 | 0.00 | 0.97 | -19.32 | 104.12 | 42.23 | 241.98 | 0.7208 | -634.0 | -470.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
