SDO HMI 2014-12-03 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.79 | 60.54 | 2.66 | 34.20 | -15.17 | 37.07 | -24.27 | 124.39 | 0.4832 | -110.3 | -217.2 | |
|
previous
or next observation for the same group /

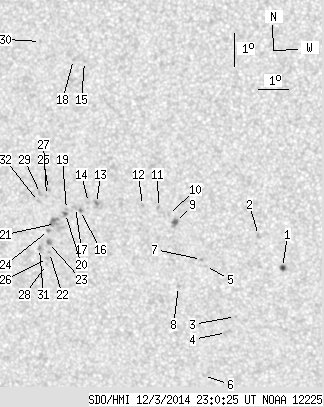

back to the solar disc SDO HMI 2014-12-03 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 2.82 | 0.84 | 1.54 | -16.35 | 42.63 | -18.71 | 133.31 | 0.4248 | 1028.8 | 771.1 | |
| 0.00 | 2.05 | 0.00 | 1.12 | -15.37 | 41.95 | -19.39 | 130.52 | 0.4230 | 781.0 | 655.6 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -17.88 | 40.91 | -20.42 | 133.52 | 0.4600 | 743.0 | 562.0 | |
| 0.00 | 3.16 | 0.00 | 1.77 | -18.38 | 40.55 | -20.79 | 133.86 | 0.4690 | 752.0 | 611.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -16.33 | 40.11 | -21.23 | 129.80 | 0.4543 | 713.0 | 531.7 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -19.73 | 39.60 | -21.74 | 134.77 | 0.4931 | 667.0 | 523.9 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -16.11 | 40.00 | -21.34 | 129.29 | 0.4536 | 897.0 | 702.6 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -16.95 | 39.13 | -22.20 | 129.68 | 0.4717 | 698.0 | 489.7 | |
| 1.54 | 4.18 | 0.85 | 2.32 | -14.98 | 39.27 | -22.07 | 126.33 | 0.4525 | 908.8 | 571.4 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -14.73 | 39.06 | -22.27 | 125.63 | 0.4529 | 858.0 | 672.2 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -14.52 | 38.76 | -22.58 | 124.88 | 0.4551 | 836.0 | 666.0 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -14.46 | 38.23 | -23.11 | 124.19 | 0.4613 | 745.0 | 554.9 | |
| 0.00 | 3.16 | 0.00 | 1.78 | -14.40 | 36.70 | -24.64 | 122.49 | 0.4806 | -1087.0 | -868.6 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -14.37 | 36.44 | -24.90 | 122.17 | 0.4838 | -887.0 | -751.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -10.10 | 36.74 | -24.60 | 114.16 | 0.4510 | 689.0 | 452.6 | |
| 0.43 | 1.62 | 0.24 | 0.92 | -14.62 | 36.14 | -25.20 | 122.32 | 0.4896 | -949.6 | -788.7 | |
| 0.00 | 1.79 | 0.00 | 1.02 | -14.53 | 35.98 | -25.36 | 122.01 | 0.4909 | -770.0 | -714.9 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -10.04 | 36.38 | -24.96 | 113.75 | 0.4558 | 797.0 | 607.5 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -14.59 | 35.67 | -25.67 | 121.82 | 0.4954 | -1089.0 | -779.7 | |
| 0.68 | 1.71 | 0.39 | 0.97 | -14.71 | 35.62 | -25.72 | 121.99 | 0.4970 | -929.8 | -785.2 | |
| 0.00 | 9.22 | 0.00 | 5.28 | -15.02 | 35.24 | -26.10 | 122.18 | 0.5041 | -985.0 | -695.3 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -15.91 | 34.91 | -26.43 | 123.41 | 0.5149 | -810.0 | -618.1 | |
| 0.60 | 2.82 | 0.34 | 1.62 | -15.60 | 34.92 | -26.42 | 122.89 | 0.5125 | -906.4 | -818.0 | |
| 0.00 | 1.71 | 0.00 | 0.98 | -15.24 | 34.97 | -26.37 | 122.31 | 0.5091 | -783.0 | -668.0 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -13.98 | 35.13 | -26.20 | 120.24 | 0.4981 | -858.0 | -679.2 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -16.10 | 34.81 | -26.53 | 123.63 | 0.5174 | -769.0 | -629.6 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -14.16 | 35.04 | -26.30 | 120.49 | 0.5005 | -627.0 | -580.0 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -16.28 | 34.75 | -26.59 | 123.89 | 0.5196 | -670.0 | -497.1 | |
| 0.00 | 2.39 | 0.00 | 1.37 | -14.10 | 34.85 | -26.49 | 120.21 | 0.5027 | -627.0 | -593.5 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -9.50 | 35.33 | -26.01 | 111.86 | 0.4680 | 694.0 | 553.7 | |
| 0.00 | 2.39 | 0.00 | 1.38 | -15.79 | 34.58 | -26.76 | 122.90 | 0.5181 | -759.0 | -649.9 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -14.35 | 34.75 | -26.59 | 120.56 | 0.5057 | -705.0 | -598.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
