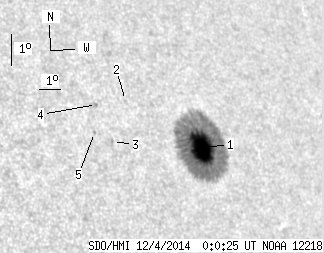

SDO HMI 2014-12-04 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.21 | 248.07 | 31.47 | 194.04 | 16.61 | 109.61 | 48.83 | 291.22 | 0.7760 | -832.7 | -296.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-04 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.21 | 244.06 | 31.47 | 191.11 | 16.60 | 109.67 | 48.89 | 291.18 | 0.7766 | -1004.0 | -309.5 | |
| 0.00 | 1.02 | 0.00 | 0.76 | 18.07 | 106.69 | 45.90 | 294.00 | 0.7497 | 400.0 | 322.8 | |
| 0.00 | 1.20 | 0.00 | 0.87 | 16.81 | 105.70 | 44.92 | 292.71 | 0.7351 | 501.0 | 440.6 | |
| 0.00 | 0.85 | 0.00 | 0.62 | 17.96 | 105.36 | 44.58 | 294.33 | 0.7351 | 606.0 | 535.1 | |
| 0.00 | 0.94 | 0.00 | 0.68 | 17.09 | 105.01 | 44.22 | 293.33 | 0.7283 | 552.0 | 480.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
