SDO HMI 2014-12-04 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 300.64 | 1628.44 | 174.21 | 942.97 | -19.89 | 84.41 | 23.62 | 226.77 | 0.5170 | 497.5 | 179.7 | |
|
previous
or next observation for the same group /

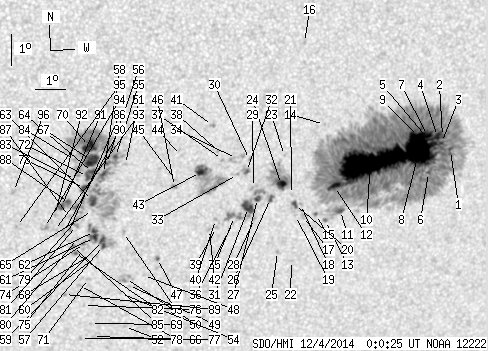

back to the solar disc SDO HMI 2014-12-04 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.24 | 1119.65 | 1.94 | 658.54 | -19.36 | 89.01 | 28.22 | 232.76 | 0.5627 | 417.6 | 380.4 | |
| 1.88 | -1.00 | 1.12 | -1.00 | -18.91 | 88.64 | 27.86 | 233.09 | 0.5550 | 777.0 | 999999 | |
| 1.37 | -1.00 | 0.81 | -1.00 | -19.10 | 88.64 | 27.85 | 232.81 | 0.5564 | 654.9 | 999999 | |
| 4.78 | -1.00 | 2.84 | -1.00 | -18.91 | 88.47 | 27.68 | 232.93 | 0.5529 | 895.9 | 999999 | |
| 5.72 | -1.00 | 3.39 | -1.00 | -19.10 | 88.29 | 27.50 | 232.48 | 0.5523 | 892.5 | 999999 | |
| 1.11 | -1.00 | 0.66 | -1.00 | -20.04 | 88.36 | 27.57 | 231.12 | 0.5607 | 571.9 | 999999 | |
| 5.21 | -1.00 | 3.08 | -1.00 | -18.88 | 88.11 | 27.32 | 232.65 | 0.5485 | 1179.1 | 999999 | |
| 48.06 | -1.00 | 28.46 | -1.00 | -19.41 | 87.89 | 27.10 | 231.63 | 0.5502 | 1296.6 | 999999 | |
| 9.30 | -1.00 | 5.49 | -1.00 | -18.91 | 87.80 | 27.01 | 232.31 | 0.5451 | 1344.7 | 999999 | |
| 125.23 | -1.00 | 73.28 | -1.00 | -19.72 | 86.26 | 25.47 | 229.54 | 0.5342 | 1473.9 | 999999 | |
| 2.39 | -1.00 | 1.40 | -1.00 | -21.23 | 85.48 | 24.69 | 226.46 | 0.5393 | 538.2 | 999999 | |
| 6.40 | -1.00 | 3.73 | -1.00 | -20.47 | 85.14 | 24.35 | 227.20 | 0.5285 | 1023.4 | 999999 | |
| 0.51 | -1.00 | 0.30 | -1.00 | -21.55 | 85.01 | 24.22 | 225.48 | 0.5373 | -61.7 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -18.51 | 84.48 | 23.70 | 229.49 | 0.5033 | 257.0 | 207.2 | |
| 0.60 | -1.00 | 0.35 | -1.00 | -21.35 | 84.63 | 23.84 | 225.33 | 0.5314 | -554.9 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -15.96 | 83.47 | 22.69 | 232.62 | 0.4686 | 724.0 | 570.4 | |
| 0.00 | 2.56 | 0.00 | 1.49 | -21.42 | 84.22 | 23.43 | 224.78 | 0.5278 | -555.0 | -470.3 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -21.03 | 84.05 | 23.27 | 225.14 | 0.5223 | -227.0 | -40.4 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -21.38 | 83.94 | 23.15 | 224.50 | 0.5245 | -636.0 | -526.5 | |
| 1.96 | 3.67 | 1.14 | 2.13 | -21.03 | 83.85 | 23.06 | 224.90 | 0.5201 | -893.1 | -658.4 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -20.71 | 83.69 | 22.91 | 225.18 | 0.5153 | -609.0 | -465.5 | |
| 0.00 | 1.71 | 0.00 | 1.00 | -22.82 | 84.05 | 23.26 | 222.61 | 0.5399 | 599.0 | 470.8 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -19.48 | 83.27 | 22.48 | 226.54 | 0.4987 | -516.0 | -429.5 | |
| 5.89 | 43.71 | 3.38 | 25.04 | -20.39 | 83.30 | 22.51 | 225.19 | 0.5080 | 1088.9 | 349.2 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -22.53 | 83.51 | 22.72 | 222.37 | 0.5316 | 742.0 | 721.3 | |
| 1.62 | 3.93 | 0.93 | 2.26 | -20.84 | 82.99 | 22.21 | 224.16 | 0.5091 | 757.0 | 602.9 | |
| 2.39 | 24.84 | 1.37 | 14.23 | -20.83 | 82.55 | 21.76 | 223.61 | 0.5044 | 930.4 | 785.0 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -21.47 | 82.54 | 21.76 | 222.68 | 0.5109 | 524.0 | 435.6 | |
| 0.00 | 2.73 | 0.00 | 1.56 | -20.48 | 82.36 | 21.57 | 223.89 | 0.4989 | 730.0 | 525.5 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -19.60 | 82.10 | 21.31 | 224.90 | 0.4871 | -540.0 | -475.1 | |
| 8.54 | -27.00 | 4.89 | -27.00 | -21.12 | 82.29 | 21.50 | 222.86 | 0.5046 | 1006.3 | 999999 | |
| 1.20 | 4.78 | 0.68 | 2.71 | -19.98 | 82.05 | 21.26 | 224.25 | 0.4904 | 698.4 | 442.3 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -20.07 | 81.76 | 20.97 | 223.74 | 0.4883 | 692.0 | 453.7 | |
| 0.00 | 5.98 | 0.00 | 3.37 | -19.57 | 81.66 | 20.87 | 224.37 | 0.4820 | -554.0 | -543.8 | |
| 0.00 | 9.65 | 0.00 | 5.52 | -21.40 | 81.85 | 21.06 | 221.89 | 0.5032 | 877.0 | 720.8 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -21.63 | 81.82 | 21.03 | 221.53 | 0.5052 | 72.0 | 136.7 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -19.59 | 81.19 | 20.40 | 223.71 | 0.4773 | -737.0 | -620.8 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -19.34 | 81.03 | 20.24 | 223.87 | 0.4729 | -836.0 | -692.2 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -21.75 | 81.29 | 20.50 | 220.67 | 0.5013 | 646.0 | 466.3 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -21.50 | 81.22 | 20.43 | 220.93 | 0.4978 | 777.0 | 663.4 | |
| 0.00 | 2.22 | 0.00 | 1.24 | -18.53 | 80.72 | 19.94 | 224.76 | 0.4611 | -776.0 | -720.2 | |
| 0.00 | 1.79 | 0.00 | 1.02 | -21.81 | 81.06 | 20.28 | 220.27 | 0.4997 | 719.0 | 517.3 | |
| 3.67 | 49.43 | 2.06 | 27.87 | -20.00 | 80.51 | 19.72 | 222.15 | 0.4745 | -1019.7 | -92.6 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -19.46 | 79.81 | 19.02 | 221.98 | 0.4613 | -591.0 | -515.0 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -20.22 | 79.70 | 18.92 | 220.68 | 0.4686 | -706.0 | -608.5 | |
| 0.00 | 2.39 | 0.00 | 1.34 | -20.44 | 79.70 | 18.91 | 220.35 | 0.4710 | -870.0 | -664.4 | |
| 0.60 | 1.45 | 0.34 | 0.83 | -22.74 | 79.43 | 18.65 | 216.77 | 0.4947 | -747.7 | -593.2 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -23.28 | 79.04 | 18.25 | 215.49 | 0.4975 | -496.0 | -428.0 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -23.60 | 78.57 | 17.79 | 214.42 | 0.4973 | -383.0 | -344.4 | |
| 0.00 | 8.45 | 0.00 | 4.81 | -23.38 | 78.44 | 17.65 | 214.51 | 0.4934 | -718.0 | -669.4 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -19.74 | 77.99 | 17.20 | 218.81 | 0.4461 | -464.0 | -323.0 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -24.94 | 78.63 | 17.84 | 212.89 | 0.5138 | -693.0 | -479.5 | |
| 0.00 | 1.79 | 0.00 | 1.01 | -21.90 | 78.18 | 17.39 | 216.04 | 0.4734 | -473.0 | -362.0 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -23.86 | 78.34 | 17.55 | 213.75 | 0.4984 | -451.0 | -368.3 | |
| 1.62 | 241.16 | 0.89 | 132.82 | -19.48 | 77.64 | 16.85 | 218.63 | 0.4396 | -813.8 | -498.8 | |
| 0.94 | -55.00 | 0.52 | -55.00 | -19.70 | 77.36 | 16.58 | 217.86 | 0.4395 | -914.2 | 999999 | |
| 1.79 | 25.61 | 1.01 | 14.34 | -22.31 | 77.56 | 16.78 | 214.54 | 0.4729 | -768.0 | -498.7 | |
| 2.39 | -55.00 | 1.32 | -55.00 | -20.02 | 77.30 | 16.51 | 217.29 | 0.4427 | -952.4 | 999999 | |
| 2.82 | -57.00 | 1.58 | -57.00 | -22.15 | 77.51 | 16.72 | 214.67 | 0.4705 | -863.2 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -22.66 | 77.37 | 16.59 | 213.80 | 0.4755 | -575.0 | -463.5 | |
| 4.52 | -57.00 | 2.53 | -57.00 | -22.05 | 77.23 | 16.45 | 214.36 | 0.4668 | -963.2 | 999999 | |
| 1.88 | -57.00 | 1.05 | -57.00 | -21.86 | 77.21 | 16.42 | 214.58 | 0.4643 | -962.8 | 999999 | |
| 5.29 | -55.00 | 2.93 | -55.00 | -20.87 | 77.03 | 16.24 | 215.63 | 0.4505 | -957.2 | 999999 | |
| 3.93 | -55.00 | 2.16 | -55.00 | -19.98 | 76.94 | 16.15 | 216.74 | 0.4389 | -1029.3 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -21.19 | 77.07 | 16.28 | 215.25 | 0.4548 | -473.0 | -455.8 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -25.26 | 77.58 | 16.80 | 211.00 | 0.5094 | -564.0 | -472.5 | |
| 12.46 | -55.00 | 6.84 | -55.00 | -19.61 | 76.86 | 16.08 | 217.17 | 0.4336 | -1111.4 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -22.60 | 77.20 | 16.41 | 213.60 | 0.4732 | -446.0 | -384.1 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -24.84 | 77.46 | 16.67 | 211.30 | 0.5031 | -642.0 | -553.3 | |
| 10.24 | -55.00 | 5.61 | -55.00 | -19.17 | 76.75 | 15.97 | 217.65 | 0.4272 | -1283.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -23.37 | 77.19 | 16.41 | 212.63 | 0.4828 | -498.0 | -498.9 | |
| 2.90 | -55.00 | 1.60 | -55.00 | -20.11 | 76.79 | 16.00 | 216.30 | 0.4390 | -994.1 | 999999 | |
| 3.24 | -55.00 | 1.79 | -55.00 | -20.49 | 76.73 | 15.94 | 215.67 | 0.4431 | -988.9 | 999999 | |
| 0.00 | 3.16 | 0.00 | 1.77 | -22.24 | 76.92 | 16.14 | 213.62 | 0.4665 | -782.0 | -669.6 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -22.44 | 76.91 | 16.12 | 213.36 | 0.4688 | -712.0 | -514.9 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -24.25 | 77.14 | 16.35 | 211.50 | 0.4933 | -556.0 | -485.1 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -25.33 | 77.18 | 16.40 | 210.34 | 0.5071 | -746.0 | -593.5 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -23.60 | 76.92 | 16.13 | 211.94 | 0.4834 | -849.0 | -712.3 | |
| 0.00 | 2.22 | 0.00 | 1.23 | -21.44 | 76.60 | 15.81 | 214.15 | 0.4537 | -834.0 | -715.1 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -22.08 | 76.67 | 15.88 | 213.43 | 0.4623 | -815.0 | -667.2 | |
| 0.00 | 2.48 | 0.00 | 1.38 | -21.67 | 76.59 | 15.80 | 213.84 | 0.4564 | -751.0 | -706.9 | |
| 0.51 | 2.13 | 0.29 | 1.19 | -22.56 | 76.66 | 15.87 | 212.80 | 0.4683 | -824.2 | -677.5 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -20.20 | 76.40 | 15.61 | 215.53 | 0.4366 | -397.0 | -558.5 | |
| 0.00 | 2.30 | 0.00 | 1.26 | -19.60 | 76.34 | 15.55 | 216.29 | 0.4286 | -296.0 | -339.4 | |
| 0.00 | 2.05 | 0.00 | 1.14 | -22.34 | 76.54 | 15.75 | 212.88 | 0.4644 | -988.0 | -789.9 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -21.79 | 76.37 | 15.59 | 213.32 | 0.4562 | -854.0 | -798.0 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -21.38 | 76.33 | 15.54 | 213.79 | 0.4506 | -839.0 | -583.6 | |
| 1.71 | -55.00 | 0.94 | -55.00 | -20.93 | 76.25 | 15.46 | 214.25 | 0.4443 | -1123.9 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -23.89 | 76.45 | 15.67 | 210.86 | 0.4833 | -628.0 | -607.2 | |
| 0.00 | 2.99 | 0.00 | 1.66 | -21.89 | 76.19 | 15.40 | 212.88 | 0.4558 | -680.0 | -572.9 | |
| 2.73 | -55.00 | 1.51 | -55.00 | -21.06 | 76.03 | 15.24 | 213.72 | 0.4439 | -1015.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.34 | 75.83 | 15.04 | 212.99 | 0.4458 | -903.0 | -687.4 | |
| 0.00 | 1.96 | 0.00 | 1.09 | -21.82 | 75.88 | 15.09 | 212.46 | 0.4524 | -685.0 | -620.3 | |
| 0.00 | 5.29 | 0.00 | 2.93 | -21.72 | 75.54 | 14.76 | 212.01 | 0.4483 | -684.0 | -654.5 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -21.69 | 74.62 | 13.83 | 210.44 | 0.4403 | -851.0 | -737.0 | |
| 0.00 | 2.99 | 0.00 | 1.63 | -20.58 | 74.42 | 13.63 | 211.51 | 0.4240 | -830.0 | -567.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
