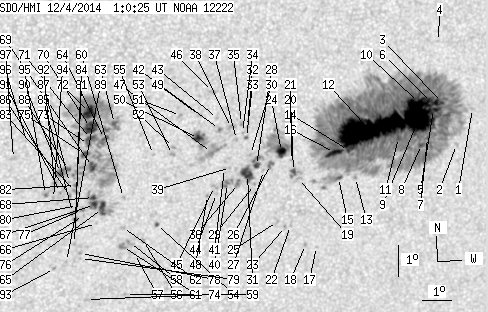

SDO HMI 2014-12-04 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 290.79 | 1611.66 | 169.11 | 936.34 | -19.90 | 84.29 | 24.05 | 227.23 | 0.5218 | 500.3 | 178.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-04 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.67 | -19.09 | 89.80 | 29.57 | 234.34 | 0.5761 | -70.0 | 20.7 | |
| 0.00 | 2.13 | 0.00 | 1.30 | -20.22 | 89.45 | 29.22 | 232.37 | 0.5806 | 222.0 | 85.4 | |
| 0.26 | 1073.30 | 0.15 | 634.23 | -18.89 | 88.69 | 28.46 | 233.67 | 0.5617 | 810.7 | 393.8 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -16.99 | 88.22 | 27.98 | 236.24 | 0.5419 | -461.0 | -300.2 | |
| 3.07 | -3.00 | 1.83 | -3.00 | -19.11 | 88.41 | 28.18 | 233.09 | 0.5602 | 847.2 | 999999 | |
| 7.26 | -3.00 | 4.32 | -3.00 | -18.89 | 88.30 | 28.06 | 233.33 | 0.5572 | 970.1 | 999999 | |
| 1.02 | -3.00 | 0.61 | -3.00 | -19.99 | 88.37 | 28.13 | 231.73 | 0.5665 | 542.0 | 999999 | |
| 2.90 | -3.00 | 1.74 | -3.00 | -20.21 | 88.19 | 27.96 | 231.25 | 0.5663 | 574.6 | 999999 | |
| 47.81 | -3.00 | 28.46 | -3.00 | -19.42 | 87.94 | 27.70 | 232.19 | 0.5571 | 1280.6 | 999999 | |
| 14.26 | -3.00 | 8.45 | -3.00 | -18.89 | 87.84 | 27.60 | 232.91 | 0.5518 | 1281.8 | 999999 | |
| 1.62 | -3.00 | 0.96 | -3.00 | -19.99 | 87.33 | 27.10 | 230.77 | 0.5548 | 543.8 | 999999 | |
| 117.98 | -3.00 | 69.35 | -3.00 | -19.73 | 86.27 | 26.03 | 230.11 | 0.5406 | 1477.4 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.96 | -21.25 | 86.05 | 25.81 | 227.64 | 0.5514 | 591.0 | 458.0 | |
| 0.26 | -3.00 | 0.15 | -3.00 | -20.39 | 85.65 | 25.41 | 228.48 | 0.5394 | 857.0 | 999999 | |
| 1.45 | -3.00 | 0.86 | -3.00 | -21.24 | 85.45 | 25.22 | 227.02 | 0.5450 | 514.4 | 999999 | |
| 7.34 | -3.00 | 4.30 | -3.00 | -20.45 | 85.17 | 24.93 | 227.88 | 0.5347 | 992.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -23.45 | 85.10 | 24.86 | 223.55 | 0.5620 | 549.0 | 456.2 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -23.39 | 84.70 | 24.46 | 223.20 | 0.5573 | 632.0 | 429.2 | |
| 0.00 | 2.73 | 0.00 | 1.59 | -21.27 | 84.06 | 23.82 | 225.45 | 0.5303 | -630.0 | -478.4 | |
| 1.71 | 7.94 | 0.99 | 4.62 | -21.04 | 83.85 | 23.61 | 225.54 | 0.5259 | -898.3 | -475.6 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -20.69 | 83.72 | 23.49 | 225.90 | 0.5212 | -634.0 | -406.9 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -22.77 | 84.05 | 23.81 | 223.32 | 0.5448 | 637.0 | 554.5 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -22.80 | 83.88 | 23.64 | 223.08 | 0.5434 | 789.0 | 698.3 | |
| 6.83 | 52.85 | 3.94 | 30.38 | -20.41 | 83.33 | 23.10 | 225.88 | 0.5143 | 989.6 | 351.6 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -22.64 | 83.57 | 23.33 | 222.95 | 0.5387 | 712.0 | 652.3 | |
| 1.45 | 4.61 | 0.84 | 2.66 | -20.82 | 83.02 | 22.78 | 224.90 | 0.5149 | 733.4 | 546.1 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -21.01 | 82.81 | 22.57 | 224.37 | 0.5146 | 661.0 | 447.9 | |
| 2.31 | 23.73 | 1.33 | 13.64 | -20.85 | 82.55 | 22.31 | 224.28 | 0.5102 | 887.2 | 749.6 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -21.45 | 82.57 | 22.34 | 223.43 | 0.5166 | 587.0 | 405.4 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -20.50 | 82.29 | 22.05 | 224.48 | 0.5040 | 720.0 | 590.2 | |
| 9.56 | -28.00 | 5.50 | -28.00 | -21.13 | 82.28 | 22.05 | 223.54 | 0.5103 | 964.4 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -19.61 | 82.06 | 21.82 | 225.53 | 0.4926 | -566.0 | -429.4 | |
| 0.51 | 1.71 | 0.29 | 0.97 | -19.96 | 82.07 | 21.83 | 225.02 | 0.4963 | 753.0 | 634.5 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -19.80 | 81.91 | 21.68 | 225.06 | 0.4930 | 499.0 | 554.8 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -19.51 | 81.84 | 21.60 | 225.41 | 0.4893 | -714.0 | -629.4 | |
| 0.00 | 4.10 | 0.00 | 2.36 | -21.42 | 82.02 | 21.78 | 222.80 | 0.5105 | 736.0 | 609.4 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -20.02 | 81.74 | 21.51 | 224.51 | 0.4933 | 199.0 | 279.1 | |
| 0.00 | 3.93 | 0.00 | 2.22 | -19.64 | 81.52 | 21.28 | 224.81 | 0.4871 | -549.0 | -393.0 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -20.90 | 81.67 | 21.43 | 223.10 | 0.5016 | 463.0 | 426.7 | |
| 0.00 | 7.94 | 0.00 | 4.55 | -21.41 | 81.64 | 21.41 | 222.33 | 0.5067 | 876.0 | 732.1 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -20.93 | 81.47 | 21.23 | 222.80 | 0.4999 | 612.0 | 489.8 | |
| 0.00 | 2.39 | 0.00 | 1.35 | -19.70 | 81.12 | 20.89 | 224.20 | 0.4835 | -751.0 | -569.5 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -19.35 | 81.01 | 20.77 | 224.59 | 0.4787 | -893.0 | -710.6 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -21.73 | 81.32 | 21.08 | 221.46 | 0.5067 | 574.0 | 433.8 | |
| 0.00 | 2.82 | 0.00 | 1.61 | -21.51 | 81.21 | 20.98 | 221.64 | 0.5033 | 679.0 | 576.8 | |
| 0.00 | 1.96 | 0.00 | 1.10 | -18.51 | 80.74 | 20.50 | 225.57 | 0.4670 | -707.0 | -692.6 | |
| 0.00 | 16.90 | 0.00 | 9.59 | -20.43 | 80.96 | 20.72 | 222.88 | 0.4892 | 272.0 | 229.7 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -21.79 | 81.02 | 20.78 | 220.98 | 0.5044 | 669.0 | 568.0 | |
| 0.00 | 2.13 | 0.00 | 1.20 | -19.26 | 80.40 | 20.16 | 223.91 | 0.4711 | -815.0 | -657.7 | |
| 4.95 | 16.48 | 2.79 | 9.29 | -19.98 | 80.46 | 20.22 | 222.88 | 0.4794 | -993.1 | -421.0 | |
| 0.00 | 1.79 | 0.00 | 1.00 | -19.25 | 79.76 | 19.53 | 223.04 | 0.4643 | -830.0 | -659.0 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -20.26 | 79.66 | 19.42 | 221.35 | 0.4741 | -864.0 | -761.2 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -20.48 | 79.65 | 19.42 | 221.02 | 0.4765 | -814.0 | -696.7 | |
| 0.77 | 1.71 | 0.44 | 0.97 | -22.71 | 79.42 | 19.18 | 217.56 | 0.4993 | -663.4 | -566.5 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -20.48 | 79.02 | 18.78 | 220.11 | 0.4701 | 603.0 | 544.2 | |
| 0.00 | 2.05 | 0.00 | 1.17 | -23.23 | 79.06 | 18.82 | 216.38 | 0.5018 | -671.0 | -581.9 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -23.65 | 78.81 | 18.57 | 215.50 | 0.5045 | -595.0 | -469.7 | |
| 0.00 | 3.16 | 0.00 | 1.80 | -23.29 | 78.59 | 18.35 | 215.63 | 0.4984 | -800.0 | -640.9 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -24.98 | 78.70 | 18.47 | 213.72 | 0.5194 | -705.0 | -485.5 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -21.84 | 78.19 | 17.95 | 216.96 | 0.4778 | -492.0 | -390.2 | |
| 0.00 | 4.10 | 0.00 | 2.34 | -23.42 | 78.37 | 18.13 | 215.16 | 0.4980 | -796.0 | -718.8 | |
| 0.00 | 2.39 | 0.00 | 1.36 | -22.81 | 78.28 | 18.05 | 215.82 | 0.4900 | -685.0 | -543.7 | |
| 1.62 | 269.43 | 0.90 | 148.82 | -19.49 | 77.61 | 17.37 | 219.46 | 0.4448 | -896.3 | -485.0 | |
| 1.71 | -63.00 | 0.94 | -63.00 | -19.97 | 77.33 | 17.10 | 218.31 | 0.4476 | -887.7 | 999999 | |
| 5.98 | 34.66 | 3.36 | 19.47 | -22.19 | 77.53 | 17.30 | 215.51 | 0.4759 | -807.4 | -412.2 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -22.67 | 77.39 | 17.16 | 214.66 | 0.4805 | -587.0 | -483.9 | |
| 2.99 | -65.00 | 1.68 | -65.00 | -22.06 | 77.25 | 17.01 | 215.24 | 0.4719 | -993.9 | 999999 | |
| 1.79 | -65.00 | 1.00 | -65.00 | -21.84 | 77.19 | 16.95 | 215.45 | 0.4686 | -1015.3 | 999999 | |
| 4.78 | -63.00 | 2.66 | -63.00 | -20.85 | 77.04 | 16.80 | 216.57 | 0.4553 | -967.9 | 999999 | |
| 11.78 | -63.00 | 6.49 | -63.00 | -19.62 | 76.84 | 16.60 | 218.03 | 0.4386 | -1112.2 | 999999 | |
| 4.70 | -63.00 | 2.59 | -63.00 | -19.96 | 76.87 | 16.64 | 217.58 | 0.4431 | -1029.8 | 999999 | |
| 12.29 | -63.00 | 6.75 | -63.00 | -19.14 | 76.76 | 16.52 | 218.61 | 0.4322 | -1284.6 | 999999 | |
| 1.71 | -63.00 | 0.94 | -63.00 | -20.15 | 76.83 | 16.59 | 217.23 | 0.4450 | -1034.9 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.08 | -25.14 | 77.39 | 17.15 | 211.67 | 0.5106 | -698.0 | -574.2 | |
| 2.82 | -63.00 | 1.56 | -63.00 | -20.47 | 76.73 | 16.49 | 216.62 | 0.4479 | -1019.6 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -22.41 | 76.93 | 16.69 | 214.28 | 0.4733 | -700.0 | -568.2 | |
| 0.00 | 2.48 | 0.00 | 1.39 | -22.22 | 76.87 | 16.63 | 214.44 | 0.4704 | -852.0 | -750.9 | |
| 0.00 | 1.28 | 0.00 | 0.73 | -23.64 | 76.98 | 16.74 | 212.83 | 0.4888 | -868.0 | -724.6 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -23.80 | 77.00 | 16.76 | 212.66 | 0.4910 | -758.0 | -602.0 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -22.09 | 76.69 | 16.45 | 214.32 | 0.4673 | -779.0 | -636.6 | |
| 0.60 | 2.22 | 0.34 | 1.25 | -22.54 | 76.67 | 16.44 | 213.72 | 0.4727 | -797.3 | -652.7 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -21.45 | 76.55 | 16.31 | 214.95 | 0.4581 | -899.0 | -786.9 | |
| 0.00 | 2.56 | 0.00 | 1.43 | -21.64 | 76.57 | 16.33 | 214.73 | 0.4607 | -764.0 | -692.8 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -23.32 | 76.74 | 16.50 | 212.85 | 0.4828 | -509.0 | -471.6 | |
| 0.00 | 2.13 | 0.00 | 1.20 | -22.32 | 76.55 | 16.31 | 213.81 | 0.4688 | -894.0 | -736.0 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -21.80 | 76.42 | 16.18 | 214.28 | 0.4614 | -879.0 | -751.1 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -21.36 | 76.34 | 16.10 | 214.74 | 0.4551 | -810.0 | -615.9 | |
| 1.37 | -63.00 | 0.76 | -63.00 | -20.94 | 76.26 | 16.02 | 215.18 | 0.4493 | -1169.1 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -23.90 | 76.54 | 16.30 | 211.85 | 0.4884 | -784.0 | -671.6 | |
| 2.99 | -63.00 | 1.65 | -63.00 | -21.04 | 76.00 | 15.77 | 214.63 | 0.4482 | -1021.5 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -21.67 | 76.07 | 15.84 | 213.89 | 0.4567 | -832.0 | -749.8 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -21.35 | 75.84 | 15.60 | 213.93 | 0.4507 | -887.0 | -733.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -24.12 | 76.17 | 15.93 | 211.01 | 0.4883 | -754.0 | -621.7 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -21.86 | 75.86 | 15.63 | 213.30 | 0.4573 | -805.0 | -589.0 | |
| 0.34 | 2.56 | 0.19 | 1.42 | -21.74 | 75.59 | 15.35 | 213.00 | 0.4533 | -794.8 | -697.5 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -20.02 | 74.79 | 14.55 | 213.95 | 0.4246 | -695.0 | -550.6 | |
| 0.00 | 2.90 | 0.00 | 1.59 | -20.59 | 74.42 | 14.18 | 212.51 | 0.4287 | -841.0 | -605.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
