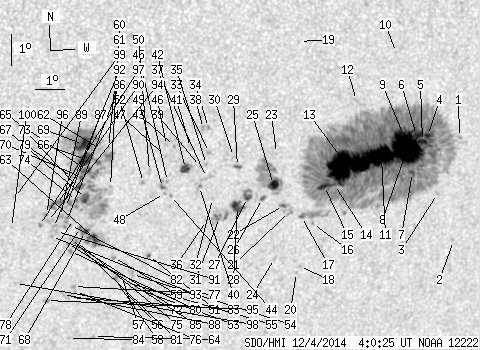

SDO HMI 2014-12-04 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 281.28 | 1561.11 | 166.13 | 921.09 | -19.87 | 84.58 | 25.98 | 229.45 | 0.5425 | 493.1 | 173.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-04 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.15 | -18.97 | 89.71 | 31.11 | 235.80 | 0.5931 | -158.0 | -115.5 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -22.24 | 90.23 | 31.64 | 231.56 | 0.6222 | -626.0 | -437.6 | |
| 0.00 | 1.88 | 0.00 | 1.16 | -20.73 | 89.28 | 30.69 | 232.89 | 0.6007 | -175.0 | -159.3 | |
| 2.22 | 1100.86 | 1.35 | 660.09 | -18.90 | 88.53 | 29.94 | 234.96 | 0.5789 | 829.4 | 373.1 | |
| 3.67 | -4.00 | 2.23 | -4.00 | -19.09 | 88.39 | 29.79 | 234.56 | 0.5786 | 865.3 | 999999 | |
| 7.51 | -4.00 | 4.54 | -4.00 | -18.90 | 88.13 | 29.54 | 234.63 | 0.5742 | 1108.1 | 999999 | |
| 3.07 | -4.00 | 1.87 | -4.00 | -20.06 | 88.22 | 29.63 | 232.98 | 0.5838 | 616.0 | 999999 | |
| 52.52 | -4.00 | 31.72 | -4.00 | -19.37 | 87.87 | 29.27 | 233.70 | 0.5746 | 1311.9 | 999999 | |
| 11.95 | -4.00 | 7.18 | -4.00 | -18.86 | 87.66 | 29.07 | 234.28 | 0.5684 | 1365.1 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -16.31 | 86.97 | 28.38 | 237.71 | 0.5417 | 786.0 | 650.4 | |
| 35.61 | -4.00 | 21.35 | -4.00 | -19.55 | 87.00 | 28.41 | 232.67 | 0.5660 | 1418.9 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.05 | -17.79 | 85.81 | 27.22 | 234.30 | 0.5384 | 354.0 | 326.1 | |
| 85.31 | -4.00 | 50.71 | -4.00 | -19.83 | 85.85 | 27.25 | 231.19 | 0.5550 | 1507.2 | 999999 | |
| 0.26 | -4.00 | 0.15 | -4.00 | -20.42 | 85.50 | 26.91 | 229.97 | 0.5561 | 972.7 | 999999 | |
| 5.72 | -4.00 | 3.39 | -4.00 | -20.49 | 85.16 | 26.56 | 229.54 | 0.5528 | 1048.7 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.61 | -21.66 | 84.96 | 26.36 | 227.64 | 0.5608 | -328.0 | -149.9 | |
| 0.94 | -4.00 | 0.56 | -4.00 | -21.43 | 84.52 | 25.93 | 227.52 | 0.5541 | -607.4 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.77 | -23.04 | 84.77 | 26.18 | 225.53 | 0.5712 | 707.0 | 553.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -15.95 | 83.57 | 24.98 | 235.18 | 0.4967 | 654.0 | 531.5 | |
| 0.00 | 1.02 | 0.00 | 0.62 | -23.23 | 84.71 | 26.11 | 225.20 | 0.5722 | 551.0 | 503.0 | |
| 0.00 | 3.42 | 0.00 | 2.02 | -21.27 | 84.07 | 25.48 | 227.28 | 0.5478 | -269.0 | -271.3 | |
| 0.94 | 5.81 | 0.55 | 3.42 | -21.08 | 83.83 | 25.23 | 227.30 | 0.5434 | -887.8 | -599.1 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -19.43 | 83.30 | 24.71 | 229.20 | 0.5228 | -627.0 | -526.7 | |
| 0.00 | 1.79 | 0.00 | 1.07 | -22.78 | 83.83 | 25.23 | 224.90 | 0.5590 | 638.0 | 549.0 | |
| 8.28 | 53.20 | 4.84 | 30.98 | -20.41 | 83.36 | 24.76 | 227.78 | 0.5322 | 1024.9 | 334.5 | |
| 1.02 | 2.48 | 0.60 | 1.45 | -20.85 | 83.05 | 24.46 | 226.79 | 0.5330 | 661.8 | 539.3 | |
| 3.42 | 8.03 | 1.99 | 4.67 | -20.82 | 82.53 | 23.93 | 226.26 | 0.5270 | 914.4 | 768.8 | |
| 8.28 | 12.47 | 4.82 | 7.25 | -21.10 | 82.23 | 23.63 | 225.50 | 0.5265 | 933.4 | 612.2 | |
| 1.20 | 2.73 | 0.69 | 1.57 | -19.84 | 82.02 | 23.43 | 227.15 | 0.5122 | 776.6 | 727.1 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -19.52 | 81.84 | 23.24 | 227.42 | 0.5072 | -545.0 | -408.4 | |
| 0.00 | 12.64 | 0.00 | 7.34 | -21.45 | 81.66 | 23.07 | 224.34 | 0.5239 | 755.0 | 558.1 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -20.84 | 81.32 | 22.73 | 224.82 | 0.5144 | 660.0 | 529.4 | |
| 0.00 | 2.22 | 0.00 | 1.27 | -19.39 | 81.00 | 22.41 | 226.63 | 0.4966 | -772.0 | -588.8 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -18.61 | 80.86 | 22.26 | 227.70 | 0.4875 | -785.0 | -652.4 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -19.77 | 80.95 | 22.36 | 225.99 | 0.4998 | -761.0 | -534.6 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -21.54 | 81.23 | 22.64 | 223.69 | 0.5203 | 699.0 | 509.4 | |
| 0.00 | 5.47 | 0.00 | 3.13 | -20.18 | 81.01 | 22.42 | 225.44 | 0.5045 | 166.0 | 293.3 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -18.64 | 80.69 | 22.10 | 227.45 | 0.4859 | -914.0 | -724.0 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -19.83 | 80.76 | 22.17 | 225.66 | 0.4983 | -474.0 | -470.2 | |
| 0.00 | 2.31 | 0.00 | 1.32 | -20.46 | 80.82 | 22.23 | 224.78 | 0.5052 | 549.0 | 424.1 | |
| 0.00 | 2.99 | 0.00 | 1.69 | -19.23 | 80.34 | 21.74 | 226.06 | 0.4877 | -784.0 | -536.5 | |
| 5.38 | 8.45 | 3.06 | 4.81 | -19.89 | 80.26 | 21.67 | 224.94 | 0.4935 | -1011.6 | -680.5 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -19.20 | 79.79 | 21.20 | 225.42 | 0.4814 | -863.0 | -759.1 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -20.74 | 79.87 | 21.28 | 223.17 | 0.4981 | -609.0 | -520.0 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -20.30 | 79.71 | 21.11 | 223.62 | 0.4918 | -852.0 | -700.2 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -19.16 | 79.52 | 20.93 | 225.12 | 0.4781 | -717.0 | -626.3 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -19.51 | 79.53 | 20.94 | 224.59 | 0.4818 | -764.0 | -660.2 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -20.68 | 79.66 | 21.07 | 222.99 | 0.4952 | -732.0 | -598.0 | |
| 0.60 | 4.10 | 0.34 | 2.33 | -20.49 | 79.57 | 20.97 | 223.15 | 0.4923 | -872.7 | -729.0 | |
| 0.00 | 3.07 | 0.00 | 1.74 | -19.98 | 79.06 | 20.46 | 223.24 | 0.4816 | -463.0 | -435.8 | |
| 0.68 | 1.37 | 0.39 | 0.79 | -22.66 | 79.42 | 20.82 | 219.87 | 0.5138 | -679.5 | -655.4 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -20.33 | 78.90 | 20.31 | 222.51 | 0.4837 | 840.0 | 547.8 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -23.72 | 79.14 | 20.55 | 218.10 | 0.5228 | -494.0 | -366.9 | |
| 0.00 | 2.90 | 0.00 | 1.68 | -23.27 | 78.96 | 20.37 | 218.46 | 0.5162 | -644.0 | -500.2 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -23.56 | 78.91 | 20.31 | 218.01 | 0.5189 | -546.0 | -429.2 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -23.75 | 78.66 | 20.07 | 217.44 | 0.5188 | -610.0 | -536.2 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -23.30 | 78.59 | 20.00 | 217.93 | 0.5131 | -709.0 | -615.7 | |
| 0.00 | 2.39 | 0.00 | 1.38 | -23.43 | 78.41 | 19.81 | 217.51 | 0.5128 | -817.0 | -681.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -22.71 | 78.23 | 19.64 | 218.21 | 0.5032 | -711.0 | -642.9 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -20.45 | 77.81 | 19.22 | 220.82 | 0.4738 | -387.0 | -281.2 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -19.22 | 77.59 | 19.00 | 222.38 | 0.4581 | -596.0 | -578.5 | |
| 0.00 | 2.05 | 0.00 | 1.14 | -19.28 | 77.34 | 18.74 | 221.90 | 0.4560 | -207.0 | -242.3 | |
| 3.59 | 27.58 | 2.03 | 15.63 | -22.10 | 77.50 | 18.90 | 218.02 | 0.4894 | -895.7 | -511.5 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -25.28 | 77.95 | 19.35 | 214.59 | 0.5299 | -657.0 | -561.3 | |
| 3.93 | 131.84 | 2.19 | 73.13 | -19.94 | 76.95 | 18.36 | 220.32 | 0.4594 | -1018.3 | -617.9 | |
| 11.44 | -65.00 | 6.36 | -65.00 | -19.59 | 76.88 | 18.28 | 220.74 | 0.4548 | -1112.0 | 999999 | |
| 5.12 | 70.36 | 2.87 | 39.51 | -20.82 | 77.03 | 18.43 | 219.13 | 0.4703 | -938.8 | -306.1 | |
| 1.88 | -63.00 | 1.06 | -63.00 | -21.88 | 77.16 | 18.57 | 217.85 | 0.4836 | -966.2 | 999999 | |
| 12.89 | -65.00 | 7.14 | -65.00 | -19.12 | 76.76 | 18.16 | 221.29 | 0.4482 | -1249.9 | 999999 | |
| 1.20 | -65.00 | 0.67 | -65.00 | -20.16 | 76.81 | 18.22 | 219.79 | 0.4606 | -1012.9 | 999999 | |
| 0.43 | -63.00 | 0.24 | -63.00 | -21.75 | 76.98 | 18.39 | 217.76 | 0.4804 | -910.8 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.11 | -22.39 | 77.03 | 18.44 | 216.97 | 0.4883 | -595.0 | -563.6 | |
| 1.79 | -67.00 | 1.00 | -67.00 | -20.47 | 76.75 | 18.16 | 219.23 | 0.4636 | -990.7 | 999999 | |
| 0.43 | -67.00 | 0.24 | -67.00 | -20.89 | 76.73 | 18.14 | 218.61 | 0.4681 | -972.2 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.45 | -22.19 | 76.87 | 18.28 | 216.99 | 0.4846 | -920.0 | -743.3 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -23.81 | 77.10 | 18.50 | 215.22 | 0.5055 | -738.0 | -601.8 | |
| 0.00 | 1.79 | 0.00 | 1.03 | -23.65 | 77.01 | 18.41 | 215.30 | 0.5028 | -856.0 | -690.7 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -21.49 | 76.71 | 18.12 | 217.72 | 0.4749 | -561.0 | -540.5 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -20.16 | 76.51 | 17.92 | 219.34 | 0.4576 | -927.0 | -692.4 | |
| 0.00 | 1.96 | 0.00 | 1.11 | -22.51 | 76.75 | 18.15 | 216.38 | 0.4872 | -832.0 | -653.9 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -22.10 | 76.69 | 18.10 | 216.86 | 0.4818 | -832.0 | -663.3 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -21.68 | 76.64 | 18.04 | 217.34 | 0.4764 | -708.0 | -598.0 | |
| 0.00 | 2.48 | 0.00 | 1.42 | -24.00 | 76.92 | 18.33 | 214.73 | 0.5062 | -625.0 | -544.2 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -25.34 | 77.09 | 18.50 | 213.36 | 0.5235 | -689.0 | -480.8 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -22.26 | 76.61 | 18.02 | 216.53 | 0.4829 | -822.0 | -801.2 | |
| 0.00 | 4.27 | 0.00 | 2.40 | -21.55 | 76.49 | 17.89 | 217.30 | 0.4735 | -883.0 | -813.1 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -21.11 | 76.40 | 17.80 | 217.79 | 0.4675 | -861.0 | -765.6 | |
| 0.00 | 2.13 | 0.00 | 1.22 | -23.90 | 76.67 | 18.07 | 214.49 | 0.5029 | -721.0 | -585.5 | |
| 0.00 | 2.56 | 0.00 | 1.44 | -21.39 | 76.26 | 17.67 | 217.19 | 0.4696 | -800.0 | -706.6 | |
| 0.00 | 8.62 | 0.00 | 4.81 | -21.01 | 76.09 | 17.49 | 217.45 | 0.4634 | -1141.0 | -944.6 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -21.87 | 76.19 | 17.60 | 216.42 | 0.4745 | -705.0 | -577.6 | |
| 0.00 | 2.90 | 0.00 | 1.63 | -21.74 | 76.07 | 17.48 | 216.42 | 0.4720 | -760.0 | -626.1 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -22.03 | 76.04 | 17.45 | 215.98 | 0.4751 | -670.0 | -581.6 | |
| 0.00 | 2.31 | 0.00 | 1.29 | -21.55 | 75.85 | 17.26 | 216.34 | 0.4676 | -734.0 | -745.9 | |
| 0.00 | 2.22 | 0.00 | 1.27 | -24.10 | 76.15 | 17.56 | 213.51 | 0.5008 | -788.0 | -770.1 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -21.33 | 75.79 | 17.20 | 216.55 | 0.4644 | -952.0 | -810.3 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -21.68 | 75.60 | 17.01 | 215.78 | 0.4668 | -707.0 | -668.8 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -23.54 | 75.03 | 16.44 | 212.51 | 0.4847 | -104.0 | -122.2 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -20.78 | 74.67 | 16.08 | 215.52 | 0.4475 | -708.0 | -565.8 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -21.74 | 74.68 | 16.08 | 214.24 | 0.4593 | -680.0 | -526.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
