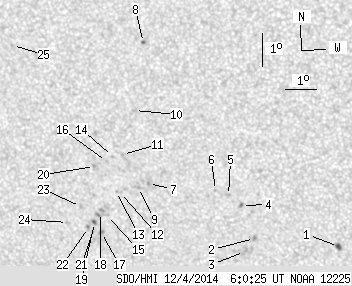

SDO HMI 2014-12-04 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.48 | 46.16 | 1.33 | 25.38 | -15.04 | 37.05 | -20.45 | 128.60 | 0.4339 | -320.1 | -158.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-04 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 3.07 | 0.82 | 1.65 | -16.35 | 42.62 | -14.88 | 139.58 | 0.3817 | 1111.0 | 843.8 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -16.10 | 39.95 | -17.55 | 134.54 | 0.4083 | 976.0 | 743.5 | |
| 0.00 | 8.71 | 0.00 | 4.74 | -16.51 | 39.59 | -17.91 | 134.70 | 0.4167 | 689.0 | 541.7 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -15.09 | 39.63 | -17.88 | 132.13 | 0.4014 | 868.0 | 771.3 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -14.78 | 39.23 | -18.27 | 130.94 | 0.4030 | 886.0 | 647.5 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -14.63 | 38.83 | -18.67 | 130.05 | 0.4064 | 766.0 | 670.4 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -14.42 | 36.67 | -20.83 | 126.70 | 0.4314 | -1082.0 | -880.0 | |
| 0.34 | 1.28 | 0.18 | 0.69 | -10.15 | 36.87 | -20.63 | 117.95 | 0.3943 | 872.2 | 766.9 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -14.54 | 36.33 | -21.17 | 126.52 | 0.4368 | -819.0 | -690.8 | |
| 0.00 | 1.96 | 0.00 | 1.07 | -12.20 | 36.42 | -21.08 | 121.93 | 0.4160 | -766.0 | -593.8 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -13.54 | 35.91 | -21.59 | 124.05 | 0.4336 | -807.0 | -619.3 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -14.70 | 35.73 | -21.78 | 126.07 | 0.4458 | -817.0 | -581.6 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -14.67 | 35.60 | -21.90 | 125.86 | 0.4472 | -777.0 | -632.1 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -13.60 | 35.58 | -21.92 | 123.78 | 0.4385 | -785.0 | -627.8 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -15.41 | 35.22 | -22.28 | 126.78 | 0.4583 | -361.0 | -332.0 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -13.75 | 35.37 | -22.14 | 123.84 | 0.4425 | -740.0 | -619.9 | |
| 0.00 | 2.22 | 0.00 | 1.24 | -15.93 | 34.96 | -22.54 | 127.41 | 0.4661 | -945.0 | -815.4 | |
| 0.00 | 4.01 | 0.00 | 2.24 | -15.31 | 35.00 | -22.50 | 126.35 | 0.4603 | -565.0 | -736.5 | |
| 0.60 | 1.79 | 0.33 | 1.00 | -15.62 | 34.76 | -22.74 | 126.64 | 0.4659 | -976.9 | -849.9 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -13.91 | 34.95 | -22.55 | 123.67 | 0.4491 | -702.0 | -582.8 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -15.93 | 34.66 | -22.84 | 127.07 | 0.4698 | -843.0 | -690.3 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -15.78 | 34.54 | -22.96 | 126.66 | 0.4699 | -850.0 | -739.7 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -15.13 | 34.35 | -23.15 | 125.29 | 0.4669 | -761.0 | -587.7 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -15.62 | 33.86 | -23.64 | 125.63 | 0.4772 | -647.0 | -586.3 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -10.25 | 32.59 | -24.91 | 114.11 | 0.4560 | -668.0 | -474.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
