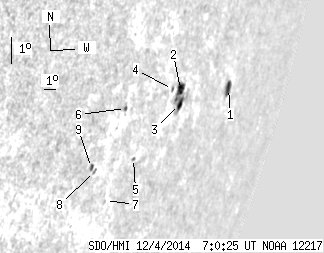

SDO HMI 2014-12-04 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.37 | 39.28 | 25.51 | 62.24 | -15.63 | 127.82 | 70.86 | 253.31 | 0.9499 | 127.0 | 89.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-04 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.78 | 8.11 | 9.69 | 16.42 | -15.23 | 132.19 | 75.23 | 254.16 | 0.9709 | 188.0 | 65.7 | |
| 5.21 | 22.03 | 7.94 | 33.87 | -15.21 | 127.14 | 70.18 | 253.72 | 0.9472 | 361.7 | 158.1 | |
| 3.59 | -2.00 | 5.56 | -2.00 | -15.68 | 127.41 | 70.45 | 253.26 | 0.9489 | -169.2 | 999999 | |
| 0.43 | 1.62 | 0.63 | 2.39 | -15.20 | 126.41 | 69.46 | 253.65 | 0.9432 | 292.8 | 268.7 | |
| 0.00 | 1.20 | 0.00 | 1.65 | -17.32 | 124.67 | 67.71 | 251.20 | 0.9347 | 341.0 | 215.2 | |
| 0.51 | 1.71 | 0.65 | 2.18 | -15.76 | 122.94 | 65.98 | 252.64 | 0.9227 | -201.2 | -149.1 | |
| 0.00 | 0.77 | 0.00 | 1.01 | -18.62 | 123.41 | 66.45 | 249.64 | 0.9283 | 329.0 | 289.4 | |
| 0.00 | 1.96 | 0.00 | 2.43 | -17.70 | 121.89 | 64.94 | 250.40 | 0.9178 | -378.0 | -321.6 | |
| 0.85 | 1.88 | 1.04 | 2.29 | -17.57 | 121.59 | 64.63 | 250.49 | 0.9157 | -458.3 | -388.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
