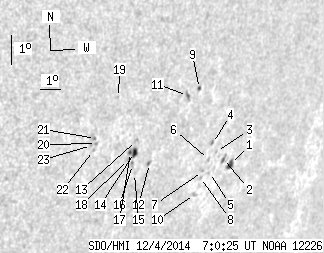

SDO HMI 2014-12-04 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.51 | 37.29 | 6.45 | 31.67 | -19.65 | 108.42 | 51.47 | 245.12 | 0.8136 | -2.9 | 50.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-04 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.99 | 4.78 | 2.74 | 4.38 | -20.11 | 111.59 | 54.63 | 245.54 | 0.8434 | 439.5 | 250.9 | |
| 0.00 | 2.90 | 0.00 | 2.63 | -19.92 | 111.11 | 54.15 | 245.63 | 0.8388 | 575.0 | 471.6 | |
| 0.00 | 0.51 | 0.00 | 0.46 | -19.69 | 110.62 | 53.67 | 245.75 | 0.8340 | 474.0 | 547.8 | |
| 0.00 | 1.28 | 0.00 | 1.13 | -19.44 | 110.29 | 53.33 | 245.95 | 0.8304 | 611.0 | 501.8 | |
| 0.00 | 0.34 | 0.00 | 0.31 | -20.35 | 110.58 | 53.62 | 244.97 | 0.8353 | 529.0 | 489.0 | |
| 0.00 | 1.45 | 0.00 | 1.29 | -19.94 | 110.32 | 53.36 | 245.38 | 0.8320 | 631.0 | 587.1 | |
| 0.00 | 0.77 | 0.00 | 0.68 | -20.32 | 110.19 | 53.23 | 244.90 | 0.8318 | 585.0 | 520.0 | |
| 0.00 | 1.02 | 0.00 | 0.91 | -20.51 | 110.18 | 53.22 | 244.67 | 0.8321 | 549.0 | 591.2 | |
| 0.68 | 1.62 | 0.58 | 1.37 | -17.70 | 108.85 | 51.90 | 247.60 | 0.8131 | 428.2 | 341.4 | |
| 0.00 | 1.88 | 0.00 | 1.67 | -21.05 | 110.13 | 53.18 | 244.03 | 0.8331 | 543.0 | 464.9 | |
| 0.51 | 2.99 | 0.43 | 2.50 | -17.92 | 108.34 | 51.38 | 247.19 | 0.8087 | 601.5 | 455.6 | |
| 0.00 | 1.96 | 0.00 | 1.63 | -20.04 | 107.34 | 50.39 | 244.34 | 0.8052 | -396.0 | -338.3 | |
| 0.00 | 1.62 | 0.00 | 1.32 | -19.31 | 106.39 | 49.44 | 244.90 | 0.7940 | -490.0 | -348.3 | |
| 2.73 | 6.06 | 2.22 | 4.93 | -19.69 | 106.45 | 49.50 | 244.47 | 0.7957 | -577.9 | -510.8 | |
| 0.00 | 0.94 | 0.00 | 0.77 | -20.35 | 106.74 | 49.78 | 243.76 | 0.8004 | -302.0 | -247.8 | |
| 0.00 | 2.13 | 0.00 | 1.74 | -20.07 | 106.52 | 49.56 | 244.03 | 0.7975 | -519.0 | -453.6 | |
| 0.60 | -14.00 | 0.48 | -14.00 | -19.69 | 106.26 | 49.30 | 244.40 | 0.7938 | -778.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.76 | -19.91 | 106.26 | 49.30 | 244.13 | 0.7945 | -557.0 | -525.1 | |
| 0.00 | 0.60 | 0.00 | 0.47 | -17.95 | 105.02 | 48.06 | 246.10 | 0.7763 | 491.0 | 349.1 | |
| 0.00 | 1.20 | 0.00 | 0.93 | -19.39 | 104.53 | 47.57 | 244.15 | 0.7759 | -544.0 | -508.3 | |
| 0.00 | 0.68 | 0.00 | 0.53 | -19.23 | 104.42 | 47.46 | 244.31 | 0.7743 | -724.0 | -694.5 | |
| 0.00 | 0.68 | 0.00 | 0.53 | -19.61 | 104.47 | 47.51 | 243.86 | 0.7761 | -601.0 | -517.9 | |
| 0.00 | 0.94 | 0.00 | 0.73 | -19.45 | 104.32 | 47.36 | 244.00 | 0.7741 | -809.0 | -693.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
