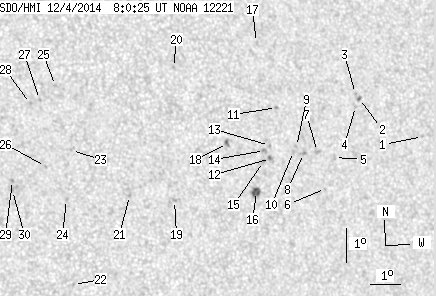

SDO HMI 2014-12-04 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.01 | 46.65 | 2.26 | 26.14 | 4.91 | 83.75 | 27.34 | 279.80 | 0.4657 | -131.9 | -146.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-04 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.67 | 5.28 | 90.41 | 34.00 | 278.70 | 0.5655 | -556.0 | -391.9 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 6.42 | 88.26 | 31.84 | 281.31 | 0.5368 | -830.0 | -696.9 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 6.57 | 88.13 | 31.71 | 281.62 | 0.5353 | -759.0 | -620.2 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 6.19 | 88.10 | 31.69 | 280.92 | 0.5340 | -653.0 | -517.0 | |
| 0.00 | 1.96 | 0.00 | 1.14 | 4.68 | 87.28 | 30.87 | 278.28 | 0.5188 | -579.0 | -443.1 | |
| 0.00 | 0.43 | 0.00 | 0.25 | 3.76 | 86.93 | 30.51 | 276.58 | 0.5121 | -602.0 | -534.0 | |
| 0.00 | 2.39 | 0.00 | 1.38 | 4.86 | 86.70 | 30.29 | 278.77 | 0.5106 | -843.0 | -689.3 | |
| 0.00 | 2.31 | 0.00 | 1.32 | 4.80 | 86.22 | 29.81 | 278.78 | 0.5033 | -967.0 | -778.4 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 5.01 | 85.99 | 29.58 | 279.25 | 0.5002 | -864.0 | -688.7 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 4.86 | 85.88 | 29.47 | 278.99 | 0.4983 | -781.0 | -586.6 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 6.17 | 85.37 | 28.96 | 281.76 | 0.4938 | 701.0 | 491.5 | |
| 0.00 | 1.71 | 0.00 | 0.97 | 4.66 | 85.09 | 28.68 | 278.79 | 0.4860 | -989.0 | -812.9 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 5.04 | 85.07 | 28.66 | 279.58 | 0.4865 | -757.0 | -613.2 | |
| 0.00 | 2.39 | 0.00 | 1.35 | 4.90 | 84.90 | 28.48 | 279.33 | 0.4836 | -872.0 | -783.7 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 4.57 | 84.85 | 28.44 | 278.67 | 0.4821 | -950.0 | -828.2 | |
| 4.01 | 6.32 | 2.26 | 3.55 | 3.68 | 84.58 | 28.16 | 276.89 | 0.4764 | -990.0 | -797.0 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 8.11 | 84.83 | 28.42 | 285.85 | 0.4918 | -575.0 | -531.3 | |
| 0.00 | 2.99 | 0.00 | 1.67 | 5.11 | 83.66 | 27.25 | 280.16 | 0.4653 | 792.0 | 643.4 | |
| 0.00 | 1.79 | 0.00 | 0.98 | 3.43 | 81.85 | 25.43 | 276.96 | 0.4337 | 826.0 | 674.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 7.37 | 82.00 | 25.58 | 285.77 | 0.4469 | -696.0 | -492.0 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 3.58 | 80.38 | 23.97 | 277.72 | 0.4109 | 710.0 | 558.6 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 0.96 | 78.53 | 22.12 | 271.38 | 0.3783 | 741.0 | 590.6 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 4.92 | 78.56 | 22.14 | 281.76 | 0.3853 | 724.0 | 509.9 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 3.47 | 78.35 | 21.94 | 278.08 | 0.3783 | 850.0 | 621.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 6.86 | 78.13 | 21.71 | 286.91 | 0.3856 | 874.0 | 660.8 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 4.45 | 77.71 | 21.30 | 280.93 | 0.3704 | 910.0 | 749.0 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 6.44 | 77.60 | 21.18 | 286.23 | 0.3756 | 847.0 | 664.7 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 6.32 | 77.30 | 20.89 | 286.12 | 0.3706 | 608.0 | 542.0 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 4.04 | 76.65 | 20.24 | 280.30 | 0.3523 | 896.0 | 723.6 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 3.75 | 76.64 | 20.23 | 279.47 | 0.3514 | 907.0 | 782.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
